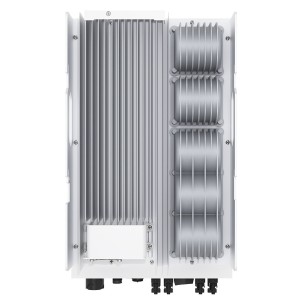

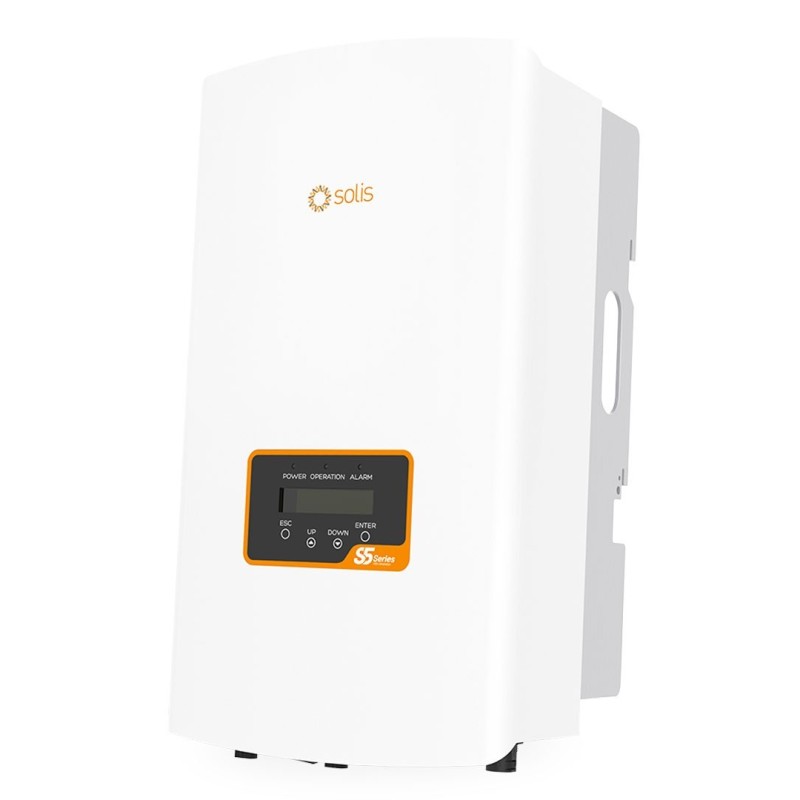

Solis S5-GR3P20K Three-phase inverter 20kW
The Solis S5-GR3P20K 20kW three-phase inverter is designed for residential PV and C&I systems. The 3/4 MPPT design can effectively reduce string mismatch, and the maximum input current per string is 16A, which is compatible with high-efficiency modules and double-sided modules. The protective level is increased to IP66. Built-in AFCI function can proactively reduce fire risk.
✓ Maximum efficiency 98.7%
✓ String current up to 16A
✓ IP66 degree of protection
✓ > 150% DC/AC ratio
✓ Supports RS485, Wi-Fi, GPRS
✓ Support output power control
✓ Compact design, simple installation and maintenance
✓ Wide operating range and low starting voltage
✓ AFCI proactively reduces fire risk
✓ Access SolisCloud with a simple scan, supports remote checks and upgrades
✓ Automatic voltage stabilization technology in case of bad grid conditions
✓ Supports new high power modules allowing reduction of installation costs
Technical specifications
DC input
Maximum recommended photovoltaic power: 30 kW
Absolute maximum voltage: 1100 V
Rated Voltage: 600V
Starting Voltage: 180V
MPPT voltage range: 200-1000V
Maximum input current: 32A/32A
Maximum short circuit current: 50A/50A
MPPT number: 2
Maximum number of strings: 4
AC output
Rated Output Power: 20 kW
Maximum apparent output power: 22 kVA
Maximum output power: 22 kW
Rated mains voltage: 3/N/PE, 220V/380V, 230V/400V
Rated Grid Frequency: 50-60Hz
Rated Mains Output Current: 30.4A/28.9A
Maximum output current: 31.8A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Efficiency
Maximum efficiency: 98.7%
EU efficiency: 98.1%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload Protection: Yes
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
Integrated DC switch: Optional
Integrated AC switch: Optional
Integrated AFCI (DC Arc Fault Circuit Protection): Yes (Activation Required)
General data
Dimensions (WxHxD): 310x563x219 mm
Weight: 20 kg
Topology: Without transformer
Self-consumption (night) (night): <1 W
Operating environment temperature range: -25 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Smart cooling with redundant fans
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard: G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Characteristics

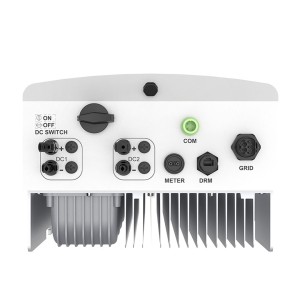

DC connection: MC4 connector
AC connection: Quick connect plug
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS
