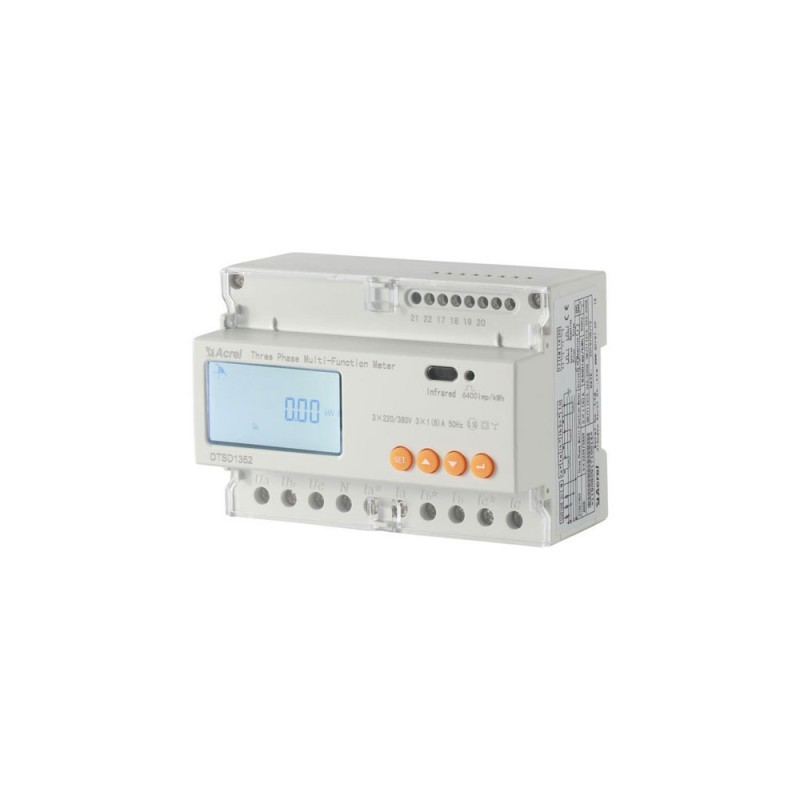

Solis-3P-Meter-CT-3 380V Three-phase meter for Solis string inverter with 3 CTs

Solis-3P-Meter-CT-3 380V Three-phase meter for Solis string inverter

Solis-3P-Meter-CT-3 is a device designed for energy measurement and monitoring in photovoltaic PV systems.

Real-time Energy Measurement
Solis-3P-Meter-CT-3 accurately measures the energy generated by the PV system in real-time. This allows users to monitor the precise amount of energy being produced at any given moment.
Remote Monitoring
The device is equipped with remote monitoring capabilities, enabling users to access energy production data from anywhere using a mobile application or online platform. This feature provides convenience and accessibility for monitoring PV system performance remotely.
Data Visualization
Solis-3P-Meter-CT-3 provides detailed data visualization, including graphs and reports showing daily, weekly, monthly, and yearly energy production. It also displays other relevant information such as voltage, current, and power, giving users comprehensive insights into their PV system's performance.
Alarm and Notifications
Users can configure the device to send alerts and notifications in case of system issues or anomalies in energy production. This proactive notification system helps users address any issues promptly, ensuring optimal performance and reliability of the PV system.
Integration
Solis-3P-Meter-CT-3 is designed to seamlessly integrate with other energy monitoring systems and management devices. This integration allows users to have a unified and comprehensive view of their energy performance and facilitates better decision-making for system optimization.
Simple Installation and Configuration
The device is designed for easy installation and configuration, minimizing the time and effort required to set up energy monitoring for the PV system. This user-friendly approach enhances the overall user experience and reduces setup complexities.

Features:
- Model: DTSD1352;
- Grid topology: 3P+N;
- Rated voltage: 3×220/380V;
- Input current: 3×1(6) A;
- U, I, P, Q, S, PF, kWh, kvarh;
- RS485 (MODBUS-RTU);
- Operating temperature: -25 °C ~ 55°C;
- Display LCD;
- Size (LxWxH): 126.5x88.2x69.5 mm.
Meter compatible with models:
- Solis-3P(3-20)K-4G;
- S5-GR3P(3-20)K;
- Solis-(25-40)K-5G;
- S5-GC(25-40)K;
- Solis-3P(5-10)K-4G-LV;
- S5-GR3P(5-10)K-LV;
- Solis-(15-23)K-LV-5G;
- S5-GC(15-23).
