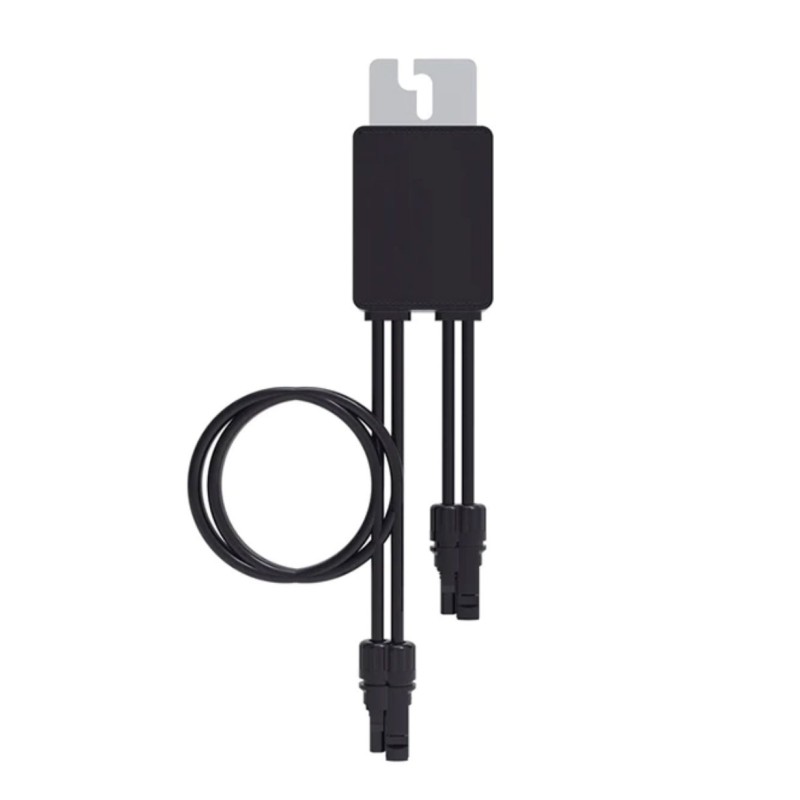

Huawei SUN2000-450W-P2 Smart PV optimizer 450W 10-80V Isc 14.5A MC4

Huawei SUN2000-450W-P2 Smart PV optimizer 450W 10-80V Isc 14.5A MC4

The HUAWEI Smart PV Optimizer SUN2000-450W-P2 compatible with new generation Huawei single-phase L1 and three-phase M1/M2 and M3 inverters is the ideal solution for making the most of your photovoltaic system. Can be installed on a single module. Power optimization device for PV systems, with a maximum input power of 600W and a maximum efficiency of 99.5%. Communication via DC Power Line.

Technical specifications
INPUT
Rated input power: 450W
Absolute maximum input voltage: 80V
MPPT operating voltage range: 10 - 80V
Maximum short circuit current: 14.5A
Maximum efficiency: 99.5%
Weighted Efficiency: 99.0 %
Overvoltage category: II
OUTPUT
Max output voltage: 80V
Max output current: 15A
Output bypass: YES
Output voltage for optimizer: 0V
Output impedance for optimizer: 1k ohm ± 10%
COMMUNICATION
Communication method: MBUS
COMPLIANCE WITH STANDARDS
Safety: IEC62109-1 (class II safety)
RoHS: Yes
GENERAL DATA
Dimensions (L x W x H): 75 x 140 x 28mm
Weight (including cables): 0.6 kg
Accessory for installation (optional): Frame mounting plate / T-bolt 4
Input connector: MC4 – Staubli
Output connector: MC4 – Staubli
Output cable length: 1.3m
Operating temperature / relative humidity: -40 °C～85 °C 5 / 0%RH～100%RH
Degree of protection: IP68
Compatible Products: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000 -30/36/40KTL-M3

PV System Design
Minimum String Length (Power Optimizers):
- SUN2000-2~6KTL-L 1: 4
- SUN2000-3~1 0KTL-M1: 6
Maximum String Length (Power Optimizers):
- SUN2000-2~6KTL-L 1: 25
- SUN2000-3~1 0KTL-M1: 35
Maximum DC power per string:
- SUN2000-2~6KTL-L 1: 6000 W
- SUN2000-3~1 0KTL-M1: 10000 W
