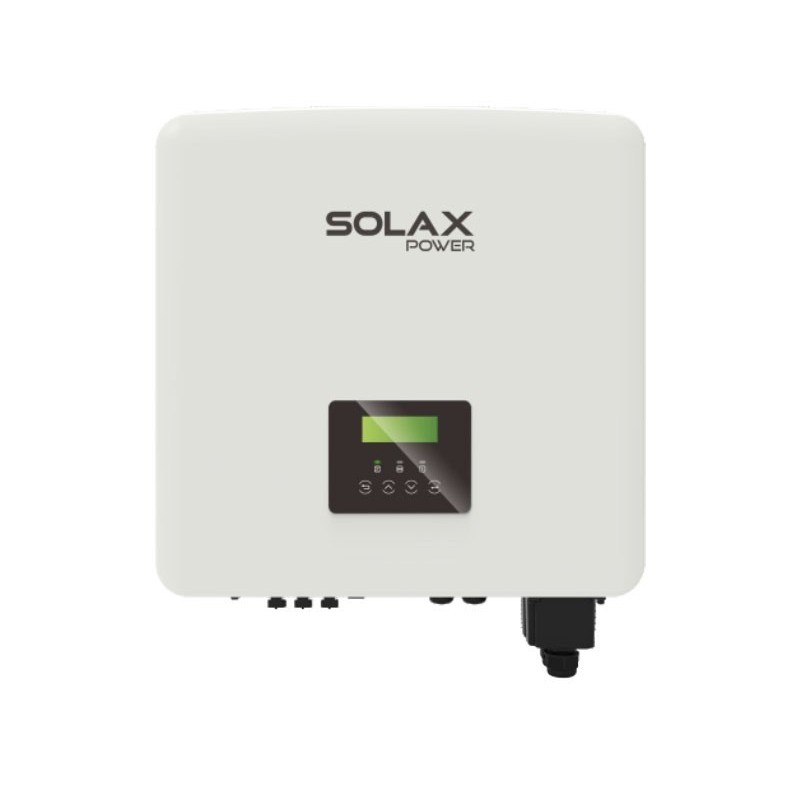

Solax Power X3-HYBRID-12.0-D G4.2 12kW Three-phase Hybrid Inverter
4th generation inverter for maximum self-consumption!
This 3-phase hybrid inverter converts up to 18 kW of solar energy into alternating current and at the same time stores the energy in one or more battery storage systems. The inverter determines the optimal power source for you from the PV system, your batteries and the power grid. It regulates the charging of the batteries for an optimal service life. The Solax Power inverter sends its data to the Internet free of charge via Wi-Fi or LAN. You can check the performance directly online. If you are absent, it monitors your batteries and automatically recharges them. You can then use this free energy in the evening.
Intelligent charging and discharging with EPS
Intelligent charging and discharging of batteries at 180-650 V is possible with the Solax. You can decide for yourself how the batteries should be charged, whether only via the PV system or only via the electricity grid and also when. By storing unused capacity, the X-Hybrid makes it possible to use solar power at any time. It directs the solar power to where and when it is needed. The X-Hybrid is also equipped with a built-in EPS (emergency power supply). This allows the stored energy to be used in the event of a power outage.
150% PV oversized and 110% overload output
Maximum 150% overload output
Higher efficiency on charging and discharging, up to 97.5%
Built-in shadow tracking function
Maximum 16A DC input current, support for high power solar panel
Store the surplus energy from PV to battery
Low start output voltage makes inverter longer working time
Less energy loss on battery to inverter
Switchover time <10ms
Quick configuration with U-disk
Lithium & Lead-acid battery compatible
CT compatible, loads respond within 0.3s
Intelligent loads management (e.g., Heat pump)
On & Off-grid parallel function, up to 150kW
5 work modes, 2 charging periods available
VPP ready, ancillary service in power market
Three-phase unbalanced output 50% nominal output power on single phase at most
IP65 protection level
Integrated SPD
Technical data:
DC INPUT
Max. PV array input power: 18,000 Wp
Max. PV input voltage: 1,000 V
Start output voltage: 200 V
Nominal input voltage: 640 V
MPP voltage range: 180~950 V
No. of MPP trackers/Strings per MPP tracker: 2 (2/1)
Max. input current (input A/input B): 26/16 A
Max. short circuit current (input A/input B): 30/20 A
AC INPUT & OUTPUT
Nominal AC output power: 12,000 W
Max. AC output apparent power: 13,200 VA
Max. AC output current: 19.3 A
Max. AC input apparent power: 20,000 VA
Max. AC input current: 32.0 A
Nominal AC voltage: 415/240; 400/230; 380/220 V
Nominal grid frequency: 50/60 Hz
Displacement power factor: 0.8 leading~0.8 lagging
THDi (rated power): <3%
BATTERY DATA
Battery type: Li-ion battery/Lead-Acid Battery (Under development)
Battery voltage range: 180~650 V
Max. continuous charge/discharge current: 30 A
EPS (OFF-GRID OR BACK-UP) OUTPUT (WITH BATTERY)
Nominal output power: 12,000 W
Peak apparent power: 15,000 VA, 60s
Max.continous current: 17.5 A
Nominal voltage: 400/230 V
Frequency: 50/60 Hz
Switch time: <10 ms
Parallel operation: YES
SYSTEM DATA
Max. efficiency: 98.0%
Euro. efficiency: 97.7%
Battery charge/discharge effciency: 98.5/97.5 %
Standby consumption @Night: <5W
Degree of protection: IP65
Operating temperature range: -35~60°C (Derating above +45°C)
Max. operation altitude: <3000m
Relative humidity: 0~100%
Typical noise emission: <45 dB
Storage temperature: -40 ~ +70°C
Dimensions (W×H×D): 503x503x199 mm
Net weight: 30 kg
Cooling concept: Smart cooling
Communication interfaces: CT/ Meter (optional)/ External control RS485/ (Optional: Pocket WiFi/Lan/4G)/ DRM/ USB Upgrade/NTC (optional )
STANDARD
Safety: EN/IEC62109-1/-2
EMC: EN61000-6-1/2/3/4;EN61000-3-2/3/11/12
Certification: VDE4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /IEC61727/PEA/MEA/NRS-097-2-1/RD1699/TOR
For more details, we recommend that you view the manufacturer's technical data sheet.
