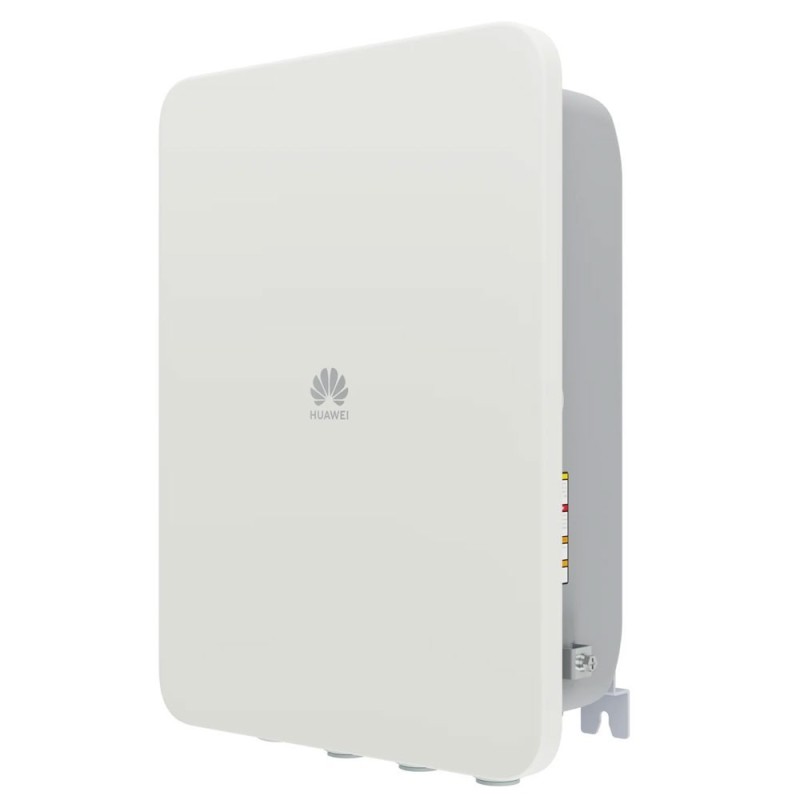

Huawei SmartGuard-63A-T0 3-Phase Energy Backup System MAP0/M1/MB0 MPN 01076984

Huawei SmartGuard-63A-T0 3-Phase Energy Backup System MAP0/M1/MB0 MPN 01076984

The global manufacturer Huawei has been successfully operating in the photovoltaic and storage market for many years. This is also reflected in its wide range of inverters for every application. Whether large-scale systems or sophisticated complete systems with storage and smart accessories for home use. With the new SmartGuard Backup Box series, the entire home system continues to be supplied in the event of a power failure. Thanks to the integrated EMMA Smart Meter, you can also take advantage of intelligent consumer devices or dynamic electricity tariffs.
- Automatic switchover in the event of a power failure
- Complete switchover of the home connection
- Integrated EMMA Smart Meter

Simple - Three phase whole home backup, One fits all
Seamless - ≤20 ms Ultra fast switchover to power Backup mode
Reliable - Provide Bypass mode when a fault occurs
Intelligent - Smart load control, thanks to built-in EMMA

Whole-Home Power Backup
The power backup offering has been significantly improved. You can now get up to 63A of total power support for your entire home without the need for an additional electrical panel. This represents a significant advance in energy efficiency and backup load management.
*Supports 63A of whole-home power when connected to the grid and may vary based on the inverter capacity when off-grid.

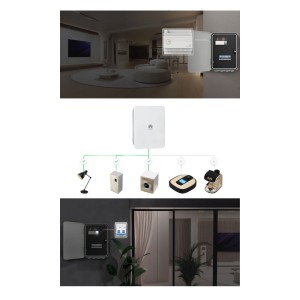

Smart Allocation
When the load gets low, the system automatically turns off the least demanding loads and provides power to the priority appliances you have set. This smart allocation ensures that the most critical requirements are met and ensures a longer-lasting power supply.

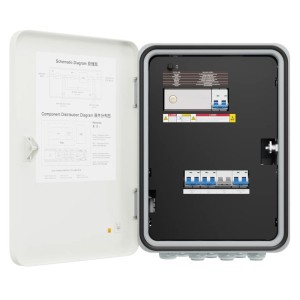

SmartGuard is a highly integrated box that includes communication, measurement and management functions. Its installation is simple: just fix it to the wall with minimal modification of the circuit.
Seamless switchover, faster than the blink of an eye
With SmartGuard at home, during power outages, you will have an ultra-fast transition from the grid to solar backup power. This switch is so fast that the appliances do not even notice the interruption and continue to work as if there had been no blackout.
Bypass mode for safer backup
The backup bypass switch provides safer backup. If the meter is faulty, the manual bypass kicks in to support the power supply. You can activate the bypass mode to connect the loads and turn them back on without worries.
EMMA built-in, for smarter planning
The EMMA-A02 is pre-integrated in the box and supports the Shelly protocol to communicate with smart sockets and circuit breakers. This allows for intelligent load control and multifunctional use. In addition, SmartGuard optimizes energy consumption through EMMA, ensuring uninterrupted power supply.

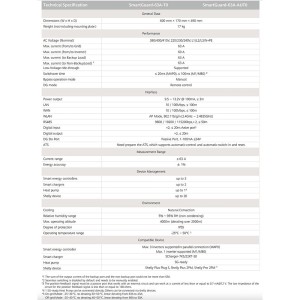

Product Features:
- Mounting position: House power line
- AC mains connection: 400 V, 3-phase
- Protection class: IP55
- Dimensions: 600 x 490 x 170 mm
- Weight: 17.0 kg
- Compatible with models: Max. 3 inverters in parallel connection (for MAP0 model), Max. 1 inverter (for M1/MB0 models)

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
