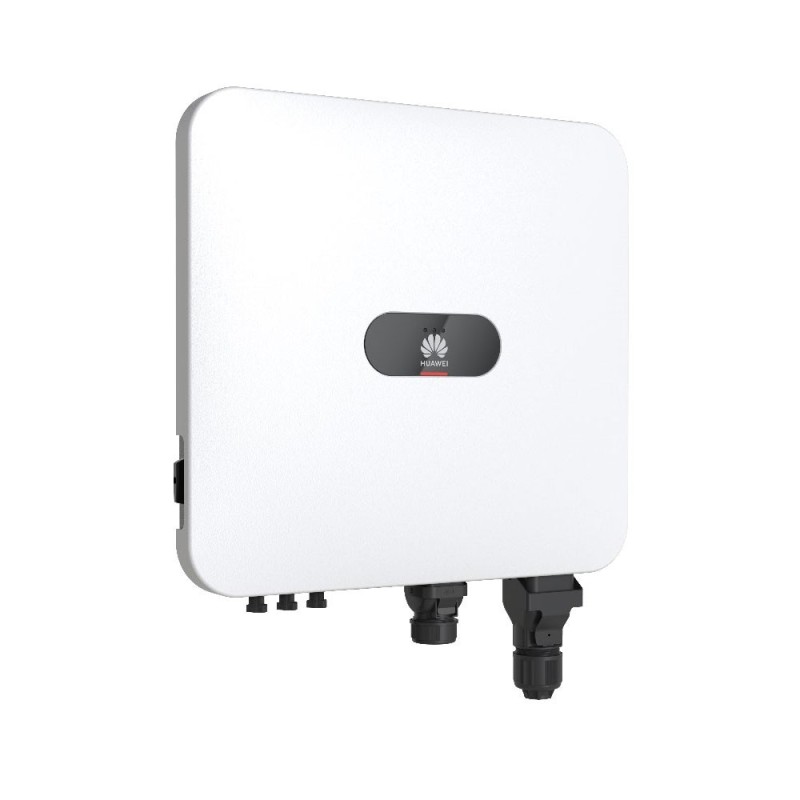

Huawei SUN2000-12K-MAP0 12kW 22000Wp 2MPPT 3-Phase Hybrid Inverter
The Huawei SUN2000-12K-MAP0 three-phase hybrid inverter was developed to meet the growing demands for efficiency and intelligent management of photovoltaic systems. It is also able to implement a true three-phase backup solution in addition to the proven standards. For this purpose, the Smart Guard-63A-T0 automatically switching box must be installed in the main power line. The necessary storage power is provided by the LUNA S0 or S1 series.
• 16.0A input current for MPPT
• Asymmetric power output possible
• Full backup possible with Huawei Smart Guard-63A-T0
• Also compatible with Huawei optimizers*
The Huawei three-phase hybrid inverter has integrated WLAN functionality. Optional is the addition of a dongle for connection via mobile network (Huawei Smart Dongle 4G) or via wiring (Huawei Smart Dongle WLAN FE). The inverter also features the so-called Module Level Monitoring, with which the photovoltaic modules can be monitored individually.
The Huawei 12K-MAP0 PV inverter is well protected against external influences with an IP66 protection rating. Natural convection provides cooling. It also features internal lightning protection on both the DC and AC sides, as well as arc fault protection.
Suitable for direct use of the generated energy, fed back into the grid and if necessary, stored in batteries. It makes monitoring faster and supports new power optimizers.
Power your home with clean energy
The powerful inverter powers more appliances with greater green energy self-sufficiency and lower utility bills. The new MAP0 inverter supports battery start-up from AC. Go green with fewer inverters.
On-demand allocation, less grid dependence
By adapting to three-phase imbalance, the MAP0 inverter provides stable power for all loads without relying on the grid. Optimized power allocation improves the efficiency of green energy use, ensuring a better experience and lower electricity bills.
Safe power in any situation
The system's amazing start-up current resistance ensures constant operation, even during sudden power fluctuations. You can run your home off the grid, with complete confidence. You no longer have to worry about blackouts.
Intelligent AFCI Protection Eliminates Safety Risks
The intelligent AFCI (Arc-fault Circuit Interrupter) protection interrupts the DC arc within 0.5 seconds, eliminating potential fire risks for the safety of people and property.
IP66 Rated
Resilient to harsh environments, the new Smart Energy Controller resists dust and high-velocity water jets, sand, corrosion, salt spray and other hazards.
Withstands Extreme Temperatures
Tested in high and very low temperature scenarios, the controller works smoothly from -25°C to 60°C.
Lightning Protection
The Smart Energy Controller has passed the DC/AC lightning protection test, withstanding without any problems. With built-in SPD, you won't need anything else.
More Storage, Infinite Energy
The Smart Energy Controller can be conveniently integrated into your energy storage system. This coupling allows you to accumulate daily solar energy and use it at night and on cloudy days, allowing for a green life 24/7.
Storage ready for use at any time
Days of sudden darkness are just a memory: the storage solution for the whole house starts up without interruptions in the event of a blackout, ensuring a continuous domestic power supply.

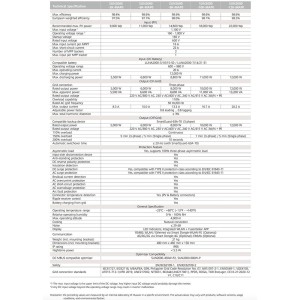

Caratteristiche del prodotto:
- Nominal AC power: 12 kW
- Maximum DC generator power: 22 kWp
- Maximum AC power: 13.2 kVA
- Maximum MPP input voltage range: 1000 V
- Max. input voltage DC 1100 V
- MPP Minimum input voltage range: 160 V
- Max. total DC input current: 32 A
- Max. output current: 20.2 A
- Max. Maximum number of string inputs: 2
- Overvoltage protection: Type 2 AC + DC
- AC connection: 3-phase
- Max. efficiency: 98.60 %
- European efficiency: 98.1 %
- Communication: RS485, WLAN / LAN with dongle
- Protection class: IP66
- Power phases: 3
- Cooling: passive
- Type: transformerless
- Dimensions (HxWxD): 460x490x130 mm
- Weight: 21 kg
- Certificates: EN/IEC62109-1, EN/IEC62109-2
- Connection standards to the network: IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11
*Compatible with SUN2000-450W-P2, SUN2000-600W-P, MERC-600W-PA0 (coming soon).
