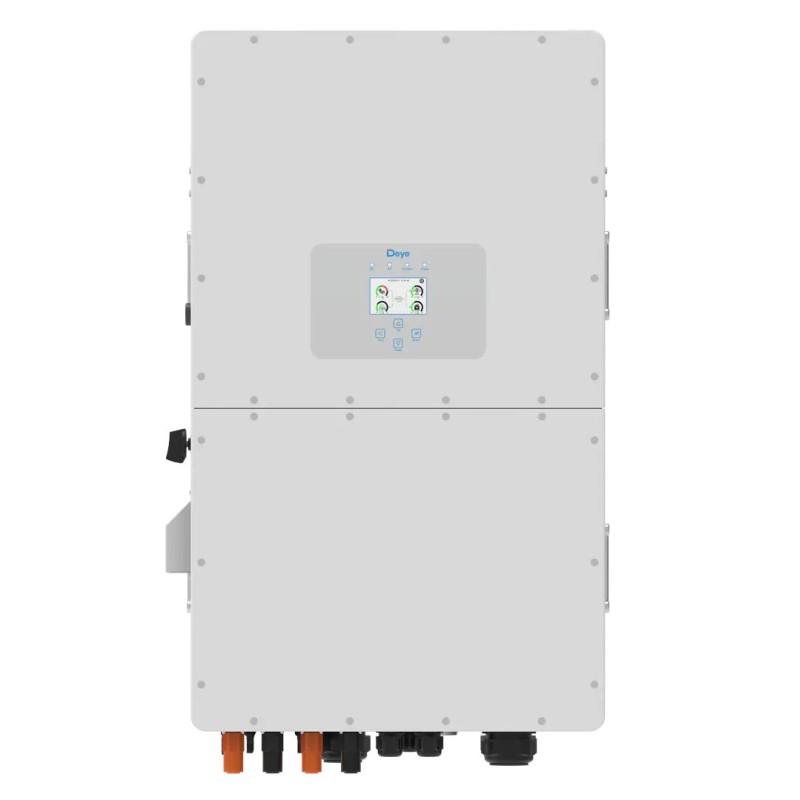

40kW 4 MPPT Deye SUN-40K-SG01HP3-EU-BM4
Deye SUN-40K-SG01HP3-EU-BM4 hybrid PV inverter is suitable for residential, commercial and industrial PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.
During the day, the PV system generates electricity, which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.
The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.
With the intelligent monitoring platform, Deye SUN-40K-SG01HP3-EU-BM4 inverters support immediate remote shutdown in the event of an accident.
With the intelligent monitoring platform, Deye full series inverter products support immediate remote shutdown in the event of an accident. Remote parameter setting and FW upgrade simplify the O&M of the PV system.

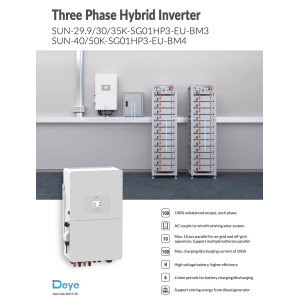

• 100% unbalanced output, each phase; max output up to 50% of rated power
• AC torque for retrofitting existingSolar system
• Max 10pcs parallel for on-grid and off-grid operation, support multiple batteries in parallel
• Max 50+50A charge/discharge current
• 160-800V high voltage battery, Lithium
• Support energy storage from diesel generator

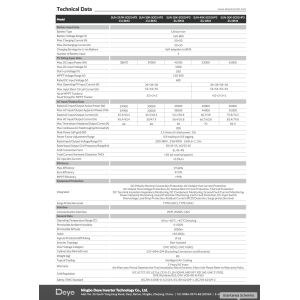

Technical Data
Model: SUN-40K-SG01HP3-EU-BM4
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range: 160-800V
Maximum Charge Current: 50+50Ah
Maximum Discharge Current: 50+50Ah
Charging Strategy for Lithium-ion Battery: Self-adaptation to BMS
Number of Input Batteries: 2
PV String Input Data
Maximum PV Access Power: 52,000W
Maximum DC Input Voltage: 1000V
Starting Voltage: 180V
MPPT Voltage Range: 150-850V
Nominal DC Input Voltage: 600V
Max. Operating PV Input Current: 36+36+36A
Maximum Input Short Circuit Current: 55+55+55 A
Number of MPP locators/Number of MPP Tracker strings: 4/8
AC input/output data
Rated active AC input/output power: 40,000 W
Maximum AC input/output apparent power: 44,000 WA
Rated AC input/output current: 60.7/58 A
Maximum AC input/output current: 66.7/63.8 A
Peak power (Off-grid): 2 times nominal power, 10 S
Power factor adjustment range: 0.8 leading - 0.8 legging
Rated input/output voltage/range: 220/380 V, 230/400 V - 0.85Un-1.1Un
Rated input/output grid frequency/range: 50/45-55, 60/55-65 Hz
Module grid connection: 3L+N+PE
Total current harmonic distortion THDi: <3% (of rated power)
DC injection current: <0.5% In
Efficiency
Maximum: 97.6%
Euro efficiency: 97.0%
MPPT efficiency: <99%
Equipment protection
Built-in: DC reverse polarity connection protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short circuit protection, DC component monitoring, Overvoltage load drop protection, Earth fault current monitoring, Arc fault circuit interrupter (optional), Power grid monitoring, Island protection monitoring, Earth fault detection, DC input switch, DC terminal insulation impedance monitoring, Residual current detection (RCD), Surge protection level
Surge protection level: TYPE II(DC), TYPE II(AC)
Interface
Communication interface: RS485/WIFI/CAN
General
Operating temperature range: -40 to +60℃, >45℃ Derating
Allowable ambient humidity: 0-100%
Allowable altitude: 2000m
Noise: <55 dB
Ingress protection rating: IP 65
Inverter topology: Non-isolated
Overvoltage category: OVC II(DC), OVC III(AC)
Cabinet dimensions (WxHxD): 527x894x294 mm (Excluding connectors and brackets)
Weight: 80 kg
Cooling type: Intelligent area cooling
Warranty: 5 years/10 years The warranty period depends on the final installation site of Inverter, More information Please refer to DEYE warranty policy provided by the manufacturer.

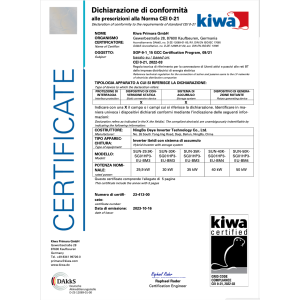

Grid regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
