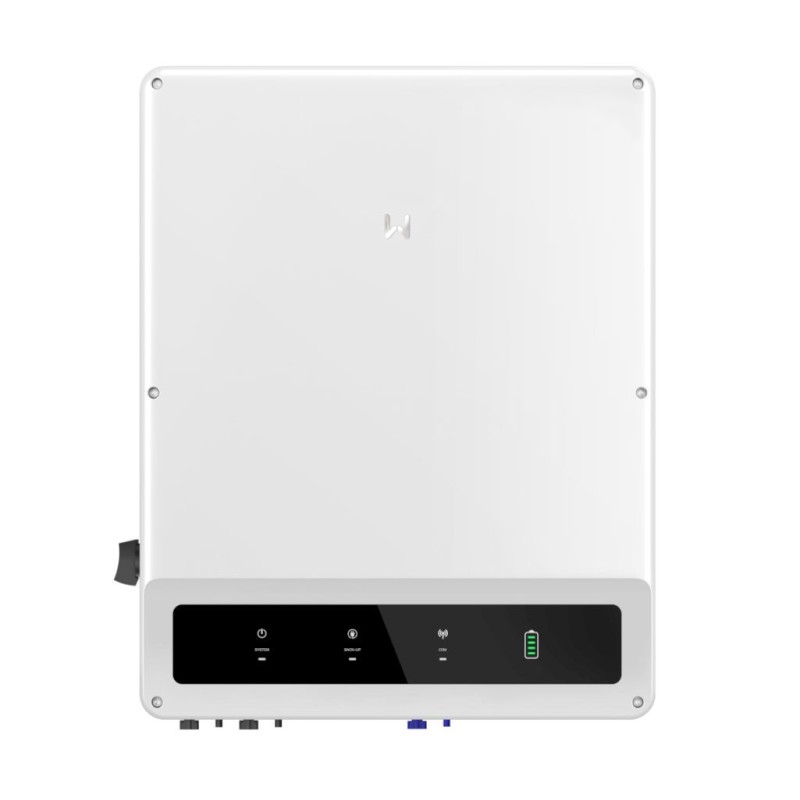

Goodwe GW20K-ET 20kW Three-phase Hybrid Inverter

Goodwe GW20K-ET 20kW Three-phase Hybrid Inverter

GoodWe GW20K-ET high voltage hybrid inverter from the ET series with emergency power output. The 20kW three-phase hybrid inverter is suitable for large PV projects in the residential sector and small projects in the commercial sector. Equipped with an integrated switching device for back-up power. This allows the inverter to continue to supply the home with three-phase emergency power in the event of a grid failure. It is capable of operating in black-start mode.
The trend of increasing PV module yield is influencing overall PV system requirements. At the forefront of development, GoodWe’s ET inverters efficiently meet the needs of powerful solar rooftops to facilitate energy back-up, peak shaving and load management for optimised autonomy and reduced energy cost. The ET series can be combined with a range of battery capacities and brands, including the GoodWe Lynx Home F.

• Integrated switching device for backup power
• Black start functionality
• Peak Shaving function
• AC charging capability
• Built-in type 2 DC overvoltage protection
• AC overvoltage protection

Technical data:
- Battery type: Lithium Ion
- Battery Rated Voltage: 500V
- Battery voltage range: 200~800V
- Max. continuous charge current: 50A
- Max. continuous discharge current: 50A
- Max. charging power: 20000W
- Max. discharge power: 20000W
PV string input data
- Max. input power: 30000W
- Max. input voltage: 1000V
- MPPT Operating Voltage Range: 200~850V
- Start-up voltage: 200V
- Nominal input voltage: 620V
- Max. input current per MPPT: 30A
- Max. short circuit current per MPPT: 38A;
- Number of MPP Trackers: 2
- Number of strings per MPPT: 2/2
AC side output data (on-grid)
- Nominal Apparent Power Output to Utility Grid: 20000 VA
- Max. Apparent Power Output to Utility Grid: 22000 VA
- Max. Apparent Power from Utility Grid: 30000 VA
- Nominal Output Voltage (V): 380/400, 3L/N/PE
- Nominal AC Grid Frequency: 50/60 Hz
- Max. AC Current Output to Utility Grid: 33.3A
- Max. AC Current From Utility Grid: 45.0A
- Power factor: ~ 1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. total harmonic distortion: <3%
AC side output data (backup)
- Back-up Nominal Apparent Power: 20000 VA
- Max. Output Apparent Power: 20000 VA (24000@60s, 32000@3s)
- Max. Output Current: 30.3 A (36.4@60s, 48.5@3s)
- Nominal output voltage: 380/400V
- Nominal output frequency: 50/60Hz
- Output THDv (with linear load): <3%
Efficiency
- Max. efficiency: 98.0%
- European efficiency: 97.5%
- Max. battery to AC efficiency: 97.5%
- MPPT efficiency: 99.9%
Protection
- PV insulation resistance detection: Integrated
- Residual current monitoring: Integrated
- PV reverse polarity protection: Integrated
- Anti-isolation protection: Integrated
- AC side overcurrent protection: Integrated
- AC side short circuit protection: Integrated
- AC side overvoltage protection: Integrated
- DC side switch: Integrated
- DC-side surge arrester: Type II
- AC side surge arrester: Type III
- AFCI: Optional
- Remote shutdown: Integrated
General data
- Operating temperature range: -35 ~ +60°C
- Relative Humidity: 0 ~ 95%
- Max. operating altitude: 4000m
- Cooling method: Smart Fan Cooling
- User interface: LED, WLAN + APP
- Communication with BMS: RS485; CAN
- Communication with meter: RS485
- Communication with portal: WiFi / 4G
- Weight: 48 kg
- Dimensions (W×H×D): 520x660x220 mm
- Topology: Non-Isolated
- Night power consumption: <15
- Ingress protection degree: IP66
- Installation type: Wall mounted.

For more details, we recommend that you view the manufacturer's technical data sheet.
