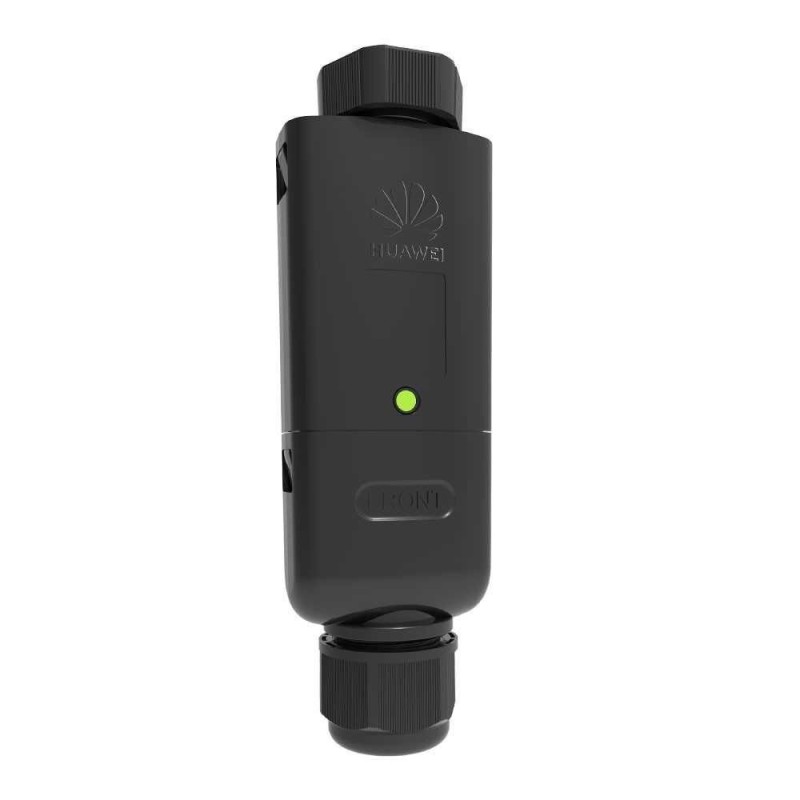

Huawei SMART DONGLE-WLAN-FE 2.0 monitoring system for Huawei Inverter

Huawei SMART DONGLE-WLAN-FE 2.0 monitoring system for Huawei Inverters

Huawei SMART DONGLE-WLAN-FE 2.0 is a compact and versatile device, designed to improve the connectivity and management of photovoltaic systems. Provides an efficient WLAN solution to monitor and control Huawei inverter. Connection to the inverter via Plug & Play system. Communication via WLAN and Fast Ethernet. Maximum support 10 devices. IP65 protection rating, automatic reconnection.

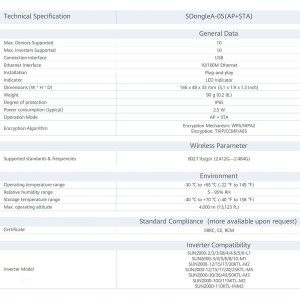

General data
Max. Supported Devices: 10
Max. Inverters supported: 10
Connection interface: USB
Ethernet interface: 10/100M Ethernet
Installation: Plug-and-play
Indicator: LED indicator
Degree of protection: IP65
Power Consumption (Typical): 2.5W
Operation mode: AP + STA
Encryption Algorithm: WPA/WPA2 encryption mechanism and TKIP/CCMP/AES encryption
Support standard and frequency: 802.11b/g/n（2.412G—2.484G）
Operating temperature range: -30℃ to +65℃
Relative operating humidity: 5 - 95% RH
Storage temperature range: -40℃ to +70℃
Max. operating altitude: 4,000 m
Safety: SRRC, CE, RCM
Inverter compatibility, models:
- SUN2000-2/3/3.68/4/4.6/5/6-L1
- SUN2000-3/4/5/6/8/10-M1
- SUN2000-12/15/17/20KTL-M2
- SUN2000-12/15/17/20/25KTL-M5
- SUN2000-30/36/40/50KTL-M3
- SUN2000-100/115KTL-M2
Dimensions (WxHxD): 146x48x33 mm
Weight: 90g.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
