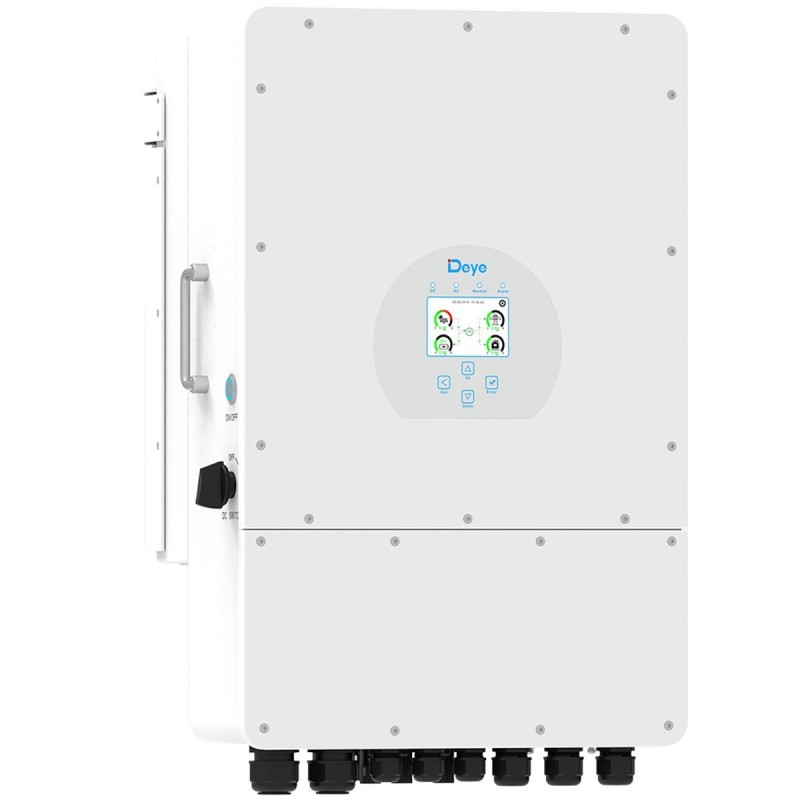

Deye SUN-10K-SG04LP3-EU 10kW Three-Phase Hybrid Inverter LV CEI-021
Deye SUN-10K-SG04LP3-EU hybrid PV inverter is suitable for residential PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.
During the day, the PV system generates electricity which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.
The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.
With the intelligent monitoring platform, Deye SUN 10K SG04LP3 EU inverters support immediate remote shutdown in the event of an accident.
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
• 100% unbalanced output, each phase; Max. output up to 50% rated power
• AC couple to retrofit existing solar system
• Max. 10 pcs parallel for on-grid and off-grid operation, support multiple batteries parallel
• Max. charging/discharging current of 240A
• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

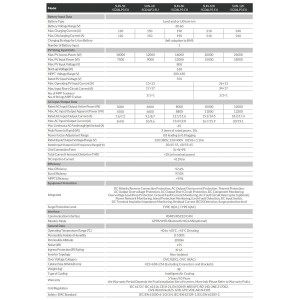

TECHNICAL SPECIFICATIONS
Model: SUN-10K-SG04LP3-EU
Battery Input Data
Battery Type: Lead Acid or Lithium Ion
Battery Voltage Range: 40-60 V
Maximum Charge Current: 210 Ah
Maximum Discharge Current: 210 Ah
Charging Strategy for Lithium Ion Battery: Self-adaptation to BMS
Number of Input Battery: 1
PV String Input Data
Maximum PV Access Power: 20000 W
Maximum DC Input Power: 15000 W
Maximum DC Input Voltage: 800 V
Starting Voltage: 160 V
MPPT Voltage Range: 200-650 V
Nominal DC Input Voltage: 550 V
Max. Operating PV Input Current: 26+13 A
Maximum Input Short Circuit Current: 34+17 A
Number of MPP Trackers/Number of MPP Tracker Strings: 2/2+1
AC Output Data
Rated AC Input/Output Active Power: 10000 W
Maximum AC Input/Output Apparent Power: 11000 WA
Rated AC Input/Output Current: 15.2/14.5 A
Maximum AC Input/Output Current: 16.7/15.9 A
Maximum Continuous AC Passthrough(grid on load): 45 A
Peak Power (Off-grid): 2 times rated power, 10 S
Power Factor Adjustment Range: 0.8 leading - 0.8 legging
Rated Input/Output Voltage/Range: 220/380 V, 230/400 V - 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range: 50/45-55, 60/55-65 Hz
Grid Connection Module: 3L+N+PE
Total Current Harmonic Distortion THDi: <3% (of rated power)
DC injection current: <0.5% In
Efficiency
Maximum: 97.6%
Euro efficiency: 97.0%
MPPT efficiency: <99%
Protection
Integrated: DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Over Voltage category: TYPE II(DC), TYPE II(AC)
Interface
Communication Interfase: RS485//RS232/CAN
Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: <55 dB
Ingress Protection Rating: IP 65
inverter Topology: Non-isolated
Over Voltage category: OVC II(DC), OVC III(AC)
Cabinet Dimensions (WxHxD): 422x658x254 mm (Excluding connectors and brackets)
Weight: 38 kg
Type of Cooling: Intelligent Air Cooling
Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
