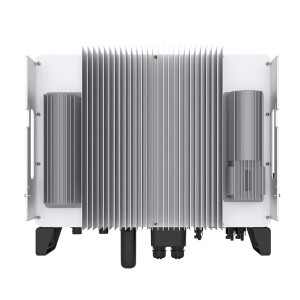

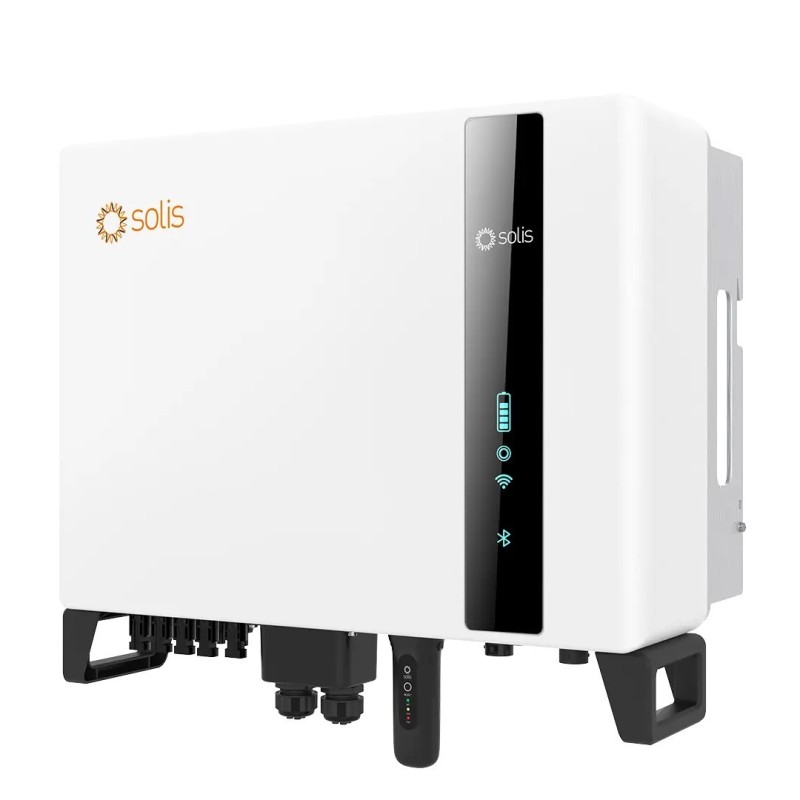

Solis S6-EH3P10K-H-EU 10kW 20000W Three-Phase Hybrid Inverter 2MPPT Backup
S6 Solar inverter that can connect solar panels and a high voltage battery. This inverter will capture the solar during the day and provide power to your home loads and charge the battery. At night it will use the battery to satisfy your home loads. This will prevent you from using any power from the grid and save you from ever paying them a cent! Fight back with the new S6 solar hybrid inverter from Solis.
✓ Automatic UPS switching
✓ Supports Peak Shaving Mode
✓ Integrated 3 or 4 MPPTs for multiple array orientations
✓ Industry leading 50A/10kW max charge/discharge rating
✓ Pre-made Battery, Meter and CAN cabling to reduce installation time
✓ Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
✓ Compatible with multiple brands of lithium battery models
✓ Increased battery protection and operation features to extend battery life
Technical specifications
DC input
Maximum recommended size of the field PV: 20 kW
Recommended photovoltaic power: 16 kW
Absolute maximum voltage: 1000 V
Rated Voltage: 600 V
Starting Voltage: 160 V
MPPT Voltage Range: 200-850 V
Maximum input current: 4x16 A
Maximum short circuit current: 4x24 A
Maximum MPPT number/Number of strings: 4/4
Battery
Battery type: Li-ion
Battery voltage range: 120-600 V
Max. charge / discharge power: 10 kW
Max. charge / discharge current: 50 A
Communication: CAN/RS485
Output AC/Grid Side
Rated Output Power: 10 kW
Maximum Apparent Output Power: 10 kVA
Operating Phase: 3/N/PE
Rated Grid Voltage: 380/400 V
Rated Grid Frequency: 50-60 Hz
Rated Grid Output Current: 15.2/14.4 A
Maximum Output Current: 15.2/14.4 A
Power Factor: > 0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Input AC/Grid Side
Input Voltage Range: 304-437/320-460 V
Maximum Input Current: 22.8 A
Rated Grid Frequency: 50-60 Hz
Frequency Range: 45 - 55/55 - 65 Hz
Output AC/Backup
Nominal output power: 10 kW
Maximum apparent output power: 16 kVA, 60 sec
Backup switching time: <10 ms
Nominal grid voltage: 3/N/PE, 380/400V
Nominal grid frequency: 50-60 Hz
Nominal output current: 15.2/14.4 A
THDi: <2%
Efficiency
Maximum efficiency: 97.90%
EU efficiency: 97.51%
Maximum efficiency BAT charged by PV: 98.31%
Maximum efficiency BAT charged/discharged in AC: 97.50%
Protection
Anti-islanding system: Yes
Output overcurrent protection: Yes
Short circuit protection: Yes
Built-in AFCI 2.0: Optional
Built-in DC switch: Yes
Polarity protection DC reverse: Yes
PV overvoltage protection: Yes
Battery reverse polarity protection: Yes
General Data
Maximum permissible phase imbalance (grid and backup): 100%
Maximum power per phase (grid and backup): 50% of nominal power
Dimensions (W×H×D): 600×500×230 mm
Weight: 30.2 kg
Topology: Transformerless
Self-consumption (night): < 25 W
Operating ambient temperature range: -25 ~ +60°C
Relative humidity: 0 - 95%
Protection class: IP66
Noise emission (typical): < 46.9 dB(A)
Cooling method: Natural cooling
Maximum operating altitude: 4000 m
Grid connection standard: G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety/EMC standards: IEC/EN 62109-1/-2, EN 61000-6-1/-3
Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: LED indicator and Bluetooth + APP
Communication: CAN, RS485, Optional: Wi-Fi, Cellular, LAN
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
