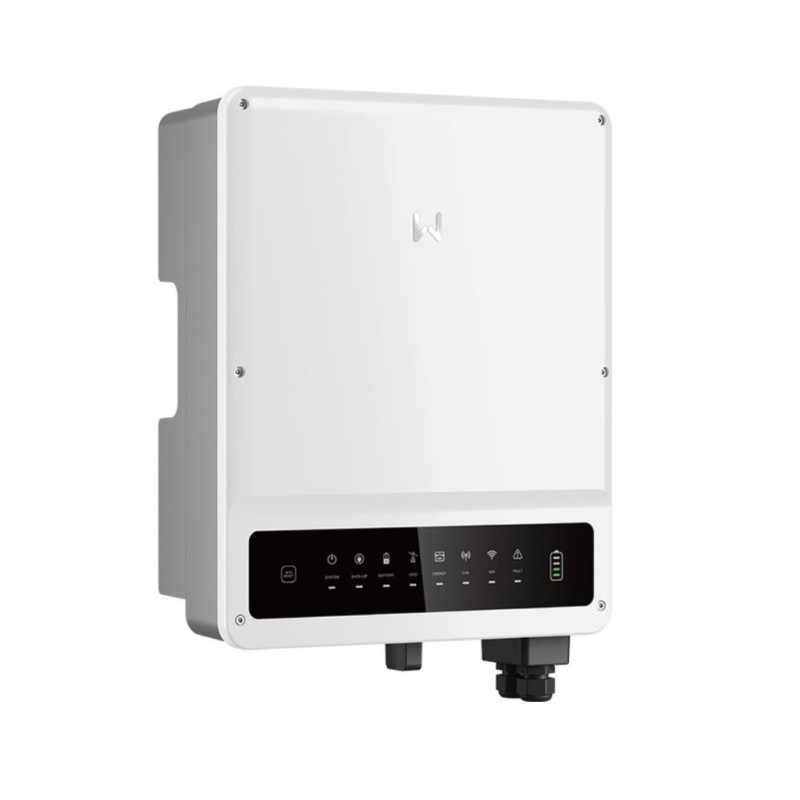

Goodwe GW10KN-ET PLUS 16A 10kW Three-phase Hybrid Inverter

Goodwe GW10KN-ET PLUS 16A 10kW Three-phase Hybrid Inverter

The 16A 10kW GoodWe GW10KN-ET PLUS hybrid inverter is three-phase high voltage accumulator that promote energy independence and maximize self-consumption, thanks to a function that limits the export of power and usage shifts that help reduce bills. With power ratings 10kW, the ET Series supports up to 100% overload to maximize energy delivery and features an uninterruptible power supply (UPS) for inductive loads, such as air conditioners or refrigerators, with an automatic communication time of less than 10 milliseconds, which promotes savings in the event of introduction into the public network and guarantees energy independence and safety when the network is inactive or compromised.

•    Integrated charge regulator
•    More performance and safety
•    Easy remote monitoring via PC, tablet and smartphone
•    Intelligent battery management function
•    Compatible with BYD, Pylon Li-ion batteries
•    IP65 certified
•    Attractive design
•    Without fan, maximum silence
•    Maximum efficiency up to 98.3%

Technical data:
- Battery type: Lithium Ion
- Battery Rated Voltage: 500 V
- Battery voltage range: 180~600 V
- Starting voltage: 180 V
- No. of battery inputs: 1
- Max. continuous charge current: 25 A
- Max. continuous discharge current: 25 A
- Max. charging power: 10000 W
- Max. discharge power: 10000 W
PV string input data
- Max. input voltage: 1000 V
- MPPT Operating Voltage Range: 200~850 V
- Starting voltage: 180 V
- Rated input voltage: 620 V
- Max. input current per MPPT: 16 A
- Max. short circuit current per MPPT: 21.2 A;
- Number of MPPTs: 2
- Number of strings for MPPT: 1
AC side output data (on-grid)
- Nominal Output Power: 10000 W
- Nominal Apparent Power Output to Utility Grid: 10000 VA
- Max. Apparent Power Output to Utility Grid: 11000 VA
- Max. Apparent Power from Utility Grid: 15000 VA
- Nominal Output Voltage: 400/380V, 3L/N/PE
- Output Voltage range: 0 ~ 300 V
- Nominal AC Grid Frequency: 50/60 Hz
- AC Grid Frequency range: 45 ~ 65 Hz
- Max. AC Current Output to Utility Grid: 16.5 A
- Max. AC Current From Utility Grid: 22.7 A
- Power factor: ~ 1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. total harmonic distortion: <3%
AC side output data (backup)
- Back-up Nominal apparent power: 10000 VA
- Max. Output apparent power without grid: 10000 VA (16500@60sec)
- Max. Output apparent power with grid: 10000 VA
- Max. Output current: 16.5 A
- Nominal Output Voltage: 400/380 V
- Nominal Output Frequency: 50/60 Hz
- Output THDv (with linear load): <3%
Efficiency
- Max. efficiency: 98.2%
- European efficiency: 97.5%
- Maximum. battery to AC efficiency: 97.5%
- MPPT efficiency: 99.9%
Protection
- PV insulation resistance detection: Integrated
- Residual current monitoring: Integrated
- PV reverse polarity protection: Integrated
- Anti-isolation protection: Integrated
- AC side overcurrent protection: Integrated
- AC side short circuit protection: Integrated
- AC side overvoltage protection: Integrated
- DC side switch: Integrated
- DC-side surge arrester: Type II
- AC side surge arrester: Type III
- Remote shutdown: Integrated
General data
- Operating temperature range: -35 ~ +60°C
- Relative Humidity: 0 ~ 95%
- Max. operating altitude: 4000m
- Cooling method: Natural convection
- User interface: LED & APP
- Communication with BMS: RS485; CAN
- Communication with meter: RS485
- Communication with portal: WiFi / WiFi + LAN (Optional) / 4G (Optional)
- Weight: 24kg
- Dimensions (W×H×D): 415x516x180 mm
- Topology: Non-Isolated
- Night power consumption: <15
- Ingress protection degree: IP66
- Installation type: Wall mounting.

For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
