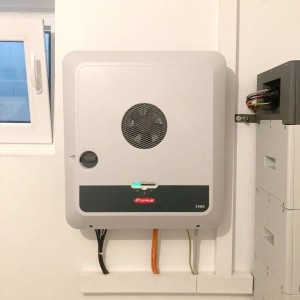

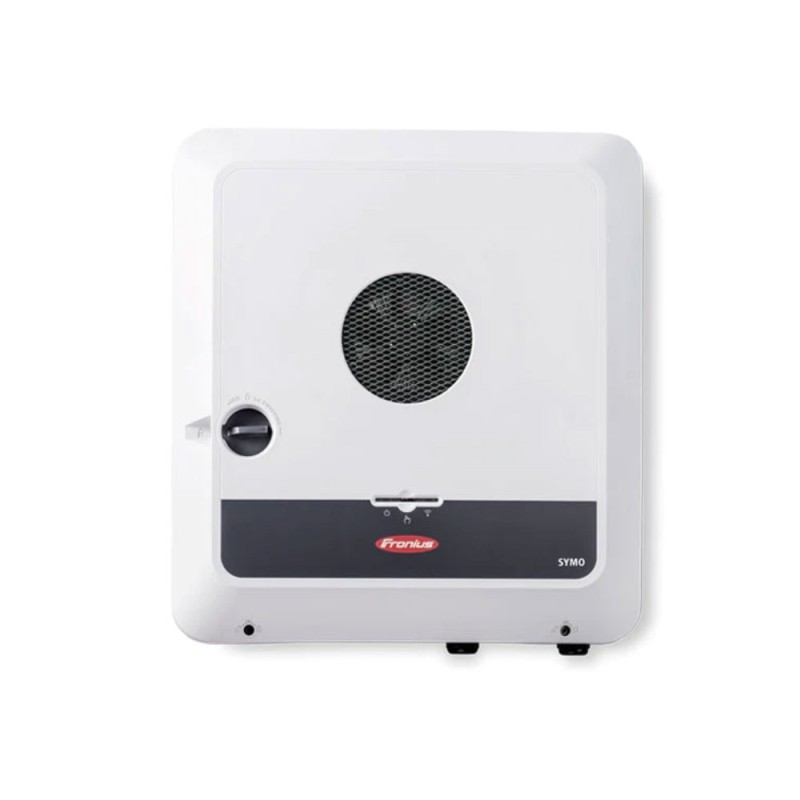

Fronius Symo GEN24 4.0 Plus 4kW 2 MPPT 3-Phase Hybrid Inverter
The Fronius Symo GEN24 4.0 Plus three-phase hybrid inverter is ideal for private photovoltaic systems. It offers the integrated basic backup power function "PV Point" or a complete backup power solution in combination with a storage battery.
It allows you to independently produce the energy necessary for the electricity supply, heating and air conditioning of your home, as well as for charging your electric car. Also equipped with "Full Backup" a backup power solution that also allows the power supply of three-phase loads. Furthermore, thanks to Multi Flow Technology, the hybrid inverter allows parallel energy flows within the system even in backup power mode.
The Fronius GEN24 Plus is equipped with the integrated "PV Point" basic backup power function or can also be equipped on request with the "Full Backup" backup power function, which can be used in combination with a storage battery.
- The heart of private photovoltaic systems
- Quick installation and configuration
- Developed and produced with sustainability in mind
- "Made in Austria"
Backup Power for Every Situation
A reliable energy supply: The Fronius GEN24 offers just that with an integrated basic backup power function, the PV Point. With the Fronius GEN24 Plus, you can choose between the PV Point and the Full
Backup option*, which provides backup power for the entire home.
Built-in Freedom
The Fronius GEN24 and Fronius GEN24 Plus have open interfaces. This makes it easy to integrate components from Fronius or third-party suppliers for a tailor-made photovoltaic system.
Versatility as Standard
More functions. More control. More power. Thanks to the energy management functions of the Fronius GEN24 and Fronius GEN24 Plus, you continuously save time and money. What’s more, the integrated
active cooling extends the service life of the inverter, protecting your investment for many years to come.
Sustainably Future-proof
For those who don’t want to decide right away: Thanks to the Fronius UP.storage** software upgrade, your device can be retrofitted with the Full Backup power supply at any time.
Maximum Independence
By combining the Fronius GEN24 Plus with a battery, you can get even more out of your photovoltaic system, even at night. Use more of your own electricity and become more independent of electricity
providers and prices.
* The Full Backup power function is not available for the Fronius Symo GEN24 3.0-5.0 Plus.
** Available in the Fronius webshop in select countries.
SOLAR.START
The app dedicated to professionals for commissioning. Fronius Solar.start allows you to easily set up Fronius inverters in just two minutes.
- Quick and easy commissioning in just 3 steps
- Quick access to settings and functions
- Registering the inverter during configuration, so the warranty extension is even easier and faster
- Connection to the Fronius Solar.web, Fronius Solar.SOS, etc. portals.
Technical data
No. of MPPTs: 2;
Rated input voltage: 610 V;
MPP voltage range (at rated power) (Umpp min - Umpp max): 170 - 800 V;
Rated power: 4000 W;
Maximum output power: 4000 VA;
Rated output current: 6.1 A (380 Vac) 5.8 A (400 Vac);
Grid connection characteristics: 3~ NPE 400/230 or 3~ NPE 380/220 (+20%/-30%).
Battery connection
Number of DC battery connectors: 1;
Maximum input current (Idc max): 12.5 A;
Maximum input current (Udc min - Udc max): 160 - 531 V;
Type of DC connection on battery side: 1 BATT+ pressure terminal and 1 BATT- pressure terminal 2.5-10 mm²;
Maximum charging and discharging power on the DC side: 4,180 W;
Maximum charging power with AC storage: 4,000 W;
Compatible batteries: BYD Battery-Box Premium HVS/HVM & LG FLEX.
Full Backup output data
The Full Backup function is only available for Symo GEN24 Plus sizes from 6 to 10 kW.
General data
Dimensions: 530x474x165 mm;
Inverter weight/with packaging: 15.6/19.4 kg;
Protection class: IP66;
Security class: 1;
Overvoltage category (DC/AC): 2/3;
Night consumption: <10W;
Inverter concept: Transformerless;
Cooling: Active cooling technology;
Mounting: indoors and outdoors;
Ambient temperature range: -25°C - +60°C;
Permissible air humidity: 0 - 100%;
Max. height above sea level: 3000m / 4000m;
Type of DC connection on the PV side: 3 DC+ pressure terminals and 3 DC- pressure terminals 2.5-10 mm²;
AC connection type: 5-pole AC terminal block at pressure 1.5-10 mm². 3-pole push-in terminal block for 1.5-10 mm² backup option. For earthing: 5 PE screw terminals 2.5-16 mm²;
Certifications and regulatory compliance: IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126, VDE AR-N4105, AS/NZS 4777.2, EN 50549, CEI 0-21, G98/G99, R25;
Backup functions: PV Point;
Life cycle analysis: According to ÖNORM EN ISO 14040 and 14044 (carried out by the Fraunhofer Institute).
Degree of efficiency
Maximum efficiency level: 98.2%;
European efficiency rating (ηEU): 97.2%;
Efficiency level of MPP trackers: >99.9%.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
