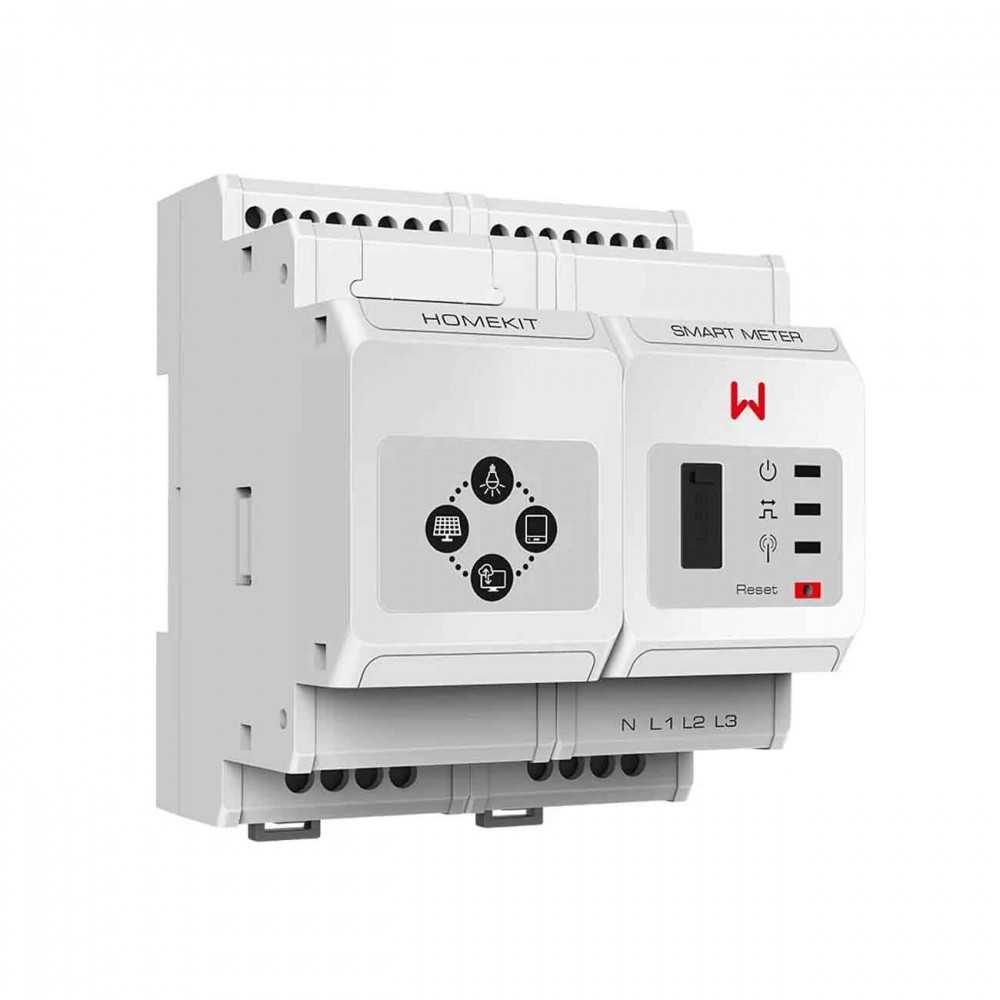

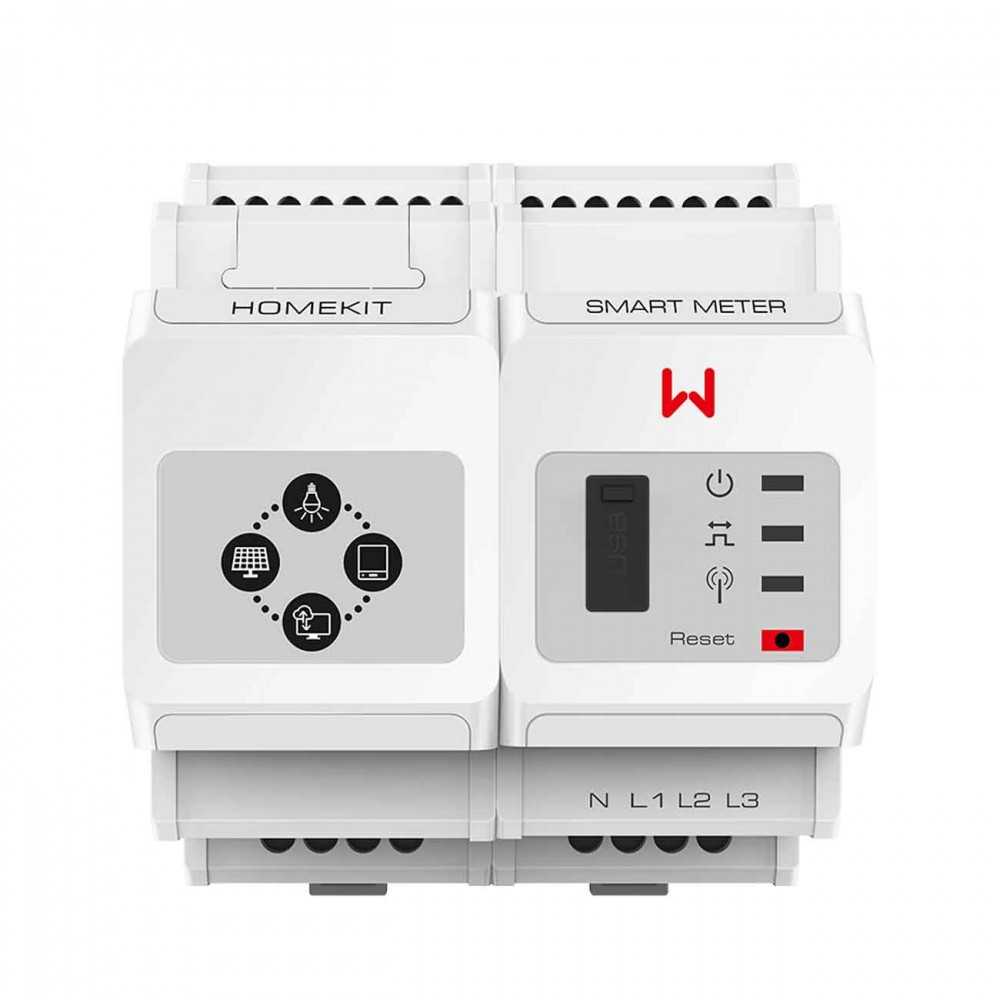

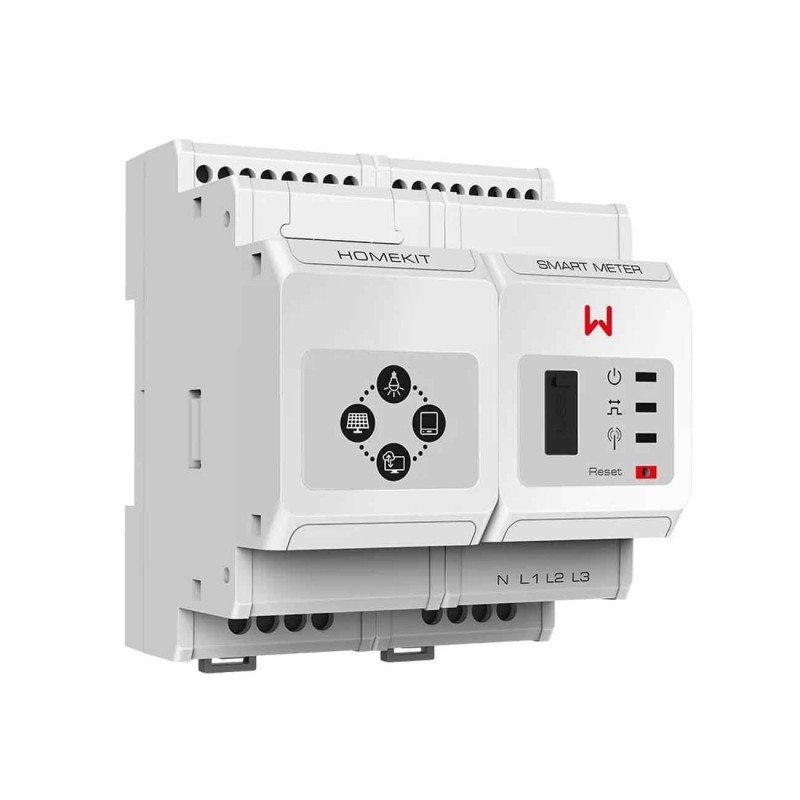

GoodWe HK3000 120A 40mA 230/400Vac Three-Phase HomeKit Power Sensor

GoodWe HomeKit HK3000 120A 40mA 230/400Vac HomeKit Three-Phase Smart Power Sensor

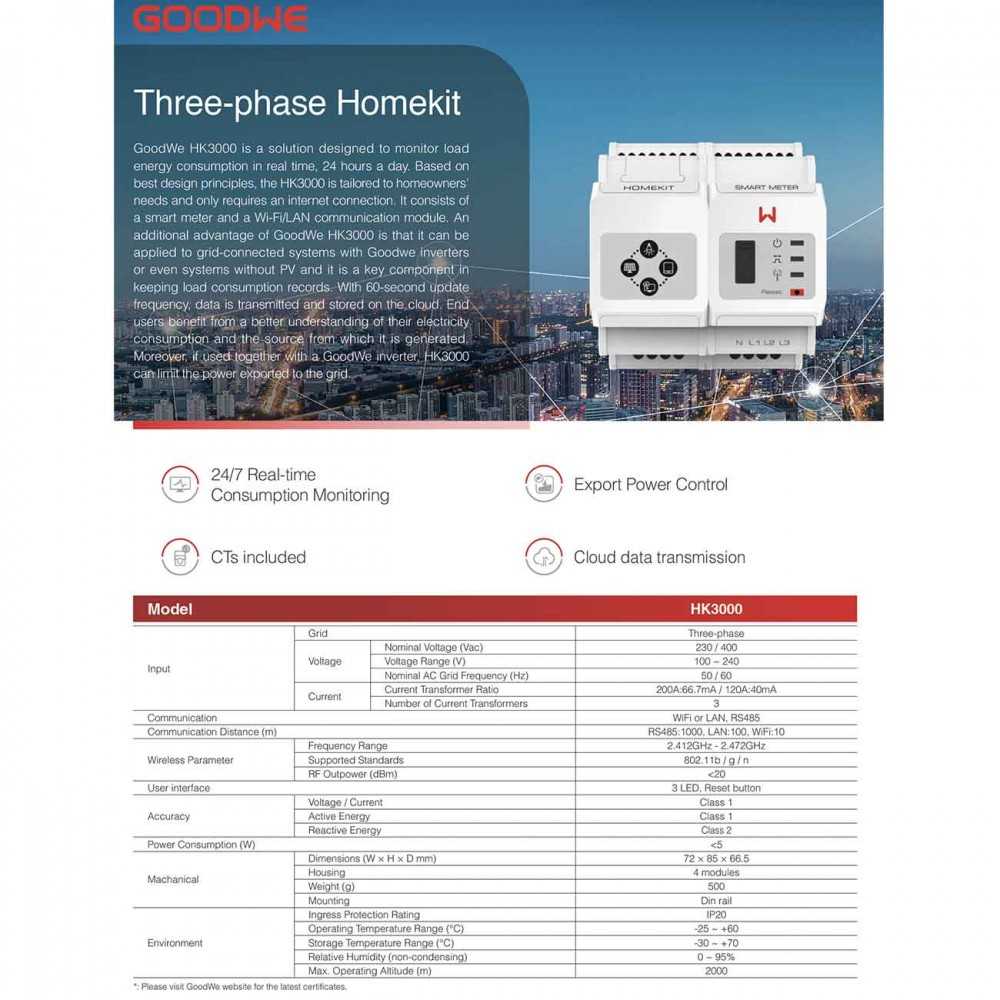

GoodWe HK3000 is a solution designed to monitor load energy consumption in real time, 24 hours a day. Based on best design principles, the HK3000 is tailored to homeowners’ needs and only requires an internet connection. It consists of a smart meter and a Wi-Fi/LAN communication module. An additional advantage of GoodWe HK3000 is that it can be applied to grid-connected systems with Goodwe inverters or even systems without PV and it is a key component in keeping load consumption records. With 60-second update frequency, data is transmitted and stored on the cloud. End users benefit from a better understanding of their electricity consumption and the source from which it is generated.
Moreover, if used together with a GoodWe inverter, HK3000 can limit the power exported to the grid.

• 24/7 real-time consumption monitoring
• Triple CT design - Super-accurate measurement
• Export power control
• Data transmission to the cloud
• Wi-Fi and LAN connection for data transmission to the cloud
• Data updates every 60 seconds
• Compatible with GoodWe inverters and non-PV systems
• Grid-fed power limiting function (with GoodWe inverters)
• Ideal for consumption analysis and optimization of home self-consumption

Triple CT Design - Super Accurate Measurement

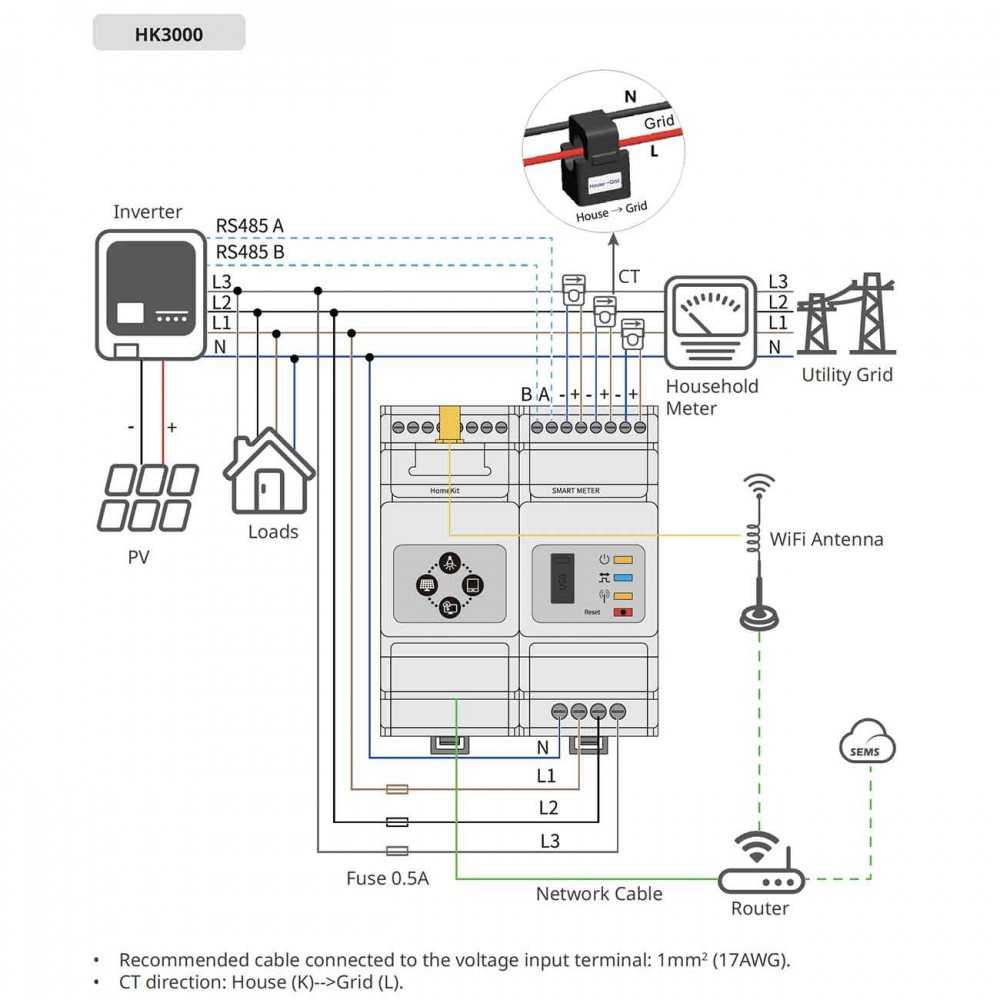

The GoodWe HK3000 HomeKit is designed to connect with three CTs (current transformers), which can measure the inverter side and the grid side simultaneously.

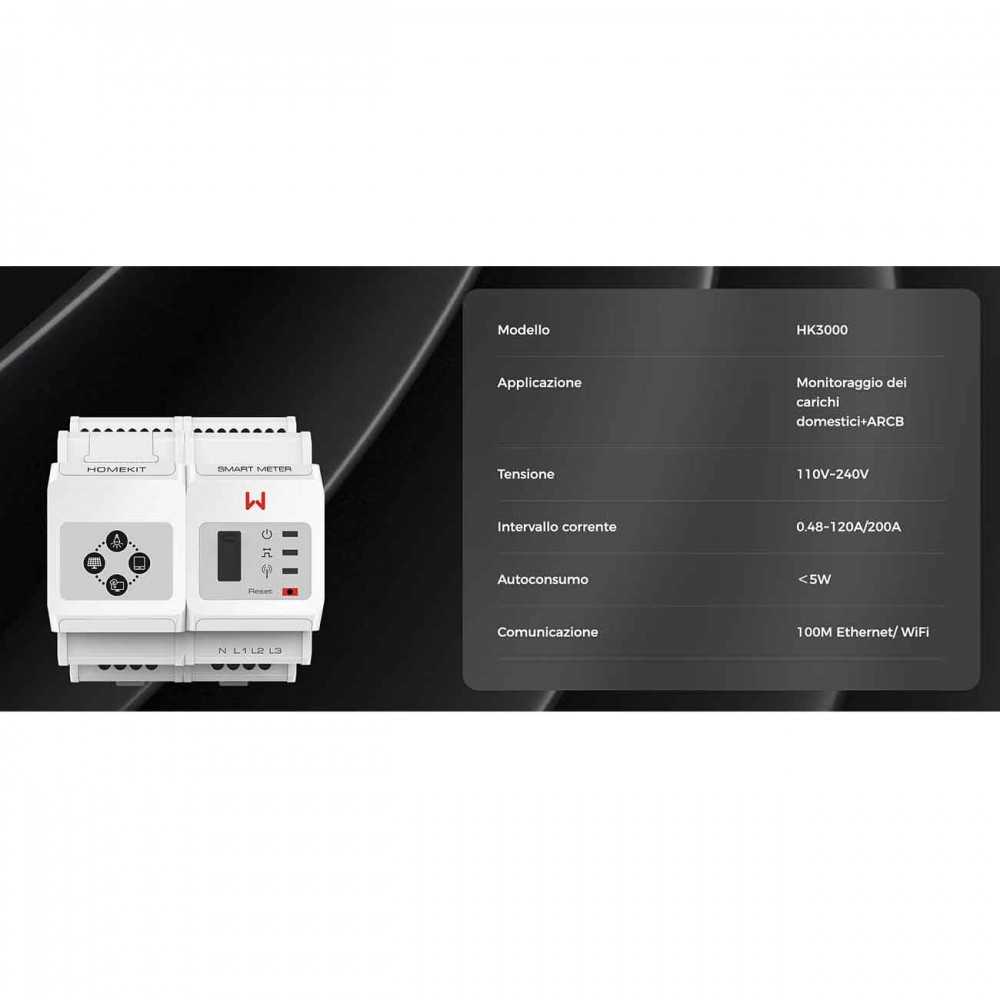

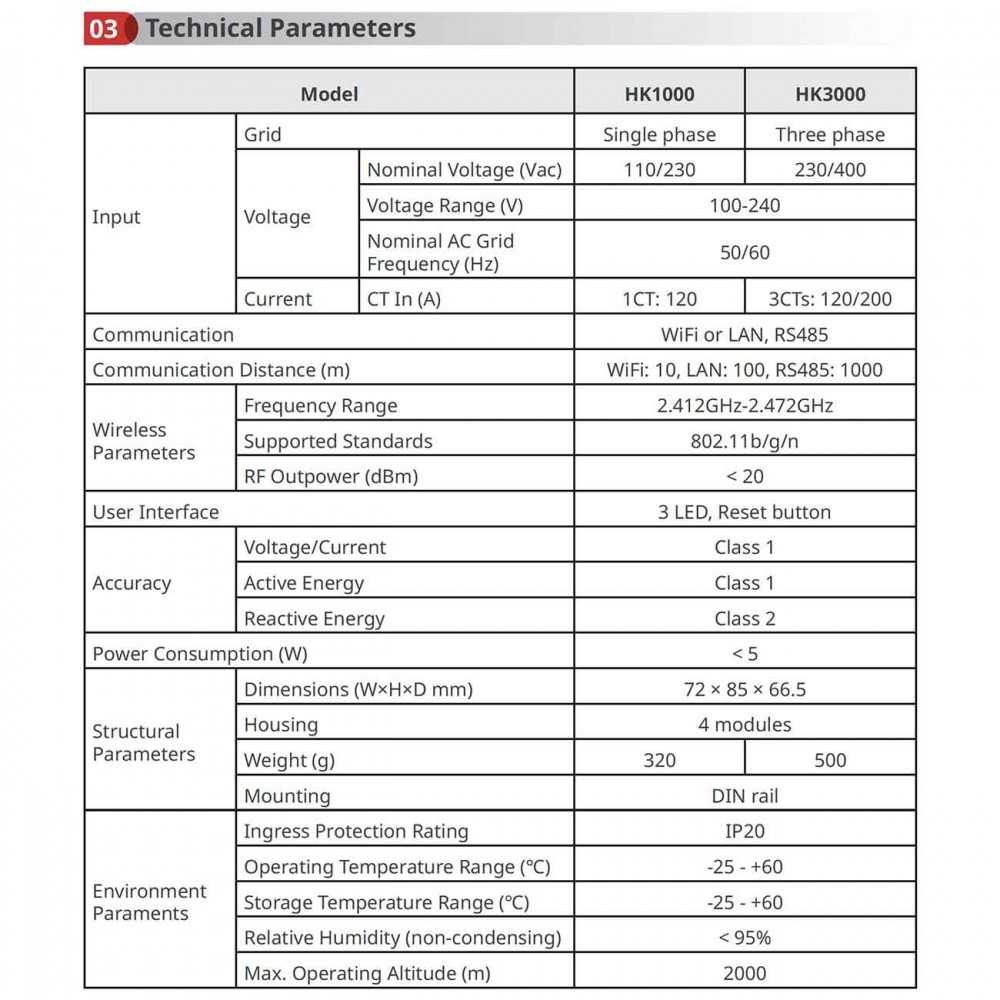

Technical Specification
Model: HK3000
Input Grid: Three-phase
Nominal Voltage: 230 / 400 Vac
Voltage Range: 100 ~ 240 V
Nominal AC Grid Frequency: 50 / 60 Hz
Current CT In (A): 3CTs: 120/200
Current Transformer Ratio: 200A:66.7mA / 120A:40mA
Number of Current Transformers: 3
Communication WiFi or LAN, RS485
Communication Distance (m): RS485:1000, LAN:100, WiFi:10
Frequency Range: 2.412GHz - 2.472GHz
Supported Standards: 802.11b / g / n
RF Outpower: <20 dBm
User interface: 3 LED, Reset button
Voltage / Current: Class 1
Active Energy: Class 1
Reactive Energy: Class 2
Power Consumption: <5 W
Mounting: Din rail
Ingress Protection Rating: IP20
Operating Temperature Range: -25 ~ +60 °C
Storage Temperature Range: -30 ~ +70 °C
Relative Humidity (non-condensing): 0 ~ 95%
Max. Operating Altitude: 2000 m

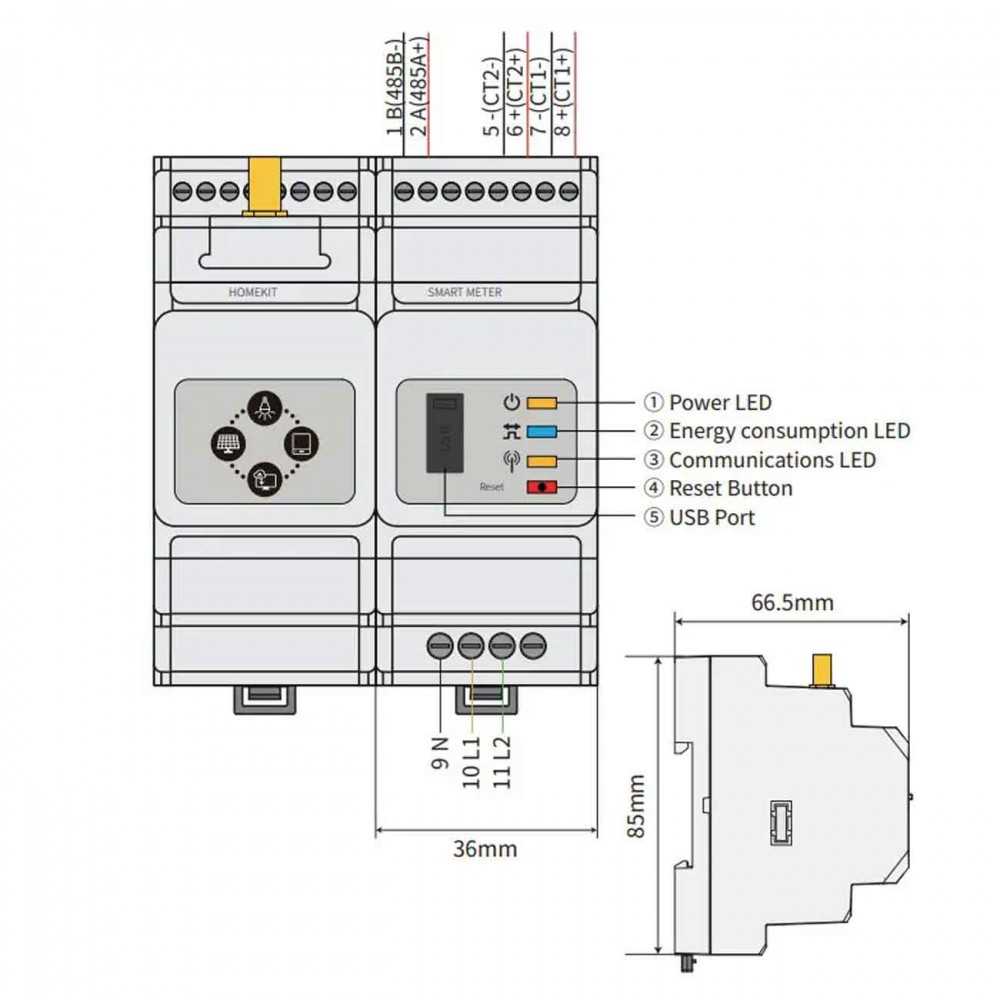

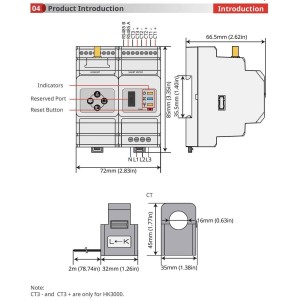

Dimensions (W × H × D): 72 × 85 × 66.5 mm
Housing: 4 modules
Weight: 500 g
