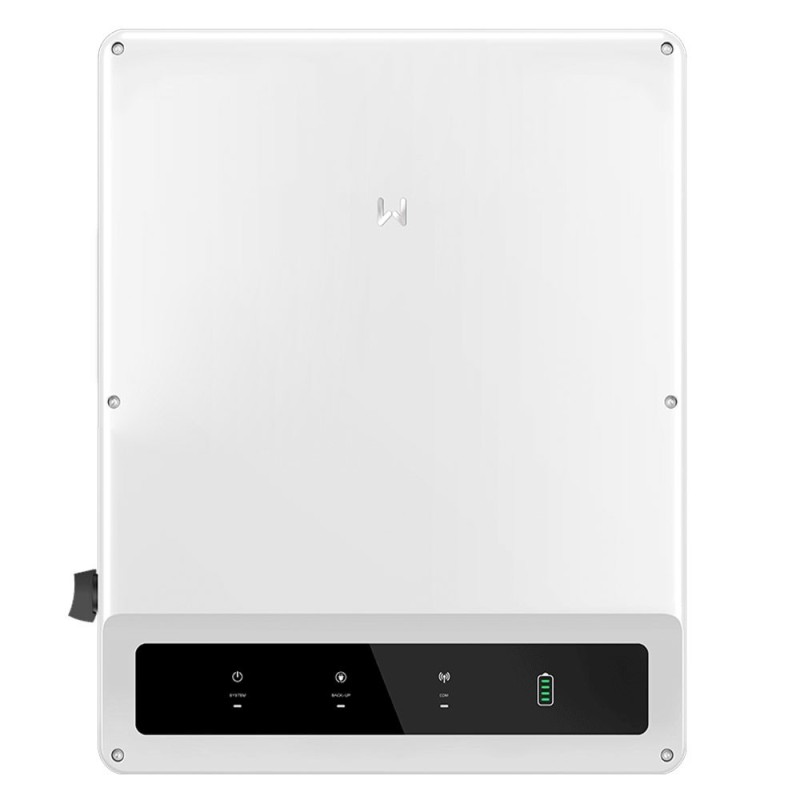

Goodwe GW29.9K-ET 29.9kW Three-phase Hybrid Inverter

Goodwe GW29.9K-ET 29.9kW Three-phase Hybrid Inverter

GoodWe GW29.9K-ET ET Series Three Phase High Voltage Hybrid Inverter with maximising energy back-up for high power PV rooftops.
The trend of increasing PV module yield is influencing overall PV system requirements. At the forefront of development, GoodWe’s ET inverters efficiently meet the needs of powerful solar rooftops to facilitate energy back-up, peak shaving and load management for optimised autonomy and reduced energy cost. The ET series can be combined with a range of battery capacities and brands, including the GoodWe Lynx Home F.
• Surge protection Type 2 on DC side
• Backup with UPS level switching < 10ms
• IP66 ingress protection
• Peak shaving

Highest safety standards
Thanks to the in-built DC type II SPD, the ET series can protect DC side from lightning strikes and save the cost of an external device.
• Built-in Type II SPD on DC side
• IP66 ingress protection

Optimised energy autonomy
100% unbalanced output to compensate load differences in self-consumption and backup modes. The UPS-level switching ability ensures the power supply security and reduce the risk of outage for critical loads.
• Wide battery voltage range (200-800V)
• Integrated dynamic power export limit and load monitoring

Smart and efficient operations
Supports multiple communication protocols for smart home integration and provides DRY contact for interaction with SG-ready heat pumps, 3rd party EV chargers or other large loads.

Technical data:
- Battery type: Li-Ion
- Battery Rated Voltage: 500 V
- Battery voltage range: 200 ~ 800 V
- Start-up Voltage: 180 V
- Number of Battery Input: 2
- Max. continuous charge current: 50x2 A
- Max. continuous discharge current: 50x2 A
- Max. charging power: 30000 W
- Max. discharge power: 30000 W
PV string input data
- Max. Input Power: 45000 W
- Max. Input Voltage: 1000 V
- MPPT Operating Voltage Range: 200~850 V
- Starting voltage: 200 V
- Rated input voltage: 620 V
- Max. input current per MPPT: 30 A
- Max. short circuit current per MPPT: 38 A;
- Number of MPPTs: 3
- Number of strings for MPPT: 2/2/2
AC side output data (on-grid)
- Nominal Output Power: 29900 W
- Nominal Apparent Power Output to Utility Grid: 29900 VA
- Max. Apparent Power Output to Utility Grid: 29900 VA
- Max. Apparent Power from Utility Grid: 33000 VA
- Nominal Output Voltage: 380/400 V, 3L/N/PE
- Nominal AC Grid Frequency: 50/60 Hz
- Max. AC Current Output to Utility Grid: 49.8 A
- Max. AC Current From Utility Grid: 50.0 A
- Power factor: ~ 1 (Adjustable from 0.8 leading to 0.8 lagging)
- Max. total harmonic distortion: <3%
AC side output data (backup)
- Back-up Nominal apparent power: 29900 VA
- Max. Output apparent power without grid: 30000 VA (36000@60sec)
- Max. Output apparent power with grid: 29900 VA
- Max. Output current: 45.5 A (54.5@60sec)
- Nominal Output Voltage: 380/400 V
- Nominal Output Frequency: 50/60 Hz
- Output THDv (with linear load): <3%
Efficiency
- Max. efficiency: 98.0%
- European efficiency: 97.5%
- Maximum. battery to AC efficiency: 97.5%
- MPPT efficiency: 99.9%
Protection
- PV insulation resistance detection: Integrated
- Residual current monitoring: Integrated
- PV reverse polarity protection: Integrated
- Anti-isolation protection: Integrated
- AC side overcurrent protection: Integrated
- AC side short circuit protection: Integrated
- AC side overvoltage protection: Integrated
- DC side switch: Integrated
- DC-side surge arrester: Type II
- AC side surge arrester: Type III
- Remote shutdown: Integrated
General data
- Operating temperature range: -35 ~ +60 °C
- Relative Humidity: 0 ~ 95%
- Max. operating altitude: 4000 m
- Cooling method: Smart Fan Cooling
- User interface: LED, WLAN + APP
- Communication with BMS: RS485; CAN
- Communication with meter: RS485
- Communication with portal: WiFi / 4G
- Weight: 54 kg
- Dimensions (W×H×D): 520×660×220 mm
- Topology: Non-Isolated
- Night power consumption: <15 W
- Noise Emission: <60 dB
- Ingress protection degree: IP66
- Installation type: Wall mounting.

For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
