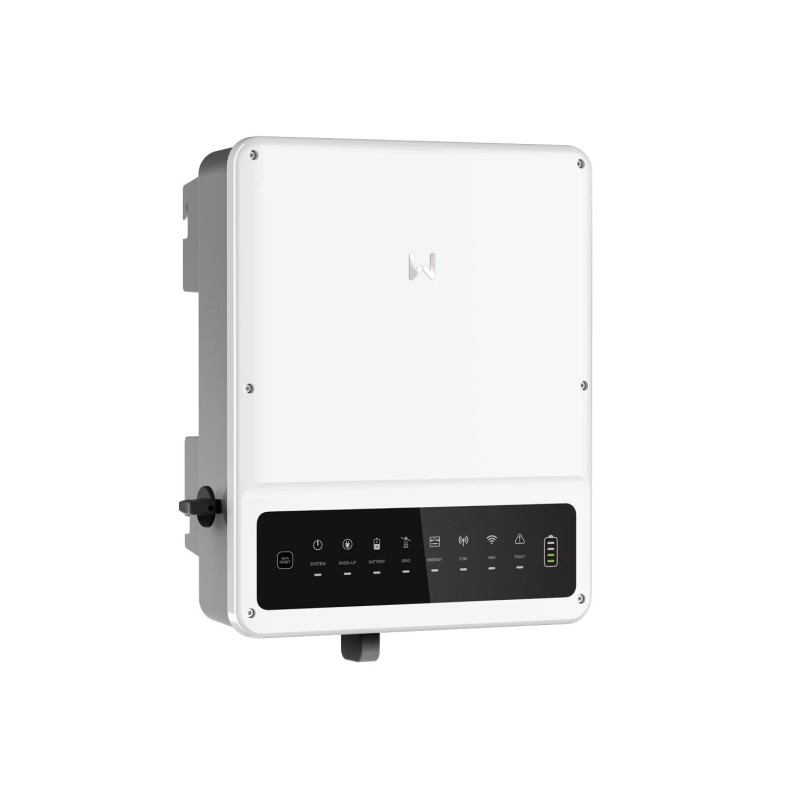

Goodwe GW6000N-EH 6kW Single-Phase Hybrid Inverter

Goodwe GW6000N-EH 6kW Single-Phase Hybrid Inverter

Efficient solar energy storage solutions are essential for increasing energy self-sufficiency levels. The EH PLUS+ inverter is designed to maximize energy yield, optimize self-consumption, facilitate peak shaving and provide emergency energy. With a modern design that requires no cooling fan, operation is quiet and reliable. A battery-ready version of the inverter is available. The EH PLUS+ series is compatible with a wide range of batteries, including GoodWe's Lynx Home F.

Improving energy independence for PV roof owners
• High backup power
• UPS level switching <10ms
• Intelligent integration into the home environment

Optimized energy autonomy
High backup output power with overload capability. The wide battery voltage range (85-450V) supports different battery capacities and powers.

Wide range of battery voltages
Integrated dynamic power export limitation and load monitoring

Maximum safety standards
The metal aluminum housing with IP65 degree of protection protects the inverter and allows it to be installed both indoors and outdoors.
• IP65 degree of protection
• High quality components

Specific characteristics:
Battery input data
- Battery type: Lithium Ion
- Battery Rated Voltage: 350V
- Battery voltage range: 85~460V
- Max. continuous charge current: 25A
- Max. continuous discharge current: 25A
- Max. charging power: 6000W
- Max. discharge power: 6000W
PV string input data
- Max. input voltage: 580V
- MPPT Operating Voltage Range: 100~550V
- Starting voltage: 90V
- Rated input voltage: 380V
- Max. input current for MPPT: 16A
- Max. short circuit current for MPPT: 21.2 A;
- Number of MPP trackers: 2
- Number of strings for MPPT: 1
AC side output data (on-grid)
- Nominal apparent power output on mains: 6000 VA
- Max. apparent power output on mains: 6000/6600 VA
- Max. apparent power from mains: 12000 VA (6kW recharge, 6kW backup output)
- Rated output voltage: 230/220
- Rated network frequency AC side: 50/60 Hz
- Max. AC side current output on mains: 26.1/28.7 A
- Max. AC side current from mains: 52.2 A
- Output power factor: ~ 1 (adjustable from 0.8 capacitive to 0.8 inductive)
- Max. total harmonic distortion: <3%
AC side output data (back-up)
- Nominal apparent backup power: 6000 VA
- Max. apparent output power: 6000 VA (7200@60s)
- Max. output current: 26.1A
- Rated output voltage: 230V (±2%)
- Nominal output frequency: 50/60Hz (±0.2%)
- Output THDv (with linear load): <3%
Efficiency
- Max. efficiency: 97.6%
- European efficiency: 97.0%
- Maximum. battery to AC efficiency: 96.6%
- MPPT efficiency: 99.9%
Protection
- PV insulation resistance detection: Integrated
- Residual current monitoring: Integrated
- Battery reverse polarity protection: Integrated
- PV reverse polarity protection: Integrated
- Anti-isolation protection: Integrated
- AC side overcurrent protection: Integrated
- AC side short circuit protection: Integrated
- AC side overvoltage protection: Integrated
- DC-side surge arrester: Type II
General data
- Operating temperature range: -25 ~ +60°C
- Relative Humidity: 0 ~ 95%
- Max. operating altitude: 3000m
- Cooling method: Natural convection
- User interface: LED, APP
- Communication with BMS: RS485; CAN
- Communication with meter: RS485
- Communication with portal: WiFi / Ethernet (Optional)
- Weight: 17kg
- Dimensions (W×H×D): 354x433x147 mm
- Topology: Non-Isolated
- Night power consumption: <10
- Ingress protection degree: IP65
- Installation type: Wall mounting.

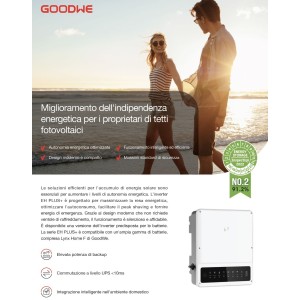

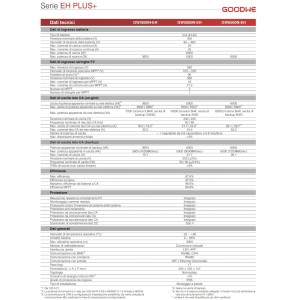

For more details, we recommend that you view the manufacturer's technical data sheet (photo).
