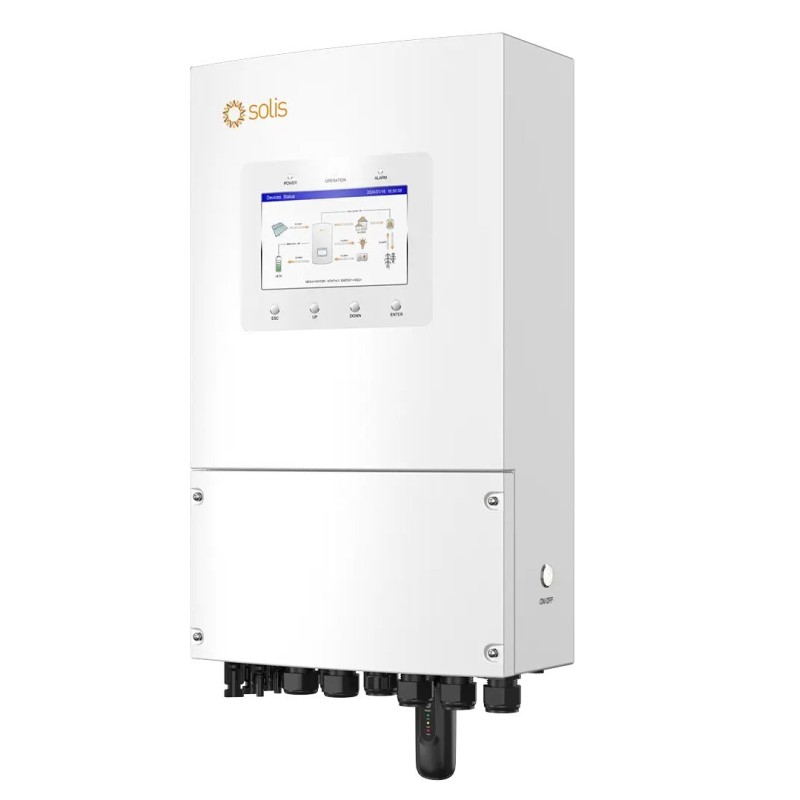

Solis S6-EH1P6K-L-PLUS 6kW 12000W Single-Phase Hybrid Inverter 2MPPT Backup
S6-EH1P6K-L-PLUS series energy storage inverter is suitable for residential PV energy storage system, support up to 32A MPPT current input, suitable for various high power PV panels; 6-stage timed charge and discharge function, integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW. With UPS switching and provides an independent generator interface to make energy applications more reliable. The product provides solutions for demanding power scenarios with residential energy storage systems.
• Generator-compatible to extend backup duration during grid power outage
• Multiple inverters can operate together to form a microgrid
• Supports dual backup ports for intelligent control of critical and non-critical loads
• 10 seconds of 200% overload capability
• Automatic switchover time is <4ms, providing seamless transitions from grid to backup
• Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuationsps

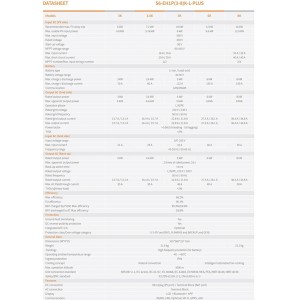

Technical specifications
DC input
Recommended photovoltaic power: 12 kW
Max. usable PV input power: 9.6 kW
Absolute maximum voltage: 500 V
Rated Voltage: 330 V
Starting Voltage: 90 V
MPPT Voltage Range: 90-435V
Maximum input current: 16 A / 16 A
Maximum short circuit current: 20 A / 20 A
Maximum MPPT number/Number of strings: 2/2
Battery
Battery type: Li-ion / Lead-acid;
Battery voltage range: 40 - 60 V;
Max. charge / discharge power: 6 kW;
Max. charge / discharge current: 135 A;
Communication: CAN/RS485
Output AC (Grid side)
Rated output power: 6 kW
Max. apparent output power: 6 kVA
Operation phase: L/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 27.3 A / 26.1 A
Max. output current: 27.3 A / 26.1 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Input AC (Grid side)
Input voltage range: 187-253 V
Max. input current: 40 A
Frequency range: 45-55 Hz / 55-65 Hz
Output AC (Back-up)
Rated output power: 6 kW
Max. apparent output power: 2 times of rated power, 10 s
Back-up switch time: <4 ms
Rated output voltage: L/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 27.3 A / 26.1 A
Max. output current: 40 A
THDv (@linear load): <2%
Efficiency
Maximum efficiency: 96.2%
EU efficiency: 96.1%
BAT charged by PV/AC Max. efficiency: 95.3%/93.9%
BAT discharged to AC Max. efficiency: 93.8%
Protection
Ground fault monitoring: Yes
DC reverse-polarity protection: Yes
Integrated AFCI: optional
Protection class/Over voltage category:I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General data
Dimensions (WxHxD): 335x560x227 mm
Weight: 21.6 kg
Topology: Hight frequency isolation (for Battery)
Operating environment temperature range: -40 ~ +60°C
Degree of protection: IP66

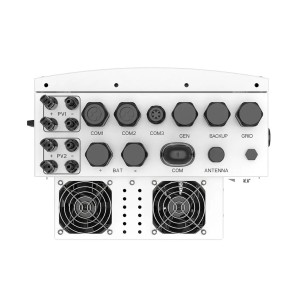

Cooling method: Intelligent redundant fan-cooling
Maximum operating altitude: 3000m

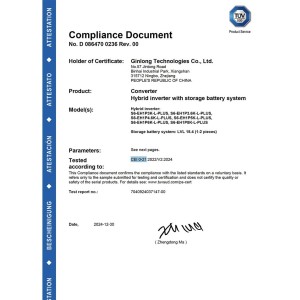

Safety/EMC standards: IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard: CEI 0-21, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
Characteristics

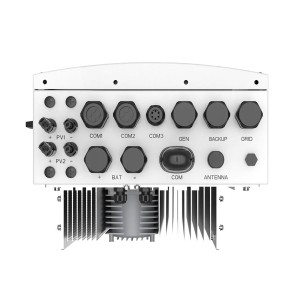

DC connection: MC4 plug (PV port) / Terminal Block (BAT port)
AC connection: Terminal Block
Screen: LCD + Bluetooth + APP
Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN
