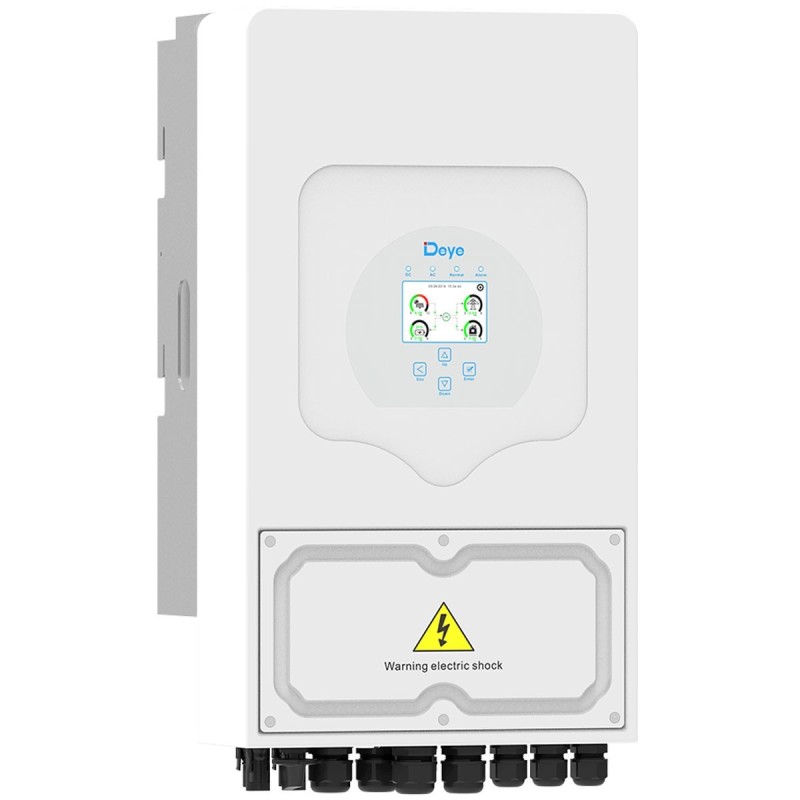

Deye SUN-6K-SG03LP1-EU 6kW Single-Phase Hybrid Inverter LV CEI-021
Deye SUN-6K-SG03LP1-EU hybrid PV inverter is suitable for residential PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.
During the day, the PV system generates electricity which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.
The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.
With the intelligent monitoring platform, Deye SUN 6K SG03LP1 EU inverters support immediate remote shutdown in the event of an accident.
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
• Colorful touch LCD, IP65 protection degree
• AC couple to retrofit existing solar system
• Max. 16 pcs parallel for on-grid and off-grid operation, support multiple batteries parallel
• Max. charging/discharging current of 135A
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

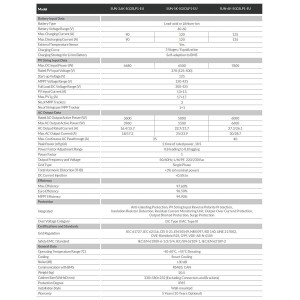

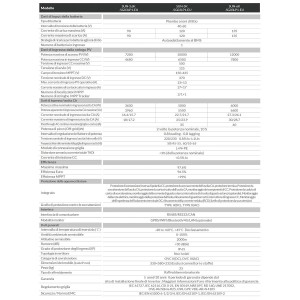

TECHNICAL SPECIFICATIONS
Model: SUN-6K-SG03LP1-EU
Battery Input Data
Battery Type: Lead Acid or Lithium Ion
Battery Voltage Range: 40-60 V
Maximum Charge Current: 135 Ah
Maximum Discharge Current: 135 Ah
External Temperature Sensor: Yes
Charging Curve: 3 stages/ equalization
Charging Strategy for Lithium Ion Battery: Self-adaptation to BMS
Number of Input Battery: 1
PV String Input Data
Maximum PV Access Power: 12000 W
Maximum DC Input Power: 7800 W
Maximum DC Input Voltage: 500 V
Starting Voltage: 125 V
MPPT Voltage Range: 150-425 V
Nominal DC Input Voltage: 370 V
Max. Operating PV Input Current: 13+13 A
Maximum Input Short Circuit Current: 17+17 A
Number of MPP Trackers/Number of MPP Tracker Strings: 2/1+1
AC Output Data
Rated AC Input/Output Active Power: 6000 W
Maximum AC Input/Output Apparent Power: 6600 WA
Rated AC Input/Output Current: 27.3/26.1 A
Maximum AC Input/Output Current: 30/28.7 A
Maximum Continuous AC Passthrough(grid on load): 40 A
Peak Power (Off-grid): 2 times rated power, 10 S
Power Factor Adjustment Range: 0.8 leading - 0.8 legging
Rated Input/Output Voltage/Range: 220/230 V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range: 50/45-55, 60/55-65 Hz
Grid Connection Module: L+N+PE
Grid Type: Single-Phase
Total Current Harmonic Distortion THDi: <3% (of rated power)
DC injection current: <0.5% In
Efficiency
Maximum: 97.6%
Euro efficiency: 96.5%
MPPT efficiency: <99%
Protection
Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage category: TYPE II(DC), TYPE II(AC)
Interface
Communication Interfase: RS485//RS232/CAN
Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Cooling Type: Smart Cooling
Noise: <30 dB
Communication with BMS: RS485/CAN
Cabinet Dimensions (WxHxD): 330×580×232 mm (Excluding connectors and brackets)
Weight: 25 kg
Ingress Protection Rating: IP 65
Installation style: wall-mounted
Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

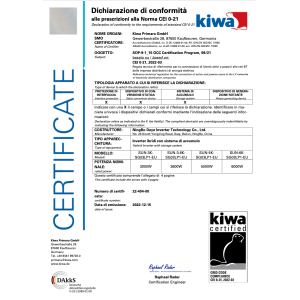

Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
