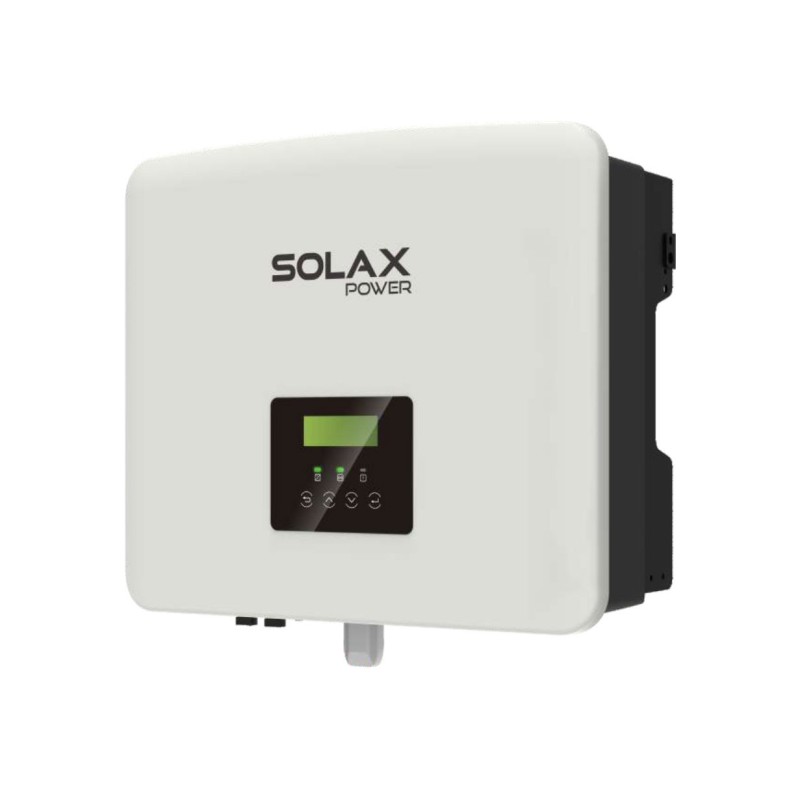

Solax Power X1-HYBRID-6.0-D G4 6kW Single-phase Hybrid Inverter
The X-Hybrid battery storage inverter is compatible with the leading lithium-ion battery solutions available on the market today making it the most popular energy storage solution.
Generate solar power during the day for use in the home, when the background load is satisfied, charge your
batteries with free, clean solar energy. Discharge your stored energy during the evening when the sun has gone down, charge your batteries back up over night on a cheaper tariff.
With the SolaX X-Hybrid you can ensure that you never go without power, even during a power-cut. An emergency power supply or ‘EPS’ switch (only available on ‘E’ models) enables the X-Hybrid to work completely off-grid, meaning that any power you have stored on your batteries will now be used in the event of a power cut.
With the X-Hybrid you can easily set your power export limits based on local requirements. The X-Hybrid comes with built-in export control, allowing you to manage the power you generate, exactly how you want to.
• IP65 Rated
• Charge From Grid
• Online Monitoring
• 6000W Charge/Discharge Rate
• Increase Self Consumption of solar power
• 'Plug & Play' Installation
Technical data:
DC INPUT
Max. PV array input power: 9,000 Wp
Max DC voltage: 600 V
Nominal DC operating voltage: 360 V
Max. input current (input A/input B): 14/14 A
Max. short circuit current (input A/input B): 16/16 A
MPPT voltage range: 70-550 V
Start operating voltage: 90 V
No. of MPP trackers/Strings per MPP tracker: (2/1)
AC INPUT
Max. apparent AC power: 9,200 VA
Max. AC current: 40 A
Nominal grid voltage (AC voltage range): 220/230240 V (180-270 V)
Nominal grid frequency/range: 50/60 Hz
AC OUTPUT
Nominal AC power: 6,000 VA
Max. apparent AC power: 6,600 VA
Nominal grid voltage (AC voltage range): 220/230240 V (180-270 V)
Nominal grid frequency/range: 50/60 Hz
Max AC current: 28.6 A
Displacement power factor: 0.8 leading~0.8 lagging
THDi (rated power): <2%
BATTERY DATA
Battery type: Li-ion
Battery voltage range: 80-480 V
Max. continuous charge/discharge current: 30 A
Communication interfaces: CAN/RS485
Reverse connect protection: Yes
OFF-GRID OUTPUT (WITH BATTERY)
MAX. continuous apparent power: 6000 VA
Rated voltage, frequency: 230V, 50/60Hz
MAX.continuous current: 26.1 A
Peak apparent power (rated), duration: 120% rated, 10 mins
Switching time: internal switch <10ms, external switch <100ms
THDv, linear Load: <2%
EFFICIENCY
MPPT efficiency: 99.9%
Max. efficiency: 97.6%
Euro. efficiency: 97.0%
Battery charge/discharge effciency: 97.0/97.0 %
SYSTEM DATA
Display: LCD
Standby consumption: <3W
Degree of protection: IP65
Operating temperature range: -35~60°C (Derating above +45°C)
Max. operation altitude: <3000m
Relative humidity: 0~100%
Typical noise emission: <30 dB
Storage temperature: -40 ~ +70°C
Dimensions (W×H×D): 482x417x181 mm
Net weight: 22 kg
Cooling concept: Natural cooling
Communication interfaces: CT/Meter/External contrai RS485/Pocket Series(optional)/DRM/USB Upgrade
STANDARD
Safety: IEC621O9-1 / IEC62109-2
EMC: EN 610OO-6-12OO7 /EN 61000-6-2 2OO5/EN 61OOO-6-3/EN 61OOO-6-4/EN610OO-3-2/EN610OO-3-3/EN 61OOO-3-11/EN610OO-3-12
Certification: VDE 0126-1-1 A12O12 / VDE41O5 2O18 /G99 /G98 / AS4777 / EN5O549/ CEI O-21 /RD661/RD1699/UNE2O6OO7-1/VDE0216/VFR2O19
Warranty: 10 years.
For more details, we recommend that you view the manufacturer's technical data sheet.
