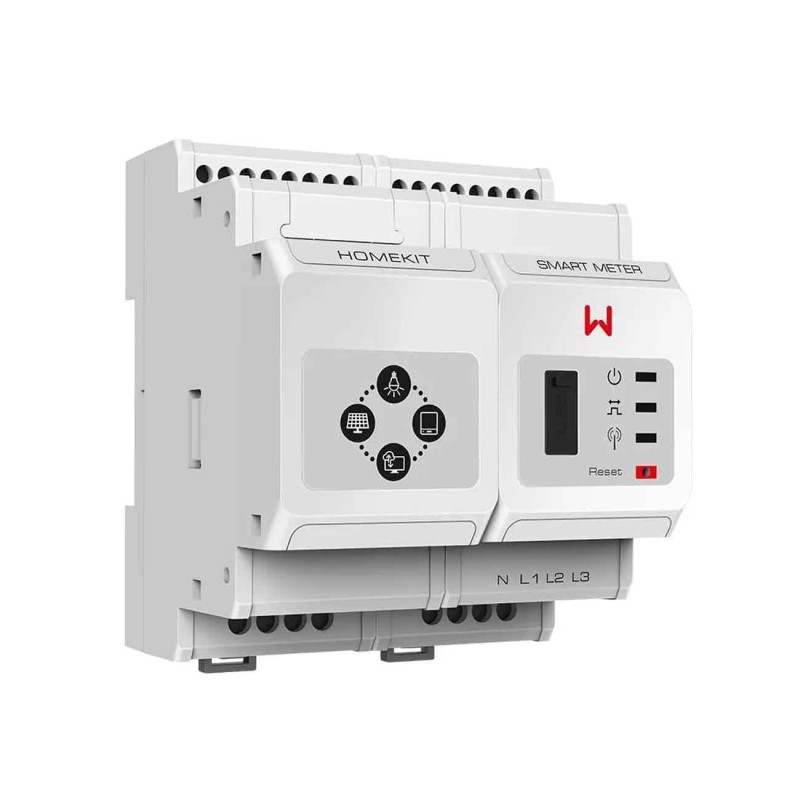

GoodWe HomeKit HK1000 120A 40mA 110/230Vac HomeKit Single-Phase Smart Power Sensor
The GoodWe HomeKit HK1000 is an advanced solution designed for real-time monitoring of household energy consumption, operating 24 hours a day. Developed according to high-quality design standards, the HomeKit is tailored for residential use and requires only an Internet connection to function.
The system consists of a smart energy meter and a communication module with Wi-Fi and LAN, allowing continuous data transmission to the cloud with a 60-second refresh rate.
One of the key strengths of the HomeKit HK1000 is its broad compatibility: it can be installed on grid-connected systems equipped with inverters from any brand, as well as on installations without photovoltaic systems. This makes it an essential tool for accurate recording and detailed analysis of household electricity consumption.
By collecting and storing real-time data, users gain a clear and precise understanding of their energy usage and the source from which the electricity is generated. Additionally, when used together with a GoodWe inverter, the HomeKit can limit the power exported to the grid, helping to optimize self-consumption and comply with local regulations.
• 24/7 real-time energy consumption monitoring
• Wi-Fi and LAN connectivity for cloud data transmission
• Data refresh every 60 seconds
• Compatible with inverters of any brand and systems without PV
• Export power limitation function (when used with GoodWe inverter)
• Ideal for energy analysis and self-consumption optimization in residential systems

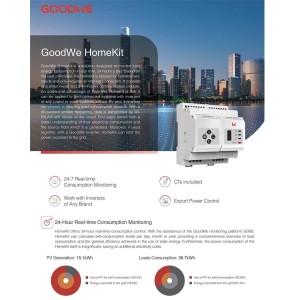

24-hour real-time consumption monitoring
HomeKit offers 24-hour real-time consumption control. With the assistance of the GoodWe monitoring platform SEMS, HomeKit can calculate self-consumption levels per day, month or year, providing a comprehensive overview of load consumption and the general effciency achieved in the use of solar energy. Furthermore, the power consumption of the HomeKit itself is insignificant, saving on additional electricity costs.
GoodWe HomeKit for homes without PV

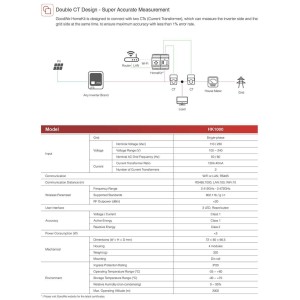

Dual CT design - super-accurate measurement

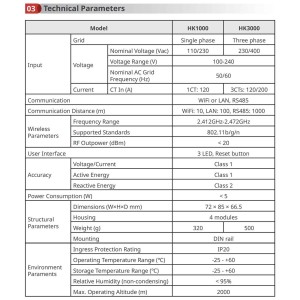

Technical Specification
Model: HK1000
Input Grid: Single phase
Nominal Voltage: 110 / 230 Vac
Voltage Range: 100 ~ 240 V
Nominal AC Grid Frequency: 50 / 60 Hz
Current CT In (A): 1CT: 120
Current Transformer Ratio: 120A:40mA
Number of Current Transformers: 2
Communication WiFi or LAN, RS485
Communication Distance (m): RS485:1000, LAN:100, WiFi:10
Frequency Range: 2.412GHz - 2.472GHz
Supported Standards: 802.11b / g / n
RF Outpower: <20 dBm

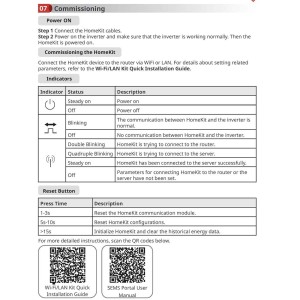

User interface: 3 LED, Reset button
Voltage / Current: Class 1
Active Energy: Class 1
Reactive Energy: Class 2
Power Consumption: <5 W
Mounting: Din rail
Ingress Protection Rating: IP20
Operating Temperature Range: -25 ~ +60 °C
Storage Temperature Range: -30 ~ +70 °C
Relative Humidity (non-condensing): 0 ~ 95%
Max. Operating Altitude: 2000 m

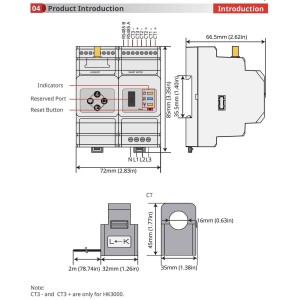

Dimensions (W × H × D): 72×85×66.5 mm
Housing: 4 modules
Weight: 320 g
