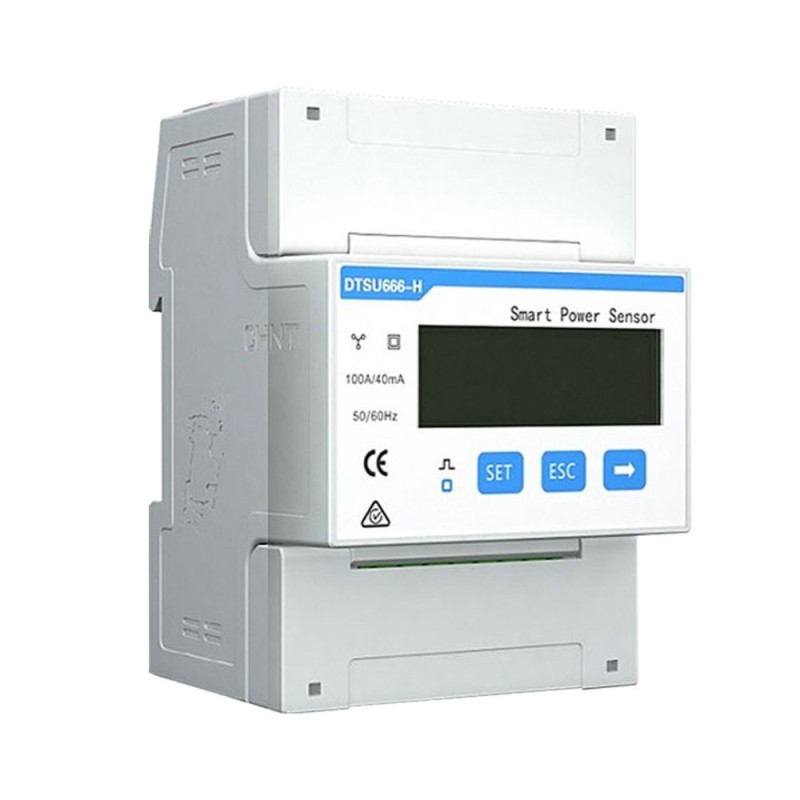

Huawei DTSU666-H 250A 50mA 3-Phase Smart Power Sensor

Huawei DTSU666-H 250A 50mA Three-Phase Smart Power Sensor

Huawei Solar three-phase meter equipped with LCD display. To be used for the connection between the single-phase Huawei SUN2000 inverter and the batteries. It allows to measure the flow of electricity in photovoltaic systems. Calculate and record the input and output data from the energy grid.
•  Class 1 measurement accuracy
•  LCD display, easy to set and check
•  Overall power consumption ≤1 W

Technical Specification
Model: DTSU666-H;
Power Grid type: three-phase 3P4W/3P3W;
Input voltage: 176Vac ~ 288Vac;
Power Consumption: ≤1W;
Line voltage: 304 Vac ~ 499 Vac;
Current: 0~100A;
Measurement Accuracy Class: 1.
Communication
Interface: RS485;
Baud rate: 9,600bps;
Communication protocol: Modbus-RTU;
Operating temperature: -25°C ~ 60°C;
Operating Humidity: 5%RH ~ 95%RH (non-condensing);
Dimensions (LxWxD): 100x72x65.5 mm;
Mounting Type: DIN35 Rail;
Weight (including cables): 1.5 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
