Huawei SUN2000-100KTL-M2 100kW Three-phase PV string Inverter AFCI

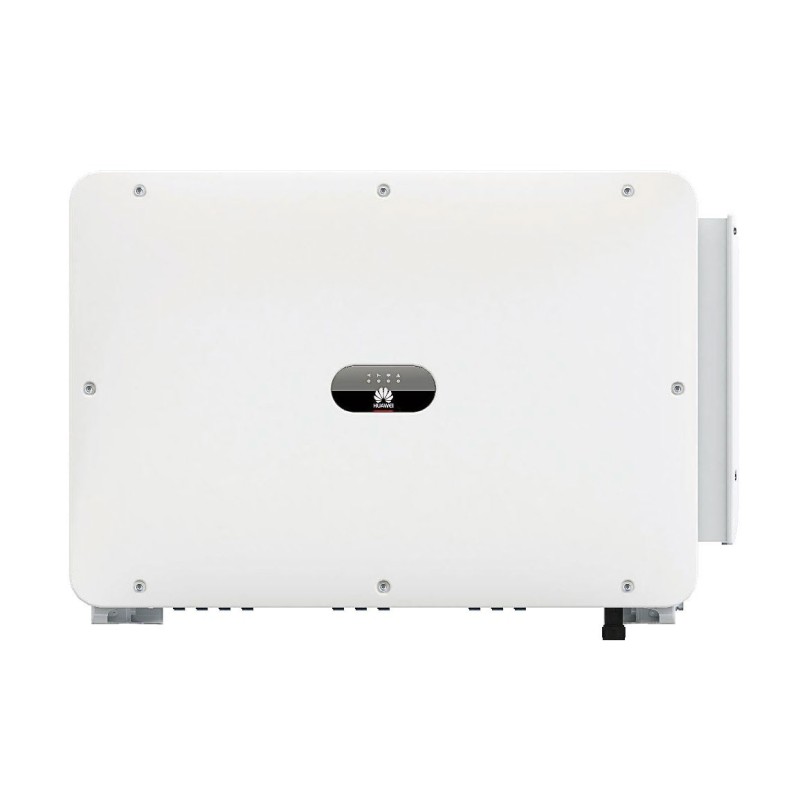

Huawei SUN2000-100KTL-M2 three-phase string inverter with grid injection 100 kW IP66 Three-phase is a device that converts the direct current supplied by the solar panels of a photovoltaic system into alternating current with three-phase output for the consumption of commercial or industrial premises. It is produced by the prestigious brand Huawei, a leading company in the production of photovoltaic, telecommunications, telephone, etc. equipment.
It has 10 MPPT (Maximum Power Point Tracking) trackers, a technology that ensures the optimal balance between voltage and current so that the solar panels operate at maximum power. It is worth noting that although the power factor of this inverter is 0.8, its efficiency is 98.6%, making it one of the best performing inverters on the market.
This type of grid-connected inverter is the simplest because it only works when it receives sunlight. They are connected to the grid and generate a signal of the same frequency to inject the energy produced by the solar panels into the grid.
Grid injection inverters are specially designed for industries that already have a grid connection. The inverter can directly supply the energy generated by the photovoltaic panels to the industrial electrical system. At night, when there is no energy production, the inverter remains off. The next day, when the sun shines, it turns on automatically. Grid-connected photovoltaic systems are the most convenient because they allow you to save on your electricity bill with a very low investment.
Technical Specification
Max. efficiency 98.6%@ 400 V, 98.8% 480 V
European efficiency: 98.4%@ 400 V, 98.6% 480 V
Input
Max. Input Voltage: 1,100 V
Max. Current per MPPT: 30 A
Max. Current per Input: 20 A
Max. Short Circuit Current per MPPT: 40 A
Start Voltage: 200 V
MPPT Operating Voltage Range: 200 V ~ 1,000 V
Nominal Input Voltage: 600 V @ 400 Vac , 720 V @ 480 Vac
Number of MPP trackers: 10
Max. input number per MPP tracker: 2
Output
Nominal AC Active Power: 100,000 W
Max. AC Apparent Power: 110,000 VA
Max. AC Active Power (cosφ= 1): 110,000 W
Nominal Output Voltage: 380 V/ 4 0 0 V/ 4 8 0 V, 3W+(N)+PE
Rated AC Grid Frequency: 50 Hz / 60 Hz
Nominal Output Current: 144.4 A @ 400 V, 120.3 A @ 480 V
Max. Output Current: 160.4 A @ 400 V, 133.7 A @ 480 V
Adjustable Power Factor Range: 0.8 leading... 0.8 lagging
Max. Total Harmonic Distortion: ＜3%
Protection
Input-side Disconnection Device: Yes
Anti-islanding Protection: Yes
AC Overcurrent Protection: Yes
DC Reverse polarity Protection: Yes
PV array String Fault Monitoring: Yes
DC Surge Arrester Type: II
AC Surge Arrester Type: II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit: Yes
Arc Fault Protection: Yes
Smart String Level Disconnector: Yes
Communication
Display: LED indicators; WLAN adaptor FusionSolar APP
RS485: Yes
USB: Yes
Smart Dongle 4G: Smart Dongle 4G / WLAN (optional)
Monitoring BUS (MBUS): Yes (isolation transformer required)
General Data
Dimensions (W x H x D): 1035x700x365 mm
Weight (with mounting plate): 93 kg
Operating Temperature Range: -25°C ~ 60°C
Cooling Method: Smart Air Cooling
Max. Operating Altitude: 4,000 m (13,123 ft.)
Relative Humidity: 0 ~ 100%
DC Connector: Amphenol Helios H4
AC Connector: Waterproof Connector + OT/DT Terminal
Protection Degree: IP66
Topology: Transformerless
Nighttime Power Consumption <3.5 W
Standard Compliance (more available upon request)
Certificate: EN 62109 1/ 2, IEC 62109 1/ 2, EN 50530, IEC 62116, IEC 61727, IEC 60068, IEC 61683
Grid Connection Standards: VDE AR N4105, EN 50549 1, EN 50549 2, RD 661, RD 1699, C10/11
