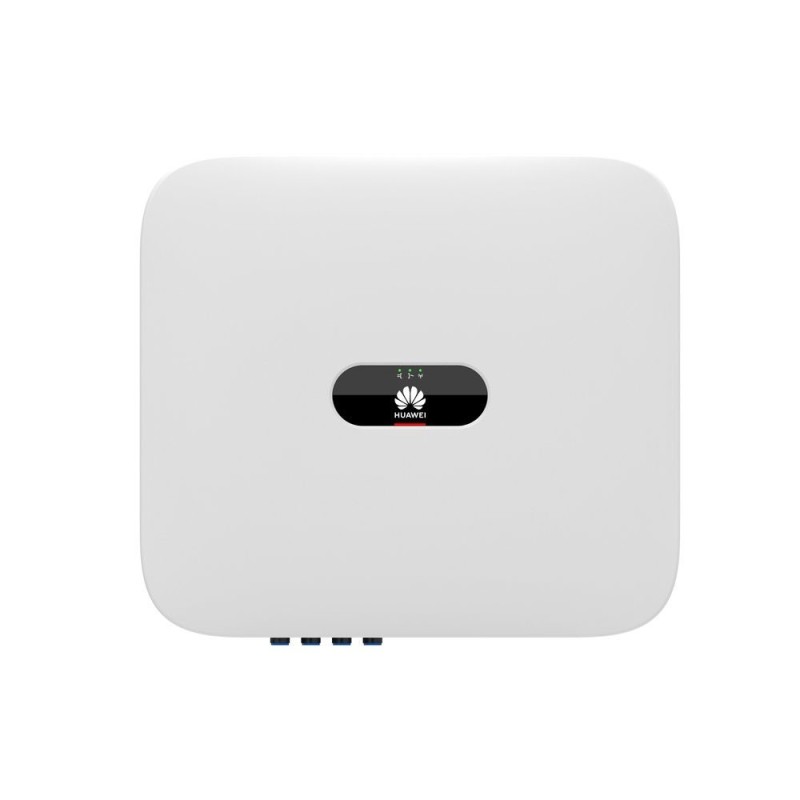

Huawei SUN2000-17KTL-M5 17kW Three-phase string Inverter 2 MPPT 17000W
Huawei SUN2000-17KTL-M5 three-phase string inverter with grid injection 17 kW IP66 Three-phase is a device that converts the direct current supplied by the solar panels of a photovoltaic system into alternating current with three-phase output for the consumption of commercial or industrial premises. It is produced by the prestigious brand Huawei, a leading company in the production of photovoltaic, telecommunications, telephone, etc. equipment.
It has 4 MPPT (Maximum Power Point Tracking) trackers, a technology that ensures the optimal balance between voltage and current so that the solar panels operate at maximum power. It is worth noting that although the power factor of this inverter is 0.8, its efficiency is 98.4%, making it one of the best performing inverters on the market.
This type of grid-connected inverter is the simplest because it only works when it receives sunlight. They are connected to the grid and generate a signal of the same frequency to inject the energy produced by the solar panels into the grid.
Grid injection inverters are specially designed for industries that already have a grid connection. The inverter can directly supply the energy generated by the photovoltaic panels to the industrial electrical system. At night, when there is no energy production, the inverter remains off. The next day, when the sun shines, it turns on automatically. Grid-connected photovoltaic systems are the most convenient because they allow you to save on your electricity bill with a very low investment.
Active Safety AI Powered Arcing Protection
Flexible Communication WLAN, Fast Ethernet, 4G, Communication Supported
Higher Yields Up to 30% More Energy with Optimizer
Technical Specification
Max. efficiency 98.4%;
European efficiency: 98.1%.
Input
Recommended max PV power: 25,500 Wp;
Max. Input Voltage: 1,100 V
Full-load MPPT voltage range: 440 V ~ 800 V;
MPPT Operating Voltage Range: 200 V ~ 1,000 V;
Start Voltage: 200 V;
Nominal Input Voltage: 600 V;
Max. Input Current per MPPT: 30 A (two string) / 20 A (single string);
Max. Short Circuit Current per MPPT: 40 A;
Number of MPP Tracker: 2;
Max Number of Inputs: 4.
Output
Nominal AC Active Power: 17,000 W;
Max. AC Apparent Power: 18,700 VA;
Nominal Output Voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239,6 Vac / 415 Vac, 3W+N+PE;
Rated AC Grid Frequency: 50 Hz / 60 Hz;
Max. Output Current: 28,6 A / 380 Vac, 27,1 A / 400 Vac, 26,1 A / 415 Vac;
Adjustable Power Factor Range: 0.8 leading... 0.8 lagging;
Max. Total Harmonic Distortion: ≤3%.
Communication
Display: LED indicators; WLAN integrated, FusionSolar APP;
RS485: Yes;
Smart Dongle: WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional)
General Data
Dimensions (WxHxD): 546x460x228 mm;
Weight (with mounting plate): 21 kg;
Operating Temperature Range: -25°C ~ 60°C;
Relative Humidity: 0 ~ 100%;
Cooling Method: smart air cooling;
Max. Operating Altitude: 4,000 m (13,123 ft.) (Derating above 2000 m);
Protection Degree: IP66.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
