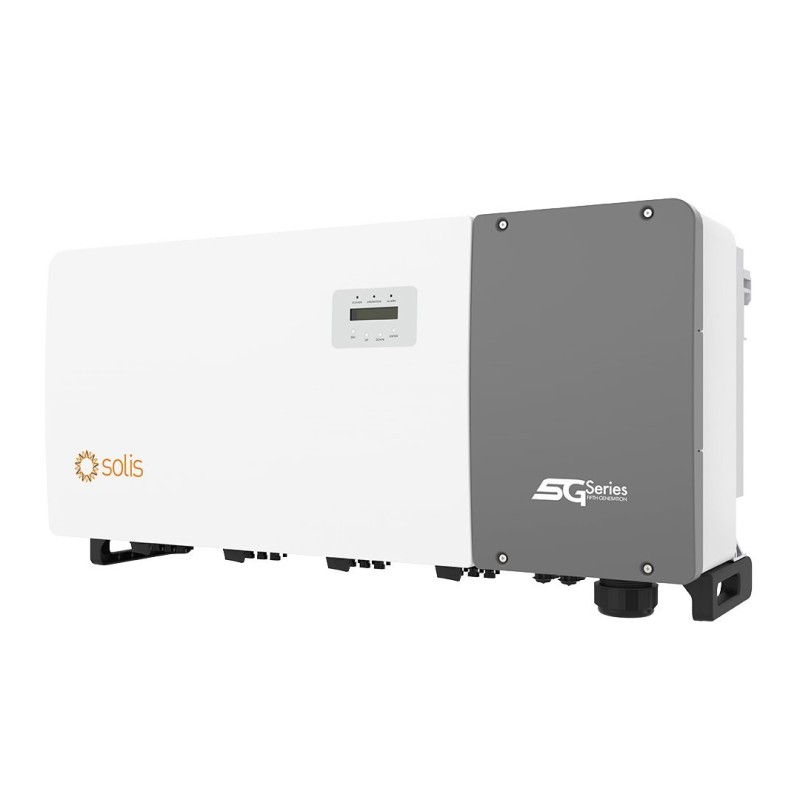

Solis 100K-5G-PRO Inverter Three Phase 100kW
Solis-100K-5G-PRO three phase inverter series is a new generation of Ginlong 5G models, designed to provide high quality solutions for C&I projects. PV string maximum input current is up to 18A, can be used for a variety of efficient PV modules, support more than 150% DC size, high efficiency, stability and reliability; compatible with RS485/PLC/Wi-Fi/GPRS communication modes, AC/DC interface optimization design, strong cable compatibility, convenient installation, cost saving. Combined with abundant online O&M tools provided by Solis cloud platform, which can effectively reduce costs, simplify maintenance, improve system efficiency.
✓ > 150% DC/AC ratio
✓ Night SVG feature
✓ IP66 Degree of protection
✓ 6/8 MPPT, maximum efficiency 98.5%
✓ Compatible with double-sided modules
✓ Allows the use of aluminum cables
✓ Power line communication (PLC) (optional)
✓ Supports "Y" type connection in DC side
✓ Remote firmware upgrade with simple operation
✓ AFCI proactively reduces fire risk
✓ Globally recognized branded components for increased durability
✓ Intelligent string-level monitoring, intelligent I-V curve scanning
✓ WiFi/GPRS Real-time monitoring
✓ 160-1000V MPPT voltage range
✓ App Store IOS/Android
Technical specifications
DC input
Absolute maximum voltage: 1100 V
Rated Voltage: 600V
Starting Voltage: 180V
MPPT Voltage Range: 160-100V
Maximum input current: 36A / 32A / 36A / 32A / 36A / 32A / 36A / 32A
Maximum short circuit current: 8*50A
Maximum MPPT number/Number of strings: 8/16
AC output
Rated Output Power: 100kW
Maximum apparent output power: 110 kVA
Maximum output power: 110 kW
Rated mains voltage: 3/N/PE, 220V/380V, 230V/400V
Rated Grid Frequency: 50-60Hz
Rated Mains Output Current: 152.0A/144.3A
Maximum output current: 167.1A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Efficiency
Maximum efficiency: 98.5%
EU efficiency: 98%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload protection: DC Type II / AC Type II
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
String Monitoring: Yes
I/V curve scan: Yes
Built-in PID recovery: Optional
Integrated DC switch: Yes
Integrated AC switch: Optional
Integrated AFCI (DC Arc Fault Circuit Protection): Yes (Activation Required)
General data
Dimensions (WxHxD): 1183x585x363 mm
Weight: 93kg
Topology: Without transformer
Self-consumption (night) (night): <2 W
Operating environment temperature range: -30 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Intelligent cooling with redundant fans
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard: G99, IEC61727, EN50549-1/2, VDE4110
Characteristics
DC connection: MC4 connector
AC connection: OT terminals (maximum 240 mm²)
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS, PLC
