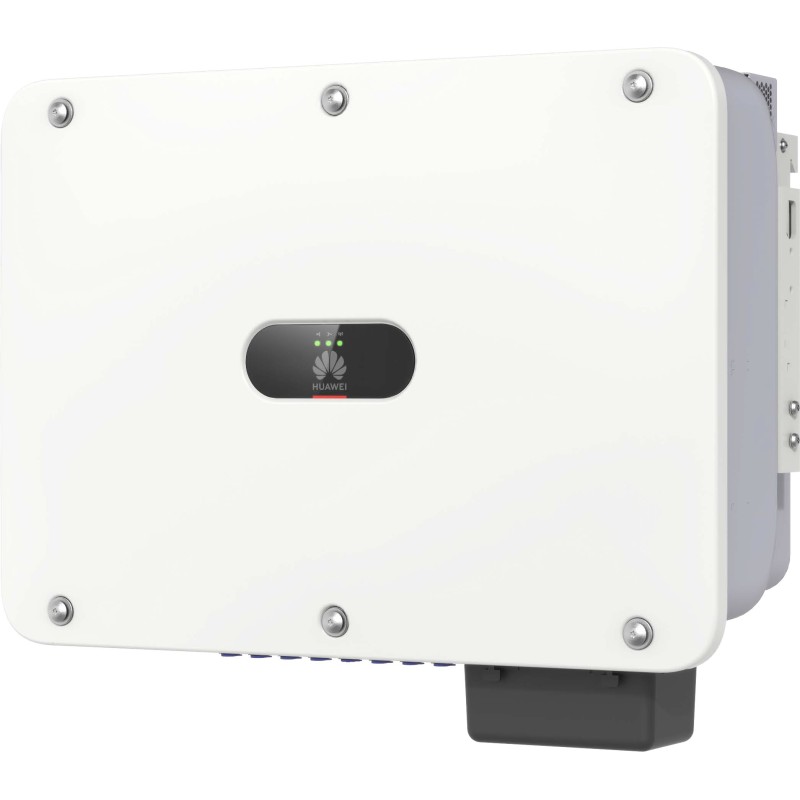

Huawei SUN2000-50K-MC0 50kW Three-phase Hybrid Inverter
The Huawei SUN2000-50K-MC0 is a three-phase string inverter designed for commercial and industrial applications, offering high efficiency, maximum reliability, and advanced safety features. With an input current of up to 33 A, 4 independent MPPTs, and a wide range of integrated protection and communication systems, it is an ideal solution for next-generation photovoltaic systems.
The SUN2000-MC0 series is also compatible with the Huawei MERC-1100 and MERC-1300 optimizers, further increasing system performance and flexibility.
Higher Energy Yield
Save on your energy bill
Harness the sun's energy to power your business while reducing electricity costs. The Huawei inverter, equipped with PID recovery technology, allows photovoltaic modules to operate optimally without losing efficiency over time. Furthermore, its high tolerance to high temperatures and humidity further improves performance.
Proactive Safety
Elimination of Fire Risks
The Huawei inverter has raised the bar with Level 4 arc protection certification. The inverter's rapid shutdown in 0.5 seconds ensures safety in all commercial and industrial scenarios.
Long-Term Reliability
Weather Resistance
This inverter is designed for all weather conditions, having passed more than 1,400 tests, including resistance to freezing, high temperatures, humidity, salt spray, dust, and lightning.
Low Temperature Freezing
Enhanced freezing tolerance in environments as low as -25°C, such as plateaus, snow-capped mountains, and high latitudes. Whether it's snowing or raining, your inverter will operate continuously. (Tested for melting and freezing cycles.)
High Temperature and Humidity
Withstands extreme temperatures, such as those found in the tropics, deserts, and low latitudes. It is resistant to salt spray with a C5M corrosion rating. (Temperature 70°C, humidity 95%, salt fog 5%).
Sandstorms and Dust
The inverter can withstand a high dust density of 30 mg/m2 by passing a comprehensive temperature, humidity, and corrosive dust test developed by Huawei laboratories. (IP66 protection).
Product Features
• Rated AC power: 50.0 kW
• Power phases: 3
• AC grid voltage: 400 V
• Number of MPPTs: 4
• Maximum DC input voltage: 1100 V
• DC overvoltage protection: Type 1+2
• AC overvoltage protection: Type 2
• AFCI arc fault detection: Yes
• DC connector type: Amphenol Helios H4
• Communication: RS485, Optional: Wi-Fi + LAN / 4G (via dongle)
• Protection class: IP66
• Dustproof, waterproof, and salt spray resistant
• AC/DC overload protection
• Lightning protection
• Cooling: Passive
Tips
MERC-1100/1300W-P Optimizer
LUNA2000-241 Series Storage System
4G Smart Dongle Accessories
Important:
Wi-Fi communication is possible via the WLAN-FE dongle (6833271) or WLAN-FE 2.0 (6856625); or with 4G/3G/2G via the 4G dongle (6853066).
Wi-Fi and/or 4G smart dongles are not included! They must always be ordered separately.

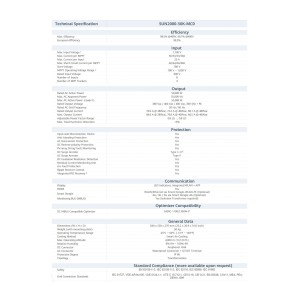

Technical data:
Efficiency
Max. Efficiency: 98.5% @400V, 98.7% @480V
European Efficiency: 98.2%
Input
Max. Input Voltage: 1,100V
Max. Current per MPPT: 30/33/33/30A
Max. Current per Input: 23 A
Max. Short Circuit Current per MPPT: 40/44/44/40A
Start Voltage: 180V
MPPT Operating Voltage Range: 180V~1000 V
RatedInput Voltage: 600V
Number of Inputs: 8
Number of MPP Trackers: 4
Output
Rated AC Active Power: 50,000W
Max. AC Apparent Power: 55,000VA
Rated Output Voltage: 380 Vac/400 Vac/480Vac,3W/N+PE
Rated AC Grid Frequency: 50Hz/60Hz
Rated output current: 76.0 A @ 380Vac, 72.2 A @ 400Vac, 60.1 A @ 480Vac
Maximum output current: 84.0 A @ 380Vac, 79.8 A @ 400Vac, 66.5 A @ 480Vac
Adjustable Power Factor Range: 0.8LG...0.8 LD
Max. Total Harmonic Distortion: <3%
Communication
Display: LEDIndicators, Integrated WLAN + Fusion Solar APP
RS485: Yes
Smart Dongle: WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
4G / 3G / 2G via Smart Dongle-4G (Optional)
General data

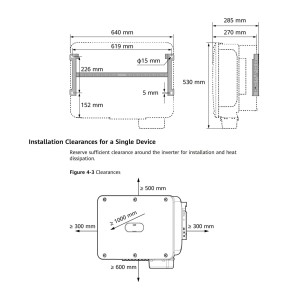

Dimensions (WxHxD): 640x530x270 mm (25.2x 20.9x 10.6inch)
Weight (withmounting plate): 50 kg
Operating Temperature Range: -25~ +60°C(-13°F ~ 140°F)
Cooling Method: Natural Convection
Max. Operating Altitude: 4,000m (13,123ft.) (Deratingabove 2000m)
Relative Humidity: 0%RH~100%RH
DC Connector: Amphenol Helios H4
AC Connector: Waterproof Connector +OT/DTTerminal
Protection Degree: IP66
Topology: Transformerless
Optimizer Compatibility
DC MBUS Compatible Optimizer: MERC-1100W/1300W-P
- Safety: EN62109-1/-2, IEC62109-1/-2, IEC62116, IEC60068, IEC61683
- Grid Connection Standards: IEC 61727, VDE-AR-N4105, VDE0124-1-1, UTEC15-712-1, CEI0-16, CEI0-21, EN-50549, C10/11, MEA, PEA, DEWA, G99
