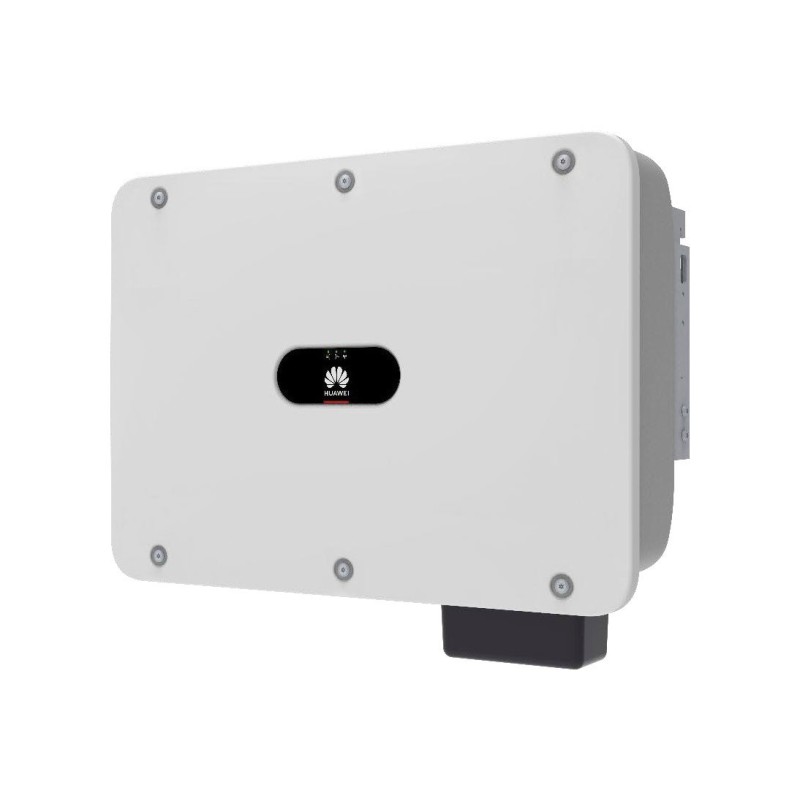

Huawei SUN2000-30KTL-M3 30kW 33kVA Three-phase string Inverter 4 MPPT 27A
Huawei SUN2000-30KTL-M3 30 kW 3-phase power string inverter is a device that allows you to convert the direct current supplied by the solar panels of a photovoltaic system into alternating current with three-phase output for the consumption of medium and large commercial premises. It is produced by the prestigious Huawei brand, a leading company in the production of photovoltaic, telecommunications, telephony equipment, etc.
8-string intelligent monitoring and quick troubleshooting. Maximum efficiency 98.7%. Fuse free design. Type II surge arresters for DC and AC. Can be combined with Huawei SUN2000-450W-P power optimizer. Radio control receiver interface.
Technical Specification
Max. efficiency 98.7%;
European efficiency: 98.4%.
Input
Max. Input Voltage: 1,100 V
Max. Current per MPPT: 27 A (per MPPT) / 20 A (per input);
Max. Short Circuit Current per MPPT: 40 A;
Start Voltage: 200 V;
MPPT Operating Voltage Range: 200 V ~ 1,000 V;
Nominal Input Voltage: 600 V;
Number of Inputs: 8;
Number of MPP Tracker: 4;
Output
Nominal AC Active Power: 30,000 W;
Max. AC Apparent Power: 33,000 VA;
Nominal Output Voltage: 230 Vac / 400 Vac / 480 Vac, 3W+(N)+PE;
Rated AC Grid Frequency: 50 Hz / 60 Hz;
Nominal Output Current: 43.3 A;
Max. Output Current: 47.9 A;
Adjustable Power Factor Range: 0.8 leading... 0.8 lagging;
Max. Total Harmonic Distortion: ＜3%.
Protection
Input-side Disconnection Device: Yes;
Anti-islanding Protection: Yes;
AC Overcurrent Protection: Yes;
DC Reverse-polarity Protection: Yes;
PV-array String Fault Monitoring: Yes ;
DC Surge Arrester: Yes;
AC Surge Arrester: Yes;
DC Insulation Resistance Detection: Yes;
Residual Current Monitoring Unit: Yes;
Arc Fault Protection: Yes;
Ripple Receiver Control: Yes;
Integrated PID Recovery: Yes.
Communication
Display: LED indicators; WLAN integrated, FusionSolar APP;
RS485: Yes;
Smart Dongle: WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G/3G/2G via Smart Dongle-4G (Optional)
General Data
Dimensions (WxHxD): 640x530x270 mm;
Weight (with mounting plate): 43 kg;
Operating Temperature Range: -25°C ~ 60°C;
Cooling Method: Natural convection;
Max. Operating Altitude: 4,000 m (13,123 ft.) (Derating above 2000 m);
Relative Humidity: 0 ~ 100%;
DC Connector: Amphenol Helios H4;
AC Connector: Waterproof Connector + OT/DT Terminal;
Protection Degree: IP66;
Topology: Transformerless;
Nighttime Power Consumption: <5.5 W.
Standard Compliance (more available upon request)
Certificate: EN62109-1/-2,IEC62109-1/-2,EN50530,IEC62116,IEC60068,IEC61683;
Grid Connection Standards: IEC 61727,VDE-AR-N4105,VDE0126-1-1,BDEW,G59/3, UTEC15-712-1, CEI0-16, CEI0-21, RD661,RD1699, P.O.12.3,RD413, EN-50438-Turkey, EN-50438-Ireland, C10/11,MEA, ResolutionNo.7, NRS097-2-1,AS/NZS4777.2, DEWA
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
