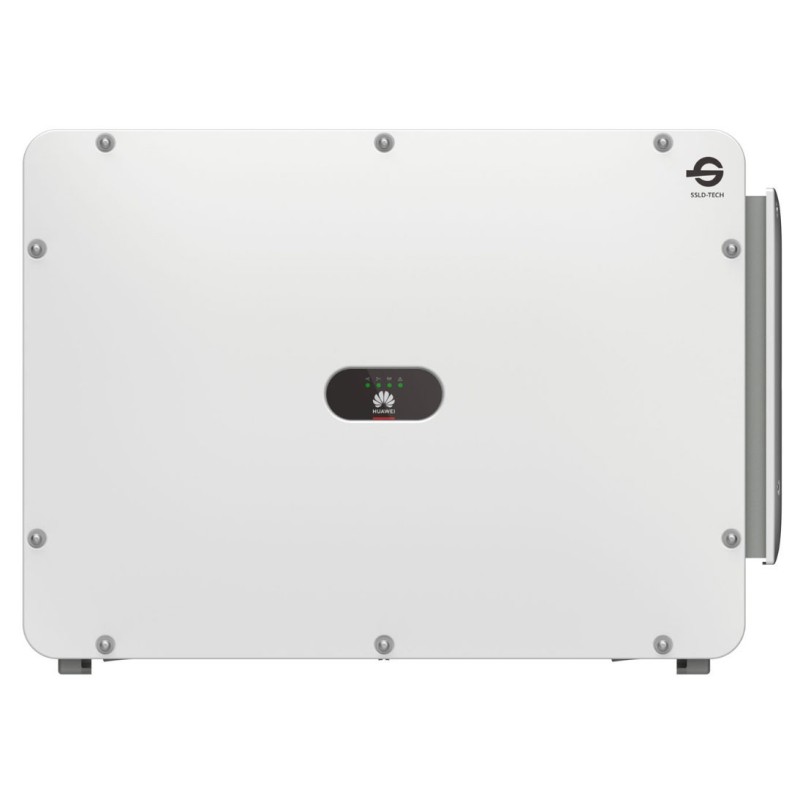

Huawei SUN2000-330KTL-H1 330kVA 1500V 3-Phase Intelligent PV string Inverter 6MPPT

Huawei SUN2000-330KTL-H1 330kVA 1500V 3-Phase Intelligent PV string Inverter 6MPPT

High voltage three-phase string photovoltaic inverter with power up to 330 kVA with 6 MPPT trackers that can accept 4 or 5 PV strings, requires DC box. 800V injection in 3W + PE networks. Commissioning via WLAN. Maximum efficiency up to 99%. Natural convection cooling system, without fan which guarantees a longer useful life. High level of external protection (IP 66). String level management. Intelligent I-V curve diagnostics available as an option. MBUS support. Without DC fuse. Integrated protection against DC and AC overvoltages. Protection class IP66.

Technical Specification
Max. efficiency: ≥ 99.0%;
European efficiency: ≥ 98.8%;
Input
Max. Input Voltage: 1,500 V;
Max. Current per MPPT: 65 A;
Max. Short Circuit Current per MPPT: 115 A;
Start Voltage: 550 V;
MPPT Operating Voltage Range: 500 V ~ 1,500 V
Number of MPP trackers: 6;
Max. input number per MPP tracker: 4/5/5/4/5/5.
Output
Nominal AC Active Power: 300,000 W;
Max. AC Apparent Power: 330,000 VA;
Max. AC Active Power (cosφ= 1): 330,000 W;
Nominal Output Voltage: 800 V, 3W + PE;
Rated AC Grid Frequency: 50 Hz / 60 Hz;
Nominal Output Current: 216.6 A;
Max. Output Current: 238.2 A;
Adjustable Power Factor Range: 0.8 leading... 0.8 lagging;
Max. Total Harmonic Distortion: ＜3%.
Communication
Display: LED indicators; WLAN + APP;
RS485: Yes;
MBUS: Yes;
USB: Yes.
General Data
Dimensions (W x H x D): 1048x732x395 mm;
Weight (with mounting plate): ≤ 108 kg;
Operating Temperature Range: -25°C ~ 60°C;
Cooling Method: Smart Air Cooling;
Max. Operating Altitude: 4,000 m (13,123 ft.);
Relative Humidity: 0 ~ 100%;
AC Connector: Waterproof Connector + OT/DT Terminal;
Protection Degree: IP66;
Topology: Transformerless.

For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
