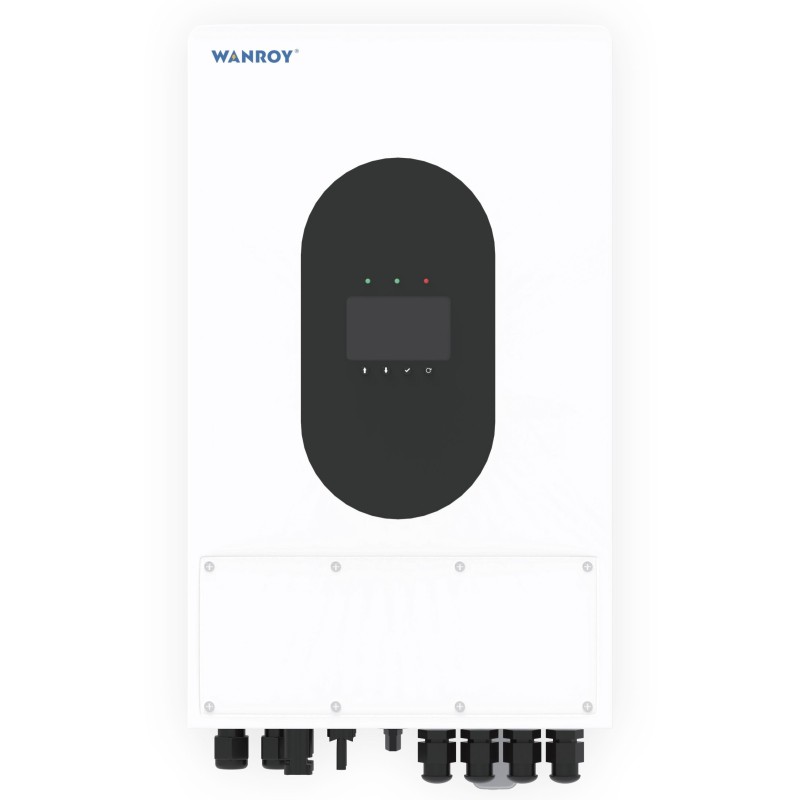

Wanroy WYIN5K 5000/7000W CEI-021 Single-Phase Hybrid Inverter with Backup
Home Energy Storage System
Improve self-consumption ratio up to 80%. Two MPPT design, Max. efficiency of 98%. Reduce electricity bills. remote diagnosis and elimination of error codes. With CE/RoHS/LVD/CEI 0-21, etc. certifications. IP65 protection degree, adapt to indoor and outdoor using. LCD screen and buttons, easy operation. Compatible with lithium-ion battery and lead acid battery. Support WiFi module, intelligent APP monitoring.
• Remote diagnosis and elimination of error codes
• Support WIFI module, intelligent APP monitoring
• Support for Li-ion battery BMS communication
• Complete certifications, safe and reliable
• With LCD, IP65 protection degree
• Saves space and easy installation
• Includes: Wi-Fi Dongle + BMS Communication Cable
• 5-year warranty
TECHNICAL SPECIFICATIONS
- Model: WYIN5K;
- Max. efficiency: 98.1%;
- European weighted efficiency: 97.5%,
PV INPUT
- Max. PV input power: 7,000 Wp;
- Max. input voltage: 500 V;
- MPPT quantity: 2,
AC OUTPUT DATA (ON-GRID)
- Grid connection: Single phase;
- Nominal discharge power: 5,000 W;
- Nominal output voltage: 220 V / 230 V / 240 V,
AC OUTPUT DATA (BACKUP POWER)
- Nominal output power: 4,500 W;
- Max. output current: 20 A,
GENERAL DATA
- Communication: CAN, RS485, WLAN
- Weight: 25 kg;

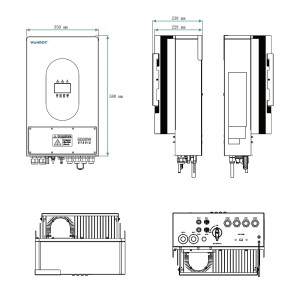

- Dimensions (WxHxD): 350x58x230 mm;
- Degree of protection: IP66;
- Certificates: CEI-021, EN 50549-1, VDE-AR-N4105;
- Warranty: 5 years.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
