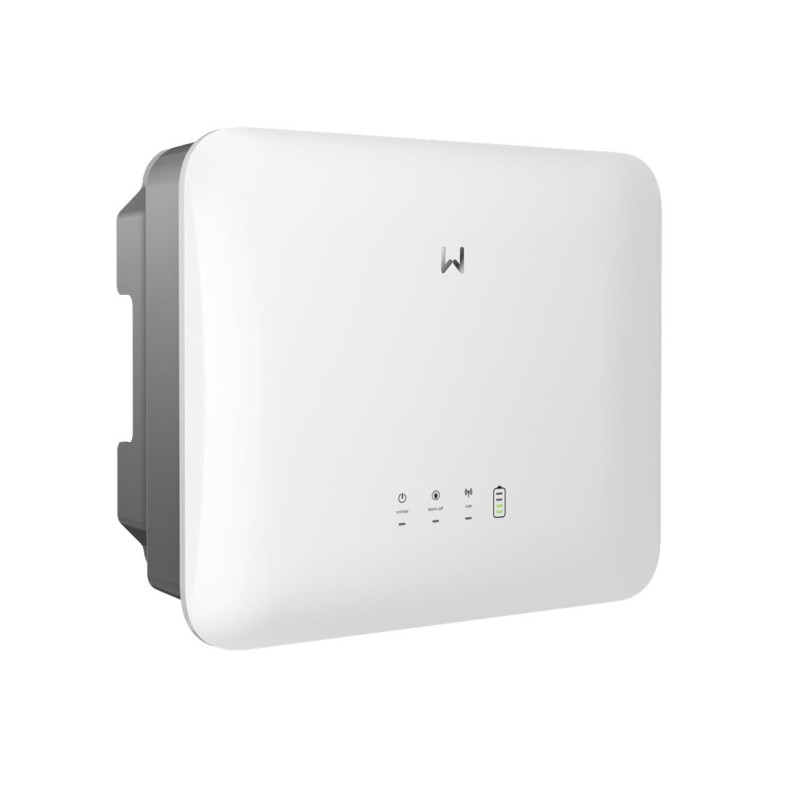

Goodwe GW3600N-ES-20 3.6kW Single-Phase Hybrid Inverter

Goodwe GW3600N-ES-20 3.6kW Single-Phase Hybrid Inverter

Compact and efficient inverter for optimised solar energy back-up
ES Series 3.6kW G2 Goodwe GW3600-ES-20 Hybrid Inverter with DC SWITCH, WIFI, 3P-METER, suitable to meet the needs of combined PV rooftop and energy storage systems, the ES G2 hybrid inverter provides optimised energy flexibility. By facilitating maximum back-up of generated solar energy, a high degree of autonomy can be achieved. Factor in its modern design and smart home integration abilities, then ES G2 is the ideal choice for residential applications. The ES G2 series is compatible with a range of batteries, including the GoodWe Lynx Home U.

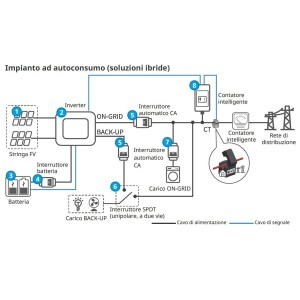

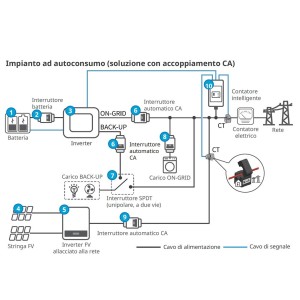

The inverter manages and optimizes the power in PV systems thanks to an integrated energy management system. The power generated by the PV system can be used, stored in the battery, fed into the distribution grid, etc.
• Strong backup with USP level switching < 10ms
• Smart home integration
• Parallel connection
• Load & generator management
• Optimised energy autonomy
• Smart and efficient operations
• Modern and compact design
• Highest safety standards
Smart and efficient operations
Integrated dynamic power export limit, load monitoring, and load & generator management. Supports multiple communication protocols for smart home integration.
• Load & generator management
• Smart home integration
Highest safety standards
In-built DC type II SPD can protect DC side from lightning strikes and save the cost of an external device. AFCI (optional) offers superior DC protection in scenarios with high security requirements.
• SPD type II on DC side
• Optional AFCI on DC side
Optimised energy autonomy
High backup output power with parallel operation capability also for backup output. Compatible with GoodWe Batteries and a wide range of LV battery brands.

Specific characteristics:
Battery input data
- Battery type: Lithium Ion
- Battery Rated Voltage: 48 V
- Battery voltage range: 40 ~ 60 V
- Max. continuous charge current: 75 A
- Max. continuous discharge current: 75 A
- Max. charging power: 3600 W
- Max. discharge power: 3900 W
PV string input data
- Max. Input Power: 5400 W
- Max. input voltage: 600 V
- MPPT Operating Voltage Range: 60 ~ 550 V
- Starting voltage: 58 V
- Rated input voltage: 360 V
- Max. input current for MPPT: 16 A
- Max. short circuit current for MPPT: 23 A;
- Number of MPP trackers: 2
- Number of strings for MPPT: 1
AC side output data (on-grid)
- Nominal apparent power output on mains: 3680 VA
- Max. apparent power output on mains: 3680 VA
- Max. apparent power from mains: 7360 VA
- Rated output voltage: 220/230/240 V
- Rated network frequency AC side: 50/60 Hz
- Max. AC side current output on mains: 16.7 A
- Max. AC side current from mains: 33.5 A
- Output power factor: ~ 1 (adjustable from 0.8 capacitive to 0.8 inductive)
- Max. total harmonic distortion: <3%
AC side output data (back-up)
- Nominal apparent backup power: 3680 VA
- Max. apparent output power: 3680 VA (7360@10sec)
- Max. output current: 16.7 A
- Rated output voltage: 220/230/240 V
- Nominal output frequency: 50/60Hz
- Output THDv (with linear load): <3%
Efficiency
- Max. efficiency: 97.6%
- European efficiency: 96.7%
- Maximum. battery to AC efficiency: 95.5%
- MPPT efficiency: 99.9%
Protection
- PV String Current Monitoring: Integrated
- PV insulation resistance detection: Integrated
- Residual current monitoring: Integrated
- Battery reverse polarity protection: Integrated
- PV reverse polarity protection: Integrated
- Anti-isolation protection: Integrated
- AC side overcurrent protection: Integrated
- AC side short circuit protection: Integrated
- AC side overvoltage protection: Integrated
- DC-side surge arrester: Type II
- AC-side surge arrester: Type III
- AFCI: Optional
- Remote Shutdown: Integrated
General data

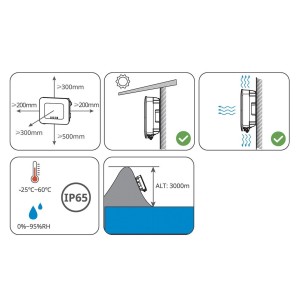

- Operating temperature range: -25 ~ +60°C
- Relative Humidity: 0 ~ 95%
- Max. operating altitude: 3000 m (>2000 Derating)
- Cooling method: Natural convection
- User interface: LED, WLAN + APP
- Communication with BMS: CAN
- Communication with meter: RS485

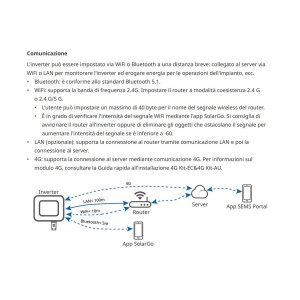

- Communication with portal: WiFi / WiFi + LAN / 4G
- Weight: 20.8 kg
- Dimensions (W×H×D): 505.9x434.9x154.8 mm
- Topology: Non-Isolated
- Night power consumption: <10
- Ingress protection degree: IP65
- Installation type: Wall mounting.

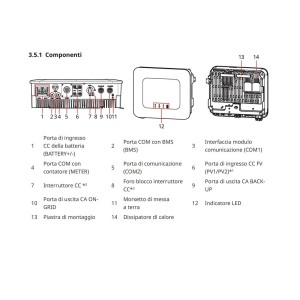

For more details, we recommend that you view the manufacturer's technical data sheet (photo).

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
