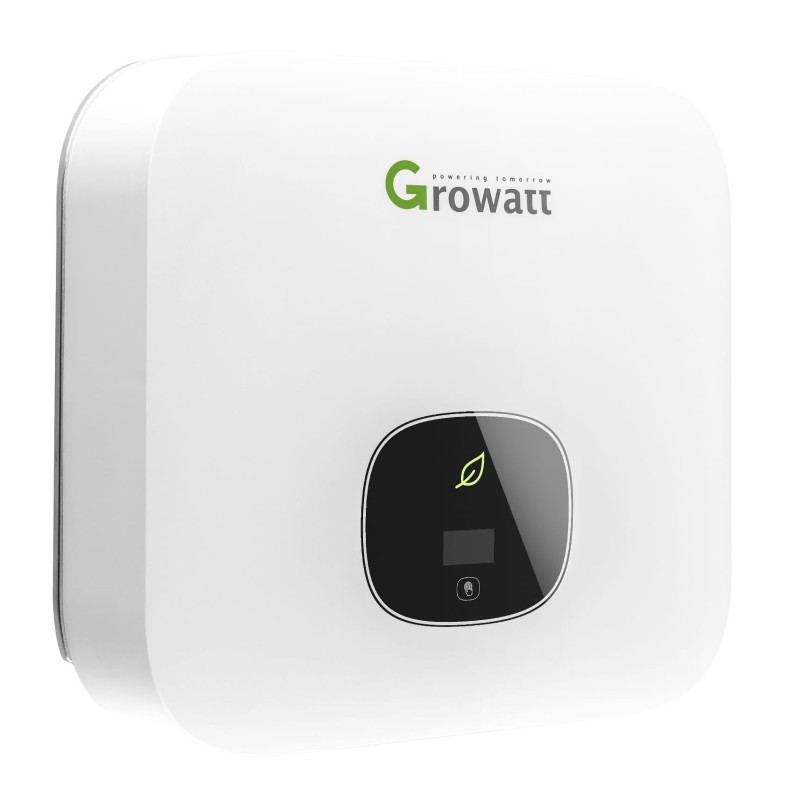

Growatt MIN 2500TL-XH 2500W single-phase hybrid inverter
The Growatt MIN 2500TL-XH inverter is the 2500W single-phase hybrid inverter, suitable for grid-connected residential PV systems, with the ability to control the energy flow intelligently. This inverter is designed for high voltage batteries and has CEI 0-21 Certification for connection to the National Electricity Grid. During the day, the PV array generates electricity which can be provided either to the loads, fed into the grid or charge the battery, depending on the economics and set-up. The electricity stored can be released when the loads require it during the night. Additionally, the power grid can also charge the storage devices via the inverter.
Max. efficiency 98.2%
Dual MPP trackers
Type II SPD on DC side
Battery ready, future proof
24h self-consumption monitoring
It guarantees earlier power generation and longer working time to maximize the yields and long-term investment return for the end-users.
Its operation is simple and completely automatic: it starts working as soon as it receives the first voltages from the solar panels, sufficient to exceed the minimum voltage threshold for ignition. When this threshold is no longer reached, in the evening, the inverter switches off and stops feeding energy into the grid, disconnecting itself from it.
Thanks to the quality of the materials and the high technology without transformer, this inverter is able to convert the direct current coming from the solar panels into alternating current with an efficiency of 98.2%, managing the energy input into the electricity grid through the meter of energy.
In order to make the most of the potential of the panels, even in situations of partial irradiation or shaded areas, the Growatt inverter uses the MPPT (Maximum Power Point Tracker) technology, which is able to constantly manage and exploit the maximum point of power supplied by the photovoltaic panel based on the solar radiation to which it is subjected.
Technical data:
Model: MIN 2500TL-XH;
DC input parameters
Maximum PV power: 5000 W;
Maximum DC Voltage: 500 V;
Trigger Voltage: 100 V;
DC Rated Voltage: 360 V;
MPP Voltage Range: 70-500 V;
Number of MPPs: 2;
Number of strings for MPP: 1;
Maximum Input Current for MPPT: 13.5 A;
Maximum Short Circuit Current for MPPT: 16.9 A.
Battery data
Compatible battery: ARK XH batteries (5.12 kWh... 17.9 kWh);
Battery Voltage Range: 360-500 V;
Max charge and discharge current: 17 A;
Max Charge Power: 6000 W;
Max Discharge Power: 2500 W.
AC output parameters
Rated AC Output Power: 2500 W;
Maximum AC apparent power: 2500 VA;
Rated Voltage Range: 230 V (180-280 V);
AC Grid Frequency Range: 50/60 Hz;
Maximum Output Current: 11.3A;
Adjustable power factor: 0.8 leading...0.8 lagging;
Total Harmonic Distortion THDI: <3%;
AC connection: Single phase.
Conversion efficiency
Maximum Efficiency: 98.2%;
European efficiency: 97.1%;
MPPT efficiency: 99.9%.
Safety devices
DC switch for each MPPT: Yes;
DC Reverse Polarity Protection: Yes;
DC/AC overvoltage protection: Type II/Type III;
Insulation resistance protection: Yes;
AC Short Circuit Protection: Yes;
Ground Fault Detection Device: Yes;
Anti-Islanding Protection: Yes;
Leakage current monitoring: Yes;
AFCI protection (electric arcs): Yes.
General data
Dimensions: 373x350x160 mm;
Weight: 10.8Kg;
Operating Temperature Range: -25°C +60°C;
Altitude: 4000m;
Consumption in Night Mode: <3W;
Topology: Without Transformer;
Cooling System: Natural convection;
Degree of Protection: IP65;
Relative Humidity: 0%-100%;
DC connection: H4/MC4;
AC Connection: Connector;
Display: OLED+LED/WI-FI+APP;
RS232/RF/WI-FI-LAN-GPRS interfaces: RS485/USB;
Warranty: 10 years;
Safety: CE, IEC62109, AS/NZS 4777.2, CEI 0-21, VDE-AR-N 4105, VDE0126-1-1, UTE C 15-712-1, EN 50549, IEC 62116, IEC 61727, G98/G99
