Huawei SUN2000-6K-LB0 Single Phase Hybrid Inverter mpn:01077155 Integrated AFCI MPPT16A 6-9kW Ready for battery connection

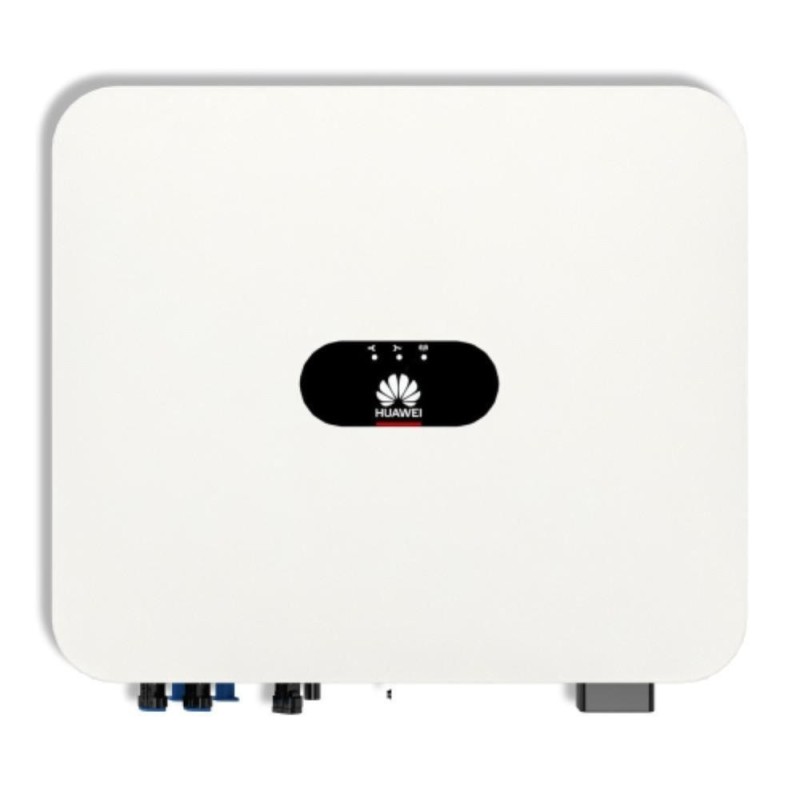

Huawei Solar SUN2000-6K-LB0: New generation of Huawei inverters for residential systems. Huawei SUN2000 6K-LB0 is a hybrid inverter with an output power of 6 kW.
These new inverters make monitoring even easier and there is support for the SUN2000-450W-P2, SUN2000-600W-P power optimizers.
Thanks to the compact size and low weight, the installation of the inverter is quick, easy and can be done by just one person. The Huawei inverter is a jewel of efficiency and elegance. Its strong point is its highly reliable performance and high yield. Thanks to Huawei inverters you are sure to make the most of the production of your photovoltaic system with an efficiency of 97.8%. Monitoring is done via the integrated WLAN functionality, which can be further extended via dongle. It can communicate via mobile networks (Huawei Smart Dongle 4G) and via wiring (Huawei Smart Dongle WLAN FE 2.0).
With a 16A MPPT current, this Huawei inverter easily adapts to a wide range of PV modules, optimizing energy storage. Designed to power even the highest household loads, it allows you to live more sustainably, with greater energy efficiency and less waste.
The intelligent AFCI (Arc-fault Circuit Interrupter) protection detects the DC electric arc up to 200 meters away and interrupts the circuit in less than 0.5 seconds, eliminating potential fire hazards for the safety of people and property.
- IP66 rating: designed to withstand harsh environments, the new SUN2000-6K LB0 inverter is resistant to dust, high-pressure water jets, sand, corrosion and salt spray.
- Extreme Temperature Resistance: Tested in extreme temperature scenarios, the Huawei 6kW inverter operates smoothly in a range of -25°C to +60°C.
- Lightning Protection: The SUN2000 6K LB0 inverter has successfully passed the DC/AC surge protection test caused by lightning.
The Huawei 6kW hybrid inverter can be easily and flexibly integrated with an energy storage system when needed. This combination allows you to store solar energy produced during the day and use it at night or on cloudy days, ensuring a 24/7 sustainable lifestyle.
Backup Guaranteed at All Times
Say goodbye to darkness: the optional whole-home backup solution automatically activates in the event of a power outage, ensuring a continuous and reliable power supply.
SMART DONGLE NOT INCLUDED IN THE PACKAGE

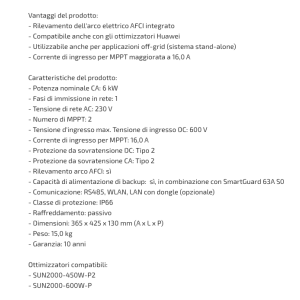

Product benefits:
- Integrated AFCI arc detection
- Also compatible with Huawei optimizers
- Also suitable for off-grid applications (stand-alone system)
- Increased input current per MPPT to 16.0 A

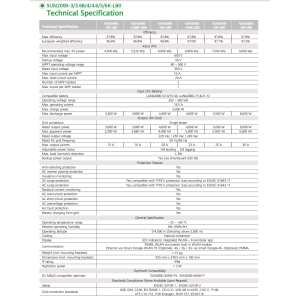

Product features:
- Nominal AC power: 6 kW
- Feed-in phases: 1
- AC grid voltage: 230 V
- Number of MPPTs: 2
- Max. input voltage DC input voltage: 600 V
- Input current per MPPT: 16.0 A
- DC overvoltage protection: Type 2
- AC overvoltage protection: Type 2
- AFCI arc detection: Yes
- Backup power capability: Yes, in combination with SmartGuard 63A S0
- Communication: RS485, WLAN, LAN with dongle (optional)
- Protection class: IP66
- Cooling: Passive
- Dimensions: 365 x 425 x 130 mm (H x W x D)
- Weight: 15.0 kg
- Warranty: 10 years
Compatible optimizers:
- SUN2000-450W-P2
- SUN2000-600W-P
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
