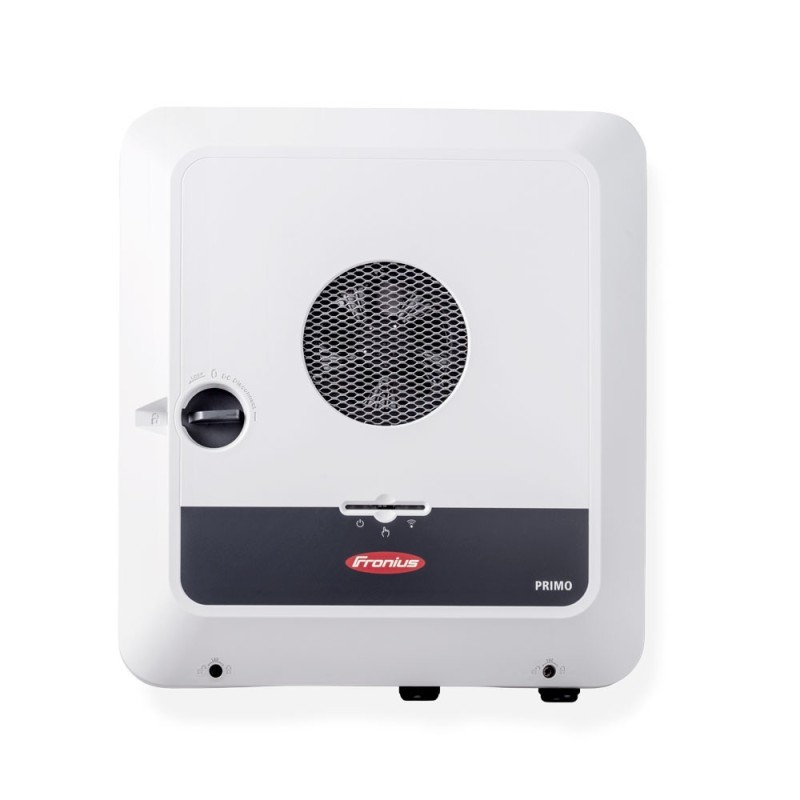

Fronius PRIMO GEN24 4.0 PLUS 4kW Hybrid Inverter 2 MPPT 4000W

Fronius PRIMO GEN24 4.0 PLUS 4kW Hybrid Inverter 2 MPPT 4000W

Sustainable, reliable, future-proof: using our Fronius GEN24 4.0 Plus inverter as the heart of a photovoltaic system lets you flexibly and economically produce energy yourself. You can connect a battery system to the hybrid inverter to use the solar energy that you produce for electricity, heating, cooling, and e-mobility. Full solar power for your private energy revolution with the Fronius GEN24 Plus.

Maximum flexibility
With the Fronius GEN24 Plus as the heart of the photovoltaic system, you will do a whole lot more than launch your own personal energy revolution; you will also gain access to all the possibilities and benefits of solar energy.
Backup power for every situation
Your energy supply must be reliable: with the Fronius GEN24 Plus, you can choose either “PV Point” or “Full Backup”, a backup power supply for the entire household.
Easy installation
Save time and money: fast and safe installation with 180° quick-fastener screws, push-in spring terminals, and a well-designed wall assembly system.
Support and tools
Never-ending support: free and efficient Fronius solutions are available for planning, installation, and system monitoring. This increases customer satisfaction and minimizes maintenance effort.

Technical data:
INPUT DATA
Number of MPP trackers: 2;
DC input voltage range (Udc min - Udc max): 65 - 600 V;
Nominal input voltage (Udc,r): 400 V;
Feed-in start-up input voltage (Udc start): 80 V;
Usable MPP voltage range: 65 - 530 V;
Max. usable input current (Idc max) MPPT1/MPPT2: 22 A / 12 A;
Max. array short circuit current (Isc pv) MPPT1/MPPT2: 36 A / 19 A;
Number of DC connections MPPT1/MPPT2: 2/2;
Max. usable DC power MPPT1/MPPT2/Total: 4140 W / 4140 W / 4140 W;
Max. PV generator output Wpeak MPPT1/MPPT2/Total: 5000 Wpeak / 4140 Wpeak / 6000 Wpeak.
OUTPUT DATA
AC rated power (Pac,r): 4000 W;
Apparent power: 4000 VA;
Max. output power: 4000 VA;
Nom. AC output current 220Vac/230Vac: 18.2 A / 17.4 A;
Grid connection (Uac,r): 1~ NPE 220/230 V (+20 %/-30 %);
Frequency (frequency range fmin- fmax): 50/60 (45 - 65) Hz;
Total harmonic distortion: <2 %;
Power factor (cos φac,r): 0.8 - 1 ind./cap.
Output data PV Point
Nom. output power PV Point: 3000 VA;
Grid connection PV Point: 1~ NPE 220/230 V;
Switching time: <20 sec.
Output data Full Backup
Nom. output power Full Backup: 4000 VA;
Grid connection Full Backup: 1~ NPE 220/230 V;
Switching time: <35 sec.
Battery connection
Number of DC inputs: 1;
Max. input current (Idc max): 22 A;
DC input voltage range (Udc min - Udc max): 150 - 455 V;
DC battery connection technology: 1x BATT+ and 1x BATT- push-in spring terminals 2.5 - 10 mm²;
Max. DC input/output power: 4140 W;
Max. charging power for AC coupling: 4000 W;
Compatible batteries: BYD Battery-Box Premium HVS/HVM & LG RESU FLEX.
Efficiency
Max. efficiency: 97.6 %;
Euro. efficiency (ηEU): 97.1 %;
MPP adaptation efficiency: > 99.9 %.
Interfaces
DC isolation measurement: Integrated;
Overload performance: Operating point shift, power limiter;
DC disconnector: Integrated;
Reverse polarity protection: Integrated;
WLAN / 2 × Ethernet LAN: Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON);
6 digital inputs/outputs: Connection to ripple control receiver, energy management;
Emergency shut-off (WSD): Integrated;
Datalogger and web server: Integrated;
2 × RS485: Modbus RTU SunSpec (third-party provider)/Fronius Smart Meter, battery, Fronius Ohmpilot.
General data
Protection class: IP 66;
Safety class: 1;
Night consumption: < 10 W;
Overvoltage category (DC/AC): 2/3;
Inverter concept: Transformerless;
Cooling: Active Cooling Technology;
Installation: Indoor and outdoor installation;
Ambient temperature range: -40 to +60°C;
Permissible humidity: 0 - 100%;
Noise emissions dB: < 42 A;
Max. altitude above sea level: 4,000 m;
DC connection technology PV: 4x DC+ and 4x DC- push-in spring terminals 2.5 - 10 mm²;
AC connection technology: 3-pin AC push-in spring terminals 2.5 - 10 mm², 3-pin backup power push-in spring terminals 1.5 - 10 mm², 2x PE screw terminals 2.5–16 mm² and 3x 2.5 - 10 mm²;
Certificates and compliance with standards: IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21, ABNT BNR 16149 and 16150, IEC 62116, IEC 61727, G98/G99;
Backup power functions: PV Point or Full Backup;
Country of manufacture: Austria;
Life cycle analysis: In accordance with ÖNORM EN ISO 14040 and 14044 (checked by employees from Fraunhofer IZM);
Dimensions (height × width × depth): 530×474×165 mm;
Weight (inverter/with packaging): 15.4/19 kg.

For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
