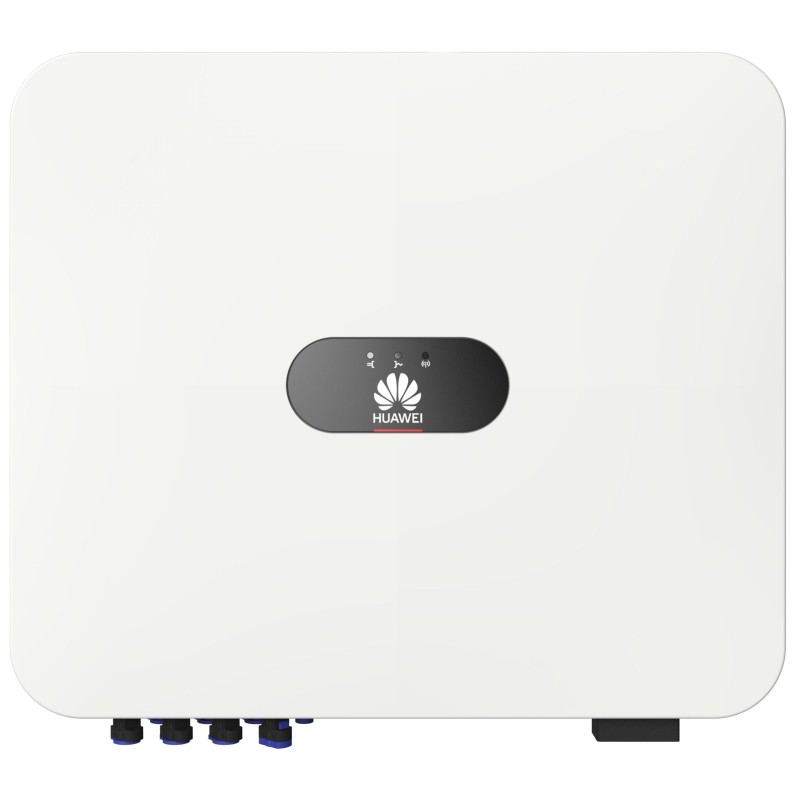

Huawei SUN2000-10K-LC0 10kW 15kWp Single-Phase Hybrid Inverter
Residential Smart PV Solution Smart Energy Controller
The HUAWEI SUN2000-10K-LC0 "Battery-Ready" inverter converts the direct current of the solar modules into usable alternating current and is an essential component of solar home systems.
With a rated output of up to 10 kW, the LC0 is perfect for use in conjunction with a LUNA Smart String energy storage system and EMMA, Huawei's Energy Management Assistant. This single-phase hybrid inverter gives homeowners maximum flexibility and control over their energy management, from power generation to storage and consumption.
With 3 independent MPP trackers and a total of 3 PV string inputs, the LC0 is optimally equipped for complex system concepts and multiple strings.
With its high efficiency, the HUAWEI SUN2000-10K-LC0 hybrid inverter ensures a very efficient solar system and maximum safety thanks to integrated PID recovery and AFCI arc detection, protection cuts off the DC arc within 0.5 seconds, eliminating potential fire hazards for personal and asset safety.
The compact size of 425x376.5x150 mm and the low weight of 15 kg ensure that this component is easy to handle and quick to install. Commissioning using the Huawei FusionSolar app is completed in just a few minutes.
IP66 Rated
Unaffected by harsh environments, the new Smart Energy Controller can withstand dust and high-speed water jets, resistant to sand, corrosion, salt spray, and other hazards.
Withstand Extreme Temperatures
Tested in high and low temperature scenarios, the controller can work properly between –25°C and 60°C.
Lightning Protection
The smart energy controller has passed the DC/AC lightning protection test and can withstand lightning strikes.
Expanded Storage, Uninterrupted Energy
This Smart Energy Controller can be conveniently integrated with your storage system whenever necessary. This pairing can store daytime solar energy and provide eco-friendly power for nights and overcast days, enabling a 24/7 green life.
Backup Ready at All Times
Gone are the days of sudden darkness, the whole-home backup solution powers up in 20 ms when blackouts occur, ensuring an uninterrupted home electricity supply.
Active Safety
Active Arcing Protection
Higher Yields
Up to 30% more energy with optimizer
Battery Ready
Plug & Play, Whole-house power backup

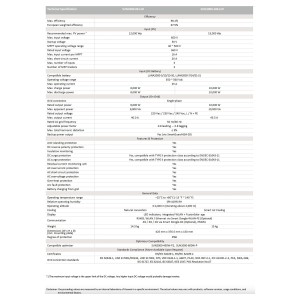

TECHNICAL SPECIFICATIONS
- Model: SUN2000-10K-LC0;
- Max. efficiency: 98.1%;
- European weighted efficiency: 97.5%,
INPUT PV
- Recommended max. PV power: 15,000 Wp;
- Max.input voltage: 600 V;
- Startup voltage: 50 V;
- MPPT operating voltage range: 40 ~ 560 V;
- Rated input voltage: 360 V;
- Max. input current per MPPT: 16 A;
- Max. short circuit current: 20 A;
- Max. number of inputs: 3;
- Number of MPP trackers: 3,
INPUT DC BATTERY
- Compatible battery: LUNA2000 5/10/15 S0;
- Operating voltage range: 350 ~ 560 V dc;
- Max. operating current: 25 A;
- Max. charge power: 10,000 W;
- Max. discharge power: 10,000 W,
OUTPUT ON GRID
- Grid connection: Single phase;
- Rated output power: 10,000 W;
- Max. apparent power: 10,000 VA;
- Rated output voltage: 220 Vac / 230 Vac / 240 Vac, L/N + PE;
- Max. output current: 45.5 A;
- Rated AC grid frequency: 50 Hz/60 Hz;
- Adjustable power factor: 0.8 leading... 0.8 lagging;
- Max. total harmonic distortion: ≤ 3%;
- Backup power output: Yes (via Smart G uard 63A S0),
FEATURES & PROTECTION
- Anti islanding protection: Yes;
- DC reverse polarity protection: Yes;
- Insulation monitoring: Yes;
- DC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643 -11;
- AC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643 -11;
- Residual current monitoring unit: Yes;
- AC overcurrent protection: Yes;
- AC short circuit protection: Yes;
- AC overvoltage protection: Yes;
- Over heat protection: Yes;
- Arc fault protection: Yes;
- Battery charging from grid: Yes,
GENERAL DATA
- Operating temperature range: –25°C to +60°C (13°F ~140°F);
- Relative operating humidity: 0-100 % RH;
- Operating altitude: 0-4,000 m (Derating above 2,000 m);
- Cooling: Smart Air Cooling;
- Display: LED indicators; integrated WLAN + FusionSolar app;
- Communication: RS485, WLAN / Ethernet via Smart Dongle WLAN FE (4G / 3G / 2G via Smart Dongle 4G (optional) EMMA;
- Weight: 15 kg;
- Dimensions (WxHxD) (incl. mounting plate): 425x376.5x150 mm;
- Degree of protection: IP66;
- Compatible optimizer: SUN2000-450W-P2, SUN2000-600W-P;
- Certificates: IEC62109-1, IEC62109-2, EN 61000-6 series EN 62920 EMC, EN 55011 EMC, ETSI EN 301-489-1 EMC, ETSI EN 301-489-17 EMC, EN 61000-3-11, EN 61000-3-12, IEC61000 2-2;
- Grid connection standards: ABNT16149/16150:2013, NRS 097-2-1, PEA, MEA.
