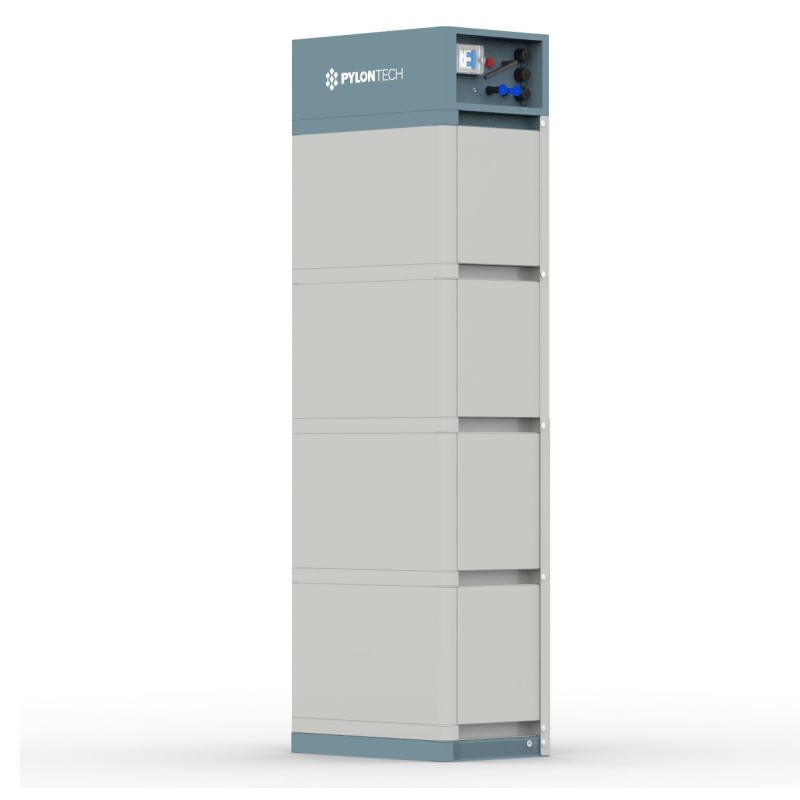

Pylontech Force H2 14.0 96V 14kWh Lithium-Ion Li-ion battery

Pylontech Force H2 14.0 96V 14kWh Lithium-Ion battery

The Pylontech Force H2 high voltage battery stores electricity from the local power grid. The 14 kWh capacity indicates how much energy the memory can draw when fully charged. It consists of four Pylontech H2 FH9637M 96V 3.5kWh expansion battery modules and a Pylontech Force H2 FSC500M BMS battery management system.
Force-H2 is a 3.5 kWh high voltage battery storage system based on lithium iron phosphate cells, and one of the new energy storage products developed and manufactured by Pylontech. It can be used with various types of residential and commercial storage equipment and systems.
Advantages
• Flexibility Module Design
• LFP cell inside enable longest life and highest safety
• Secured by self-developed cells, modules and BMS
• Proven BMS with widest compatiblities with inverters
• Reliable Performace
• 95% DOD
• Be suitable for indoor/otdoor installation
• Quick connector to save installation time
• Furniture like design suits both indoor and outdoor installation

Technical Specification
Battery Storage System: Force H2
Battery Module: 4
Cell Technology: Lithium Iron Phosphate
Battery Module Capacity: 37 Ah
Battery System Capacity: 14.21 kWh
Battery System Voltage: 3x 96V (384 Vdc)
Dimension (WxDxH): 450x296x1414 mm
Weight: 152 kg
Depth of Discharge: 95%
Charge/Discharge Current Recommend: 18.5 A
Max Charge/ Discharge Current Recommend: 40 A
Charge/Discharge Current Peak @15s: 42 A
Communication Port: RS485, CAN
Protection Class: IP55
Max. stack amount per system: 4
Working Temperature/: 0~50
Shelf Temperature/: -20~60
Humidity: 5% ~ 95% (w/o condensing)
Altitude: 2000
Design Life: 15+ Years
Cycle Life: 6000, 25
Authentication level: VDE2510-50/IEC62619/IEC62477/ IEC62040/CE/UN38.3

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
