B-Box HVB/HVS/HVM Battery Management System BCU and Base Station KR6861507

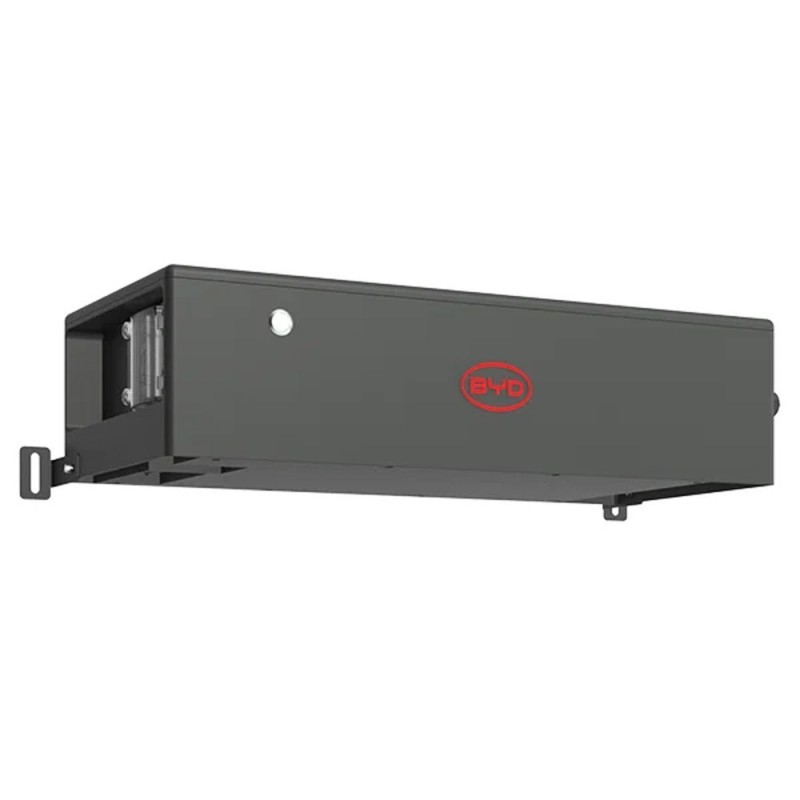

B-Box HVB/HVS/HVM BCU Battery Management System and Base Station

The new BYD BMS-HV is the universal BMS version for the HVB, HVS+, and HVM+ series storage modules.
It can be used flexibly with all three systems.
The new automatic SOC balancing optimizer eliminates the need to manually adjust the charge level during initial installation or system expansion.
The new power and communication connector wiring system saves additional valuable time during installation.
System configuration is also simplified thanks to a new installation app. An end-user app is also available for convenient system monitoring.

Product advantages:
- A single BCU for 3 battery series
- Automatic SOC balancing for initial installation or expansion
- Faster cable installation thanks to plug-in connectors
- New app for easier system configuration

Product features:
- Component type: BCU (Battery Control Unit)
- Scope of delivery: BCU + base
- Interfaces: RS485, CAN, WLAN/LAN module (optional)
- COM ports: RJ45
- BAT connections: MC4
- Protection class: IP55
- Dimensions: approx. BMS 167 x 610 x 282 mm, base 100 x 610 x 282 mm (H x W x D)
- Weight: approx. BMS 12.0 kg, base: 2.6 kg
- Warranty: 15 years

Compatible battery series:
- BYD HVS+ (not HVS)
- BYD HVM+ (non-HVM)
- BYD HVB

This BCU is not compatible with the previous HVS and HVM series storage modules.
Commissioning requires the new BYD Energy app with the latest firmware (from version V1.28.0).
The RJ45 data bus termination connector included in the delivery must be fully wired during installation.
The BYD HVS+/HVM+ and BYD HVB are currently certified ONLY in combination with the KOSTAL PLENTICORE MP / PLENTICORE G3 and FRONIUS VERTO PLUS inverters.
