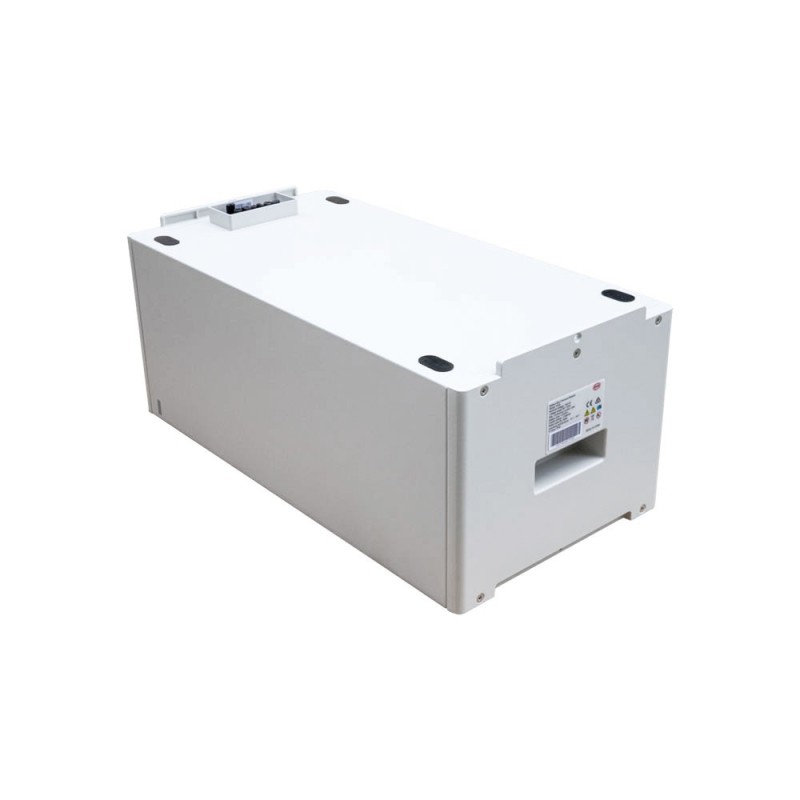

BYD Battery-Box Premium HVS 2.56kWh Battery Module without BMS

BYD Battery-Box Premium HVS 2.56kWh 102.4V Battery Module without BMS

102.4V 2.56kWh BYD Battery-Box Premium HVS High voltage lithium battery module without BMS power module. Suitable for single-phase or three-phase self-consumption systems with BYD inverter.
One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.12 to 12.8 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh. Ability to scale by adding HVS modules or parallel HVS stacks later.
It can be used with various types of equipment and systems. Suitable for those applications that require limited space, high power and long life. The simplicity and modularity of this system make it an extremely flexible product, with capacity that can also be implemented at a later time.

• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50, IEC62619, CEC, CE, UN38.3

Features
- Model: HVS 2.56;
- Lithium-ion battery (lithium iron phosphate);
- Cell chemistry: LFP;
- Available Energy: 2.56 kWh;
- Maximum Output Current: 25 A;
- Peak Output Current: 50 A, 5 s;
- Nominal Voltage: 102.4 V;
- Interface: CAN, RS485;
- Operating Temperature: -10°C to +50°C;
- Enclosure Protection Rating: IP55;
- Round-trip efficiency: ≥96%;
- Dimensions (H/W/D): 233x585x298 mm;
- Weight: 38 kg;
- Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3;
- Applications: ON Grid / ON Grid + Backup / OFF Grid;
- Warranty: 10 years;
- Compatible inverters: BYD Battery-Box Premium HVS / HVM.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
