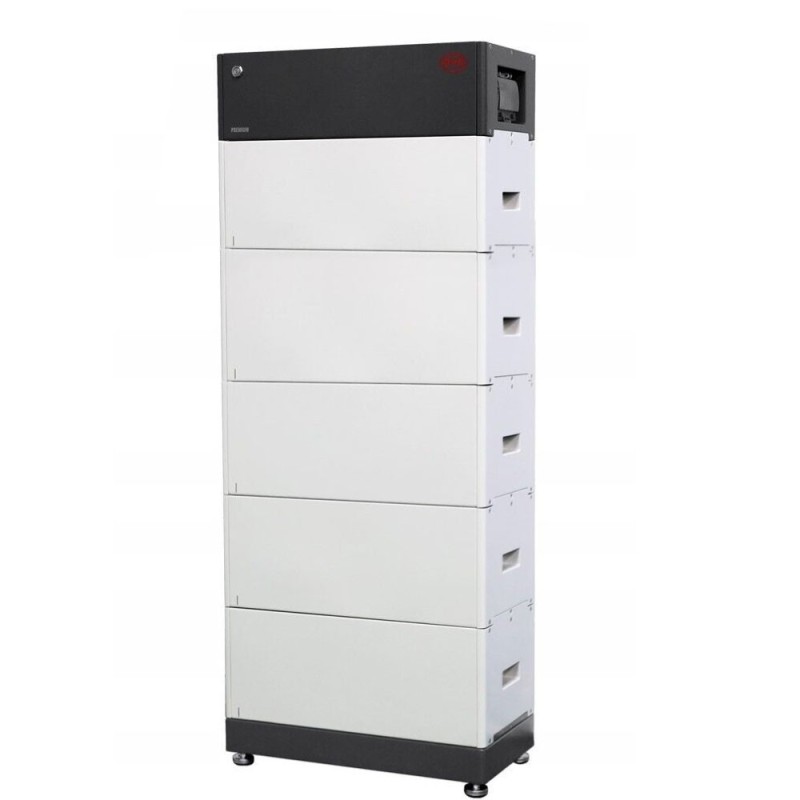

BYD Battery-Box HVS+ 12.8 12.8kWh 5 lithium Box-Batteries with BMS

BYD Battery-Box HVS+ 12.8 12.8kWh 5 lithium Box-Batteries with BMS

A "+" has now been added to BYD's latest generation of HVS high-voltage battery systems.
In addition to the familiar features and distinguishing features, the new HVS+ model features an improved BCU.
This can be flexibly used for HVB, HVS+, and HVM+ series battery modules. The new automatic SOC balancing calibration system eliminates the need to manually adjust the charge level during initial installation or system expansion.
The new wiring system for power and communication connectors for the BMS saves additional valuable time during installation.
System configuration is also facilitated by a new app for installers. An app for end customers is also available for convenient system monitoring.

Product advantages:
- Automatic battery module calibration during initial installation or system expansion
- Faster installation thanks to plug-in connectors

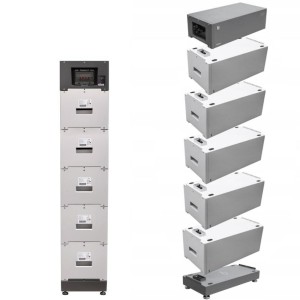

- Up to 5 storage modules per unit

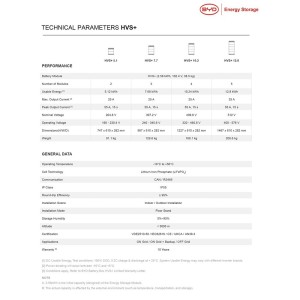

Product features:
- Battery capacity (usable): 12.8 kWh
- Storage type: high voltage
- Nominal voltage: 512.0 V
- Extension time window: unlimited
- Number of storage modules in a unit: 2 to 5
- Maximum number of towers that can be connected in parallel: 3
- Cell chemistry: LFP
- COM connection: RJ45
- BAT connection: MC4
- Protection class: IP55
- Dimensions: 1467 x 610 x 282 mm (H x W x D)
- Weight: 207.10 kg

Kit includes:
- 1 x BYD B-Box BCU HVM+/HVS+/HVB + Base (item 6861507)
- 5 x BYD HVS+ storage modules (item 6861506)

Combination with components from the previous HVS series is not possible.
Commissioning requires the new BYD Energy app with the latest firmware installed (from V1.28.0).
The RJ45 data bus termination connector included in the delivery must be fully wired during installation.
The HVS+ and HVM+ series are currently certified ONLY in combination with the KOSTAL PLENTICORE MP and PLENTICORE G3 inverters.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
