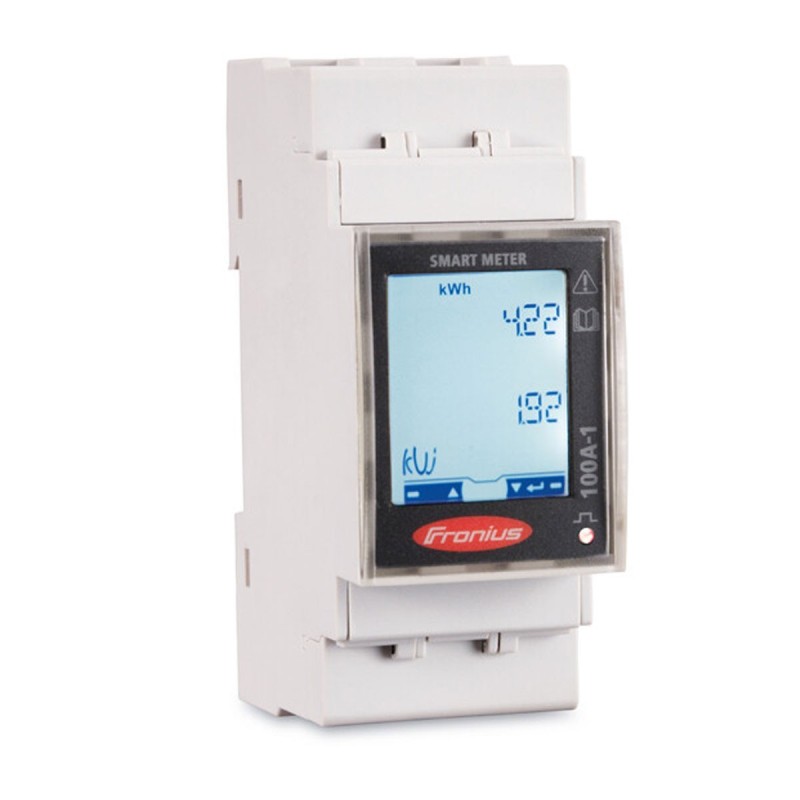

Fronius Smart Meter TS 100A-1 100A bidirectional meter

Fronius Smart Meter TS 100A-1 100A bidirectional meter

The Fronius Smart Meter TS is a bidirectional meter, which optimises self-consumption, records the load curve and controls the various
energy flows. Thanks to highly accurate measurements and rapid communication via the Modbus RTU interface, dynamic feed-in control
when feed-in limits are imposed is faster and more accurate than with the S0 meter.
Together with the Fronius Solar.web, the Smart Meter TS presents a clear overview of the power consumption. In combination
with the Fronius storage solutions, the device ensures a perfect coordination of various energy flows, which optimises the
entire energy management. The Fronius Smart Meter TS is ideally suited for use with the GEN24 Plus and Tauro, as well as
all Fronius inverters with the Fronius Datamanager 2.0.

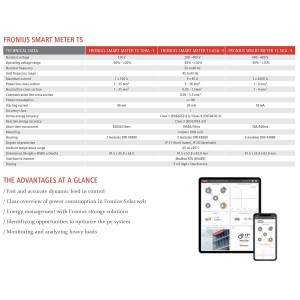

Technical Specification
Model: SMART METER TS 100A-1;
Nominal voltage: 230 V;
Operating voltage range: -30% - +20%;
Nominal frequency: 50 to 60 Hz;
Grid frequency range: 45 to 65 Hz;
Maximum current: 1 x 100 A;
Power line cross section: 1 - 25 mm²;
Neutral line cross section: 1 - 25 mm²;
Communication line cross section: 0.05 - 1.5 mm²;
Power consumption: <=1W;
Starting current: 40 mA;
Accuracy class: 1;
Active energy accuracy: Class 1 (EN 62053-21) / Class B (EN 50470-3);
Reactive energy accuracy: Class 2 (EN 62053-23);
Short-time overcurrent: 3000A/10ms;
Mounting: Indoors (DIN rail);
Housing: 2 modules DIN 43880;
Degree of protection: IP 51 (front frame), IP 20 (terminals);
Ambient temperature range: -25 to +65°C;
Interface to inverter: Modbus RTU (RS 485);
Display: 3 x 8 digit / Touchscreen;
Dimensions (Height x Width x Depth): 91.5x53.8x63 mm;
Weight: 0,160 kg.
