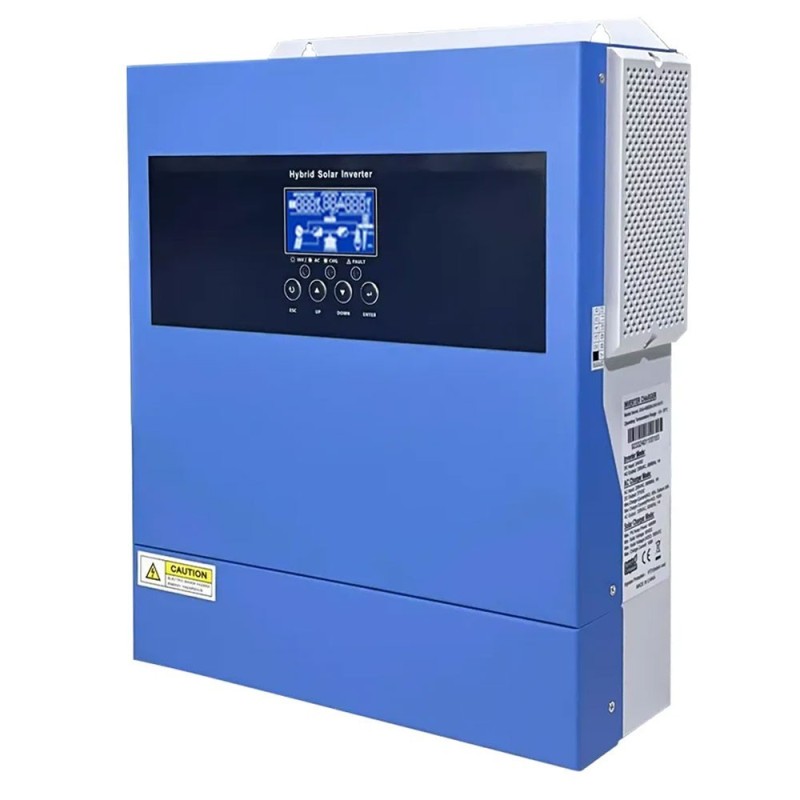

24V 4000VA All-in-One Off Grid Hybrid solar inverter at 230V MPPT 100A 500Vdc for 4000W photovoltaic

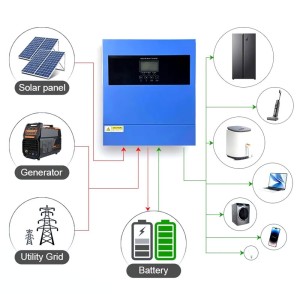

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 4000W for recharging the 24V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager. This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.
• Pure sine wave inverter.
• Power factor 1.0.
• High PV input voltage range 60Vdc-500Vdc.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Built-in Max 100A MPPT solar charge.
• Lithium Battery Activation.
• Compatible work with LifePO4 Battery via RS485.
• Capable to work without battery.
• Detachable dust cover for harsh environment.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• Automatic restart while AC is recovering.
• Support multiple output priority: UTL, SOL, SBU, SUB.
• EQ function to optimize battery performance and extend lifecycle.
Technical characteristics:
INVERTER OUTPUT
- Rated Power: 4000 VA/3600 W;
- Surge Power: 7200 VA/6000 W;
- Waveform: Pure sine wave;
- AC Voltage Regulation (Batt.Mode): 230 VAC±5%;
- Inverter Efficiency (Peak): 90-93 %;
- Transfer Time: 15ms (For Personal Computers) 20ms(For Home Appliances).
AC INPUT
- Voltage: 230 VAC;
- Selectable Voltage Range: 170~280 VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50 Hz/60 Hz (Auto sensing).
BATTERY
- Nominal voltage: 24 VDC;
- Floating Charge Voltage: 27 VDC;
- Overcharge Protection: 33 VDC.
SOLAR CHARGER & AC CHARGER
- Solar charger type: MPPT;
- Maximum PV Array Power: 4000 W;
- MPPT Range @ Operating Voltage: 120~450 VDC;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- Maximum Solar Charge Current: 120 A;
- Maximum AC Charge Current: 100 A;
- Maximum Efficiency: 98%.
OTHER
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 50 °C;
- Storage Temperature: -15 °C - 60 °C.
MECHANICAL SPECIFICATION
- Dimension, WxHxD: 119x313x422 mm;
- Net Weight: 10 kg.
