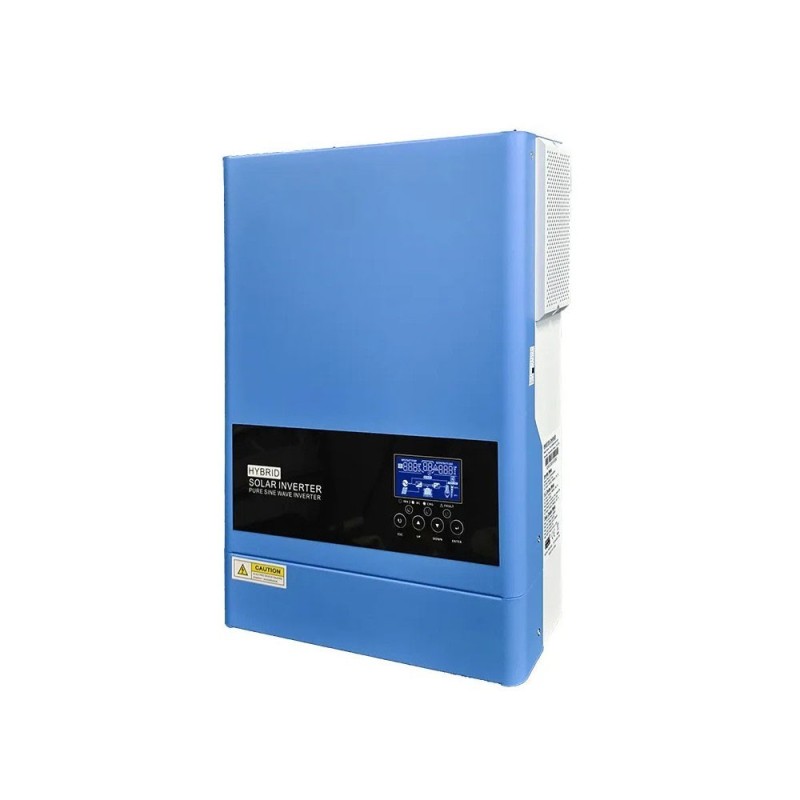

TopSolar Hybrid Solar Inverter 48v 6200VA to 230v MPPT 80A 500Vdc for 6400w PV

TopSolar Hybrid Solar Inverter 48v 6200VA to 230v MPPT 120A 500Vdc for 6400w photovoltaic

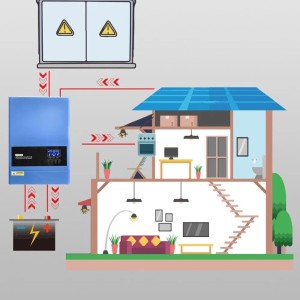

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 6000w for recharging the 48V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager; This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.

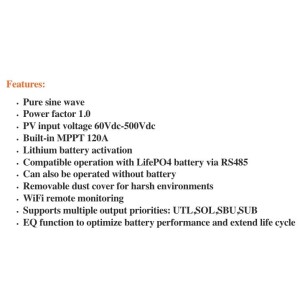

Main features
• Pure Sine Wave.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Supply the load from the grid or PV, even if the battery is not available.
• Configurable AC/PV output usage timer and priority.
• Integrated MPPT Solar Controller.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120V DC - 500V DC) 120A MPPT SCC.
• Increase to 2X continuous power for 5 seconds for engine loads.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• 3-stage intelligent battery charger to optimize battery performance.
• Automatic restart while AC is recovering.

Technical characteristics
Inverter output
- Continuous Power: 6200VA/5500W;
- Peak Power: 12000VA/10000W;
- Wave Type: Pure Sine Wave;
- AC Voltage Regulation: ±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (for Personal Computers), 20ms (for home loads).
AC input
- Voltage: 230 Vac;
- Selectable voltage range: 170∼280 Vac (for Personal Computer) 90∼280 Vac (for household loads);
- Frequency: 50Hz - 60Hz (automatic detection).
DC Input (Battery)
- Nominal voltage: 48 Vdc;
- Charging Voltage: 40-60 Vdc;
DC Solar Controller and Charger and AC
- Maximum photovoltaic power: 6400W;
- Optimal photovoltaic voltage for MPPT: 120 Vdc ~ 450 Vdc;
- Maximum open circuit photovoltaic voltage: 500 Vdc;
- Maximum charging current: 120A;
- Maximum efficiency: 98%.
Mechanical Specifications
- Measurements: 438x295x105h mm;
- Weight: 9 kg.
Working conditions
- Humidity: 5% to 95% relative humidity;
- Operating temperature: from 10 °C to +50 °C;
- Storage temperature: -15 °C to +60 °C.
