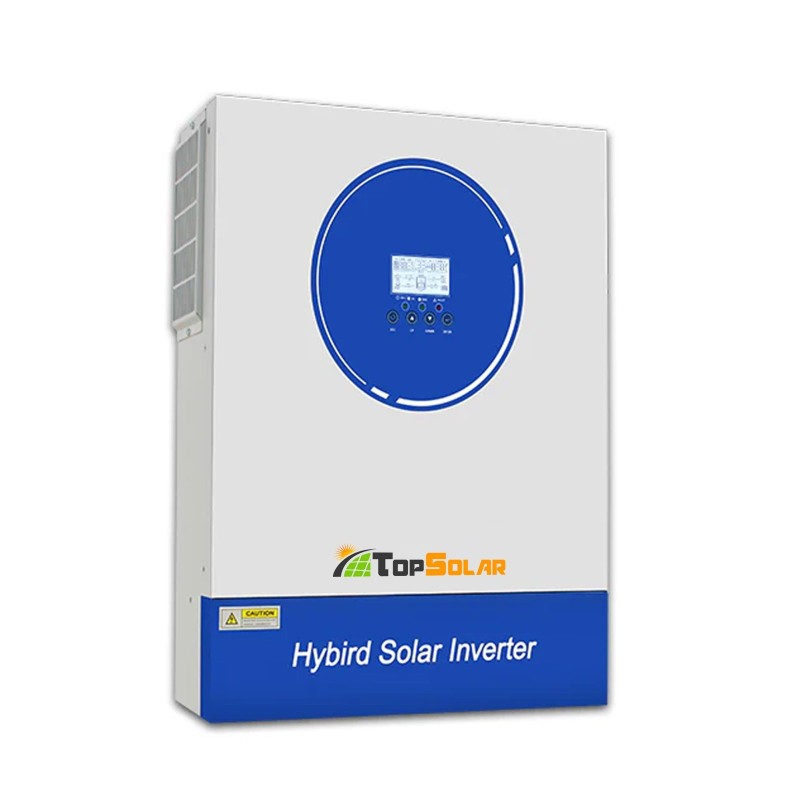

48V 11000W All-in-One Off Grid Hybrid solar inverter at 230V MPPT 100A 500Vdc
The Topsolar 11000W pure sine wave inverter efficiently converts 48V DC to 220V-230V AC. It provides clean, stable, and low-interference power output for all appliances, ensuring their long-term stable operation.
Our inverter operates without the need for a battery, providing you with instant and stable power supply. This eliminates the worry of battery maintenance and replacement costs, saving you money and extending the lifespan of the equipment.
Designed for efficient energy conversion, our inverter supports up to 500Vdc direct current input voltage, perfectly suited for large-scale photovoltaic systems. Whether for residential, commercial, or industrial applications, our inverter delivers stable and reliable power support.
Comprehensive protection includes under-voltage/over-voltage, overheat protection, overload, and short circuit protection for connected devices, ensuring safety and reliability.

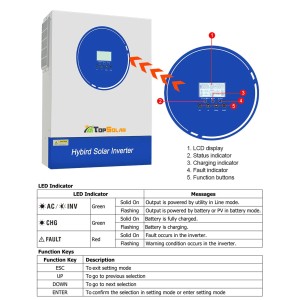

The monitoring LCD screen provides real-time status of the battery, inverter, and load, making it simpler and more convenient to use.
• Cannot be connected in parallel
• Lithium battery activation function by PV or Utility
• Compatible work with lifepo4 battery via Rs485
• Pure sine wave
• Power factor 1.0

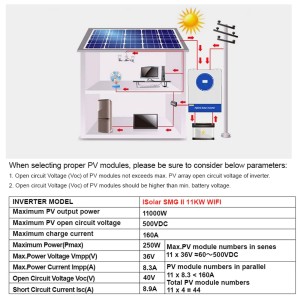

• PV input Voltage 60Vdc-500Vdc
• Built-in MPPT 120A

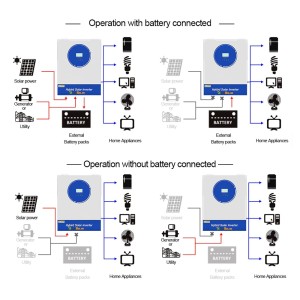

• Capable to work without battery
• Detachable dust cover for harsh environment
• WiFi remote monitoring optional
• Support multiple output priority: UTL,SOL,SBU, SUB
• EQ function to optimize battery performance and extend lifecycle

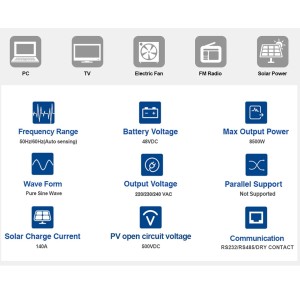

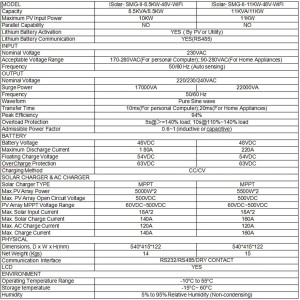

Technical characteristics:
- Rated Power: 11 kVA/11 kW;
- Max PV Input Power: 11 kW;
- Parallel Capability: NO;
- Lithium Battery Activation: yes (by PV or utility);
- Lithium Battery communication: Yes (RS485)
AC OUTPUT
- Nominal Voltage: 220/230/240VAC;
- Surge Power: 22000 VA;
- Frequency: 50 Hz/60 Hz;
- Waveform: Pure sine wave;
- Transfer Time: 10ms (For Personal Computers) 20ms(For Home Appliances).
- Inverter Efficiency (Peak): 94 %
AC INPUT
- Voltage: 230 VAC;
- Selectable Voltage Range: 170~280 VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50 Hz/60 Hz (Auto sensing).
BATTERY
- Battery voltage: 48 VDC;
- Max Discharge Current; 220A;
- Floating Charge Voltage: 54 VDC;
- Overcharge Protection: 63 VDC
SOLAR CHARGER & AC CHARGER
- Solar charger type: MPPT;
- Maximum PV Array Power: 5500 Wx2;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- PV Array MPPT Range Voltage: 60~500 VDC;
- Max Solar Input Current: 180 A x2;
- Maximum Solar Charge Current: 160 A;
- Maximum AC Charge Current: 120 A;
- Maximum Efficiency: 98%
MECHANICAL SPECIFICATION
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 55 °C;
- Storage Temperature: -15 °C - 60 °C;
- Dimension, WxHxD: 540x415x122 mm;
- Net Weight: 15 kg.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
