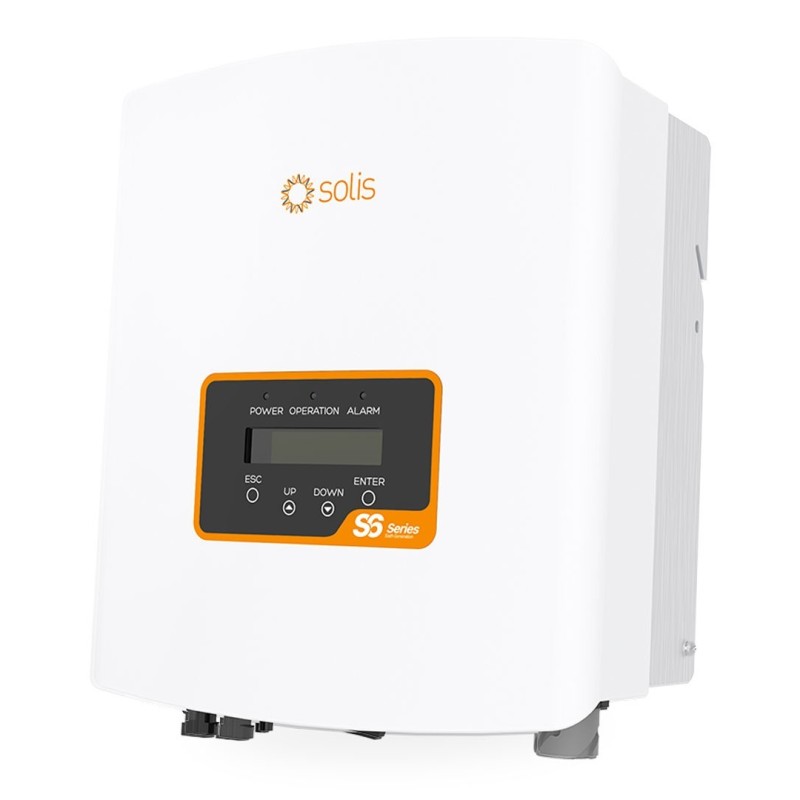

Solis S6-GR1P3K-M Mini Inverter Single Phase 3kW
Single-phase Solis-Mini string inverter series are the leaders of green energy in small residential and commercial rooftops, and adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency superior to the paramount conversion of the industry which is up to 97.3% at most. Meanwhile they adopt multiple protection functions, and extremely high switching frequency technology.
✓ Maximum efficiency 97.3%
✓ String current up to 14A
✓ Precise MPPT algorithm
✓ Compact and lightweight
✓ Integrated Export Power Management
✓ Integrated AFCI (Arc Protection)
✓ Simple and flexible network connection
✓ Ultra high frequency switching technology
✓ Wide operating range and low starting voltage
✓ Export Energy Manager
✓ HF SWITCH High switching frequency
✓ WiFi/GPRS Real-time tracking
✓ AFCI PDC arc fault circuit protection
✓ App Store IOS/Android

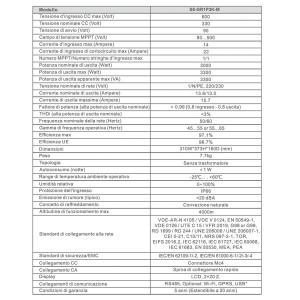

Technical specifications
DC input
Maximum recommended photovoltaic power: 4.5 kW
Absolute maximum voltage: 600 V
Rated Voltage: 330V
Starting Voltage: 90V
MPPT Voltage Range: 80-500V
Maximum input current: 14A
Maximum short circuit current: 22A
Maximum MPPT number/Number of strings: 1/1
AC output
Rated Output Power: 3kW
Maximum apparent output power: 3.3 kVA
Maximum output power: 3.3 kW
Rated mains voltage: 1/N/PE, 220V / 230V
Rated Grid Frequency: 50-60Hz
Rated Mains Output Current: 11.4A / 10.9A
Maximum output current: 13A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Efficiency
Maximum efficiency: 97.1%
EU efficiency: 96.7%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload Protection: Yes
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
Integrated DC switch: Optional
Integrated AFCI (DC Arc Fault Circuit Protection): Yes (Activation Required)
General data
Dimensions (WxHxD): 310x373x160 mm
Weight: 7.7kg
Topology: Without transformer
Self-consumption (night) (night): <1 W
Operating environment temperature range: -25 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Natural convection
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard: G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS
