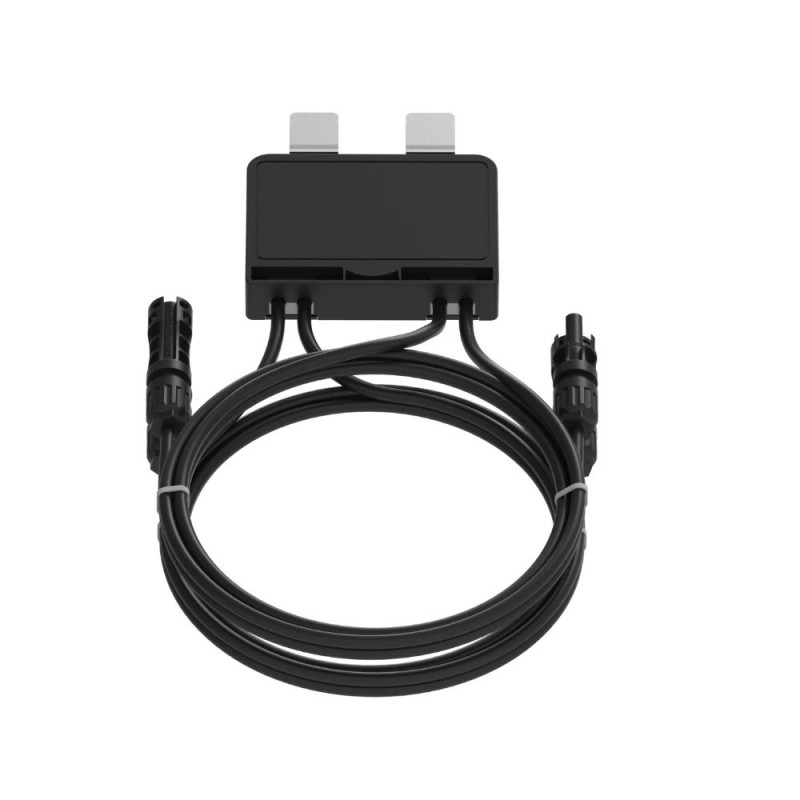

Deye SUN-XL02-A PV optimizer 700W 80V 15A MC4

Deye SUN-XL02-A PV optimizer 700W 80V 15A MC4

Power optimizer to improve the efficiency and performance of photovoltaic systems. Compatible with panels up to 700W of power. Maximizes electricity production even in the presence of partial shade. Allows you to identify problems or faults with greater precision. Equipped with MC4 connector. IP68 protection degree ideal for outdoor use in any weather condition. Maximum length of input cables 70cm and output cables 100cm.

Increase in power generation capacity:
Module-level maximum power point tracking (MPPT) can increase power generation by 5% to 25%.
Monitoring:
Real-time monitoring of the operation status of each photovoltaic module allows for timely detection of issues and precise
troubleshooting.
Stable and reliable communication:
Using photovoltaic cables or power line carrier communication eliminates the need for additional communication cables.

Technical specifications
Code: 605117.SH
Maximum input power: 700W
Maximum input voltage: 80V
MPPT voltage range: 12-80V
Maximum input current: 15A
Maximum current output: 17A
System voltage: 1000V/1500V
Peak conversion efficiency: 99.5%
Installation specifications dimensions: 105×105×20mm
Weight: 500g
Cable: 4.0mm² input 70cm output 100cm customizable
Connector: MC4 Or Compatible with MC4
Operating temperature range: -40℃ ~ +85℃
Level of protection: IP68
Communication mode: nothing

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
