Victron EV Charging Station 22kW EVC300400300 1-Phase 3-Phase Display LCD touchscreen

Victron EV Charging Station 22kW 1-Phase 3-Phase Display LCD touchscreen

The Victron Energy EV Charging Station is designed for both single-phase and three-phase operation, delivering up to 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.

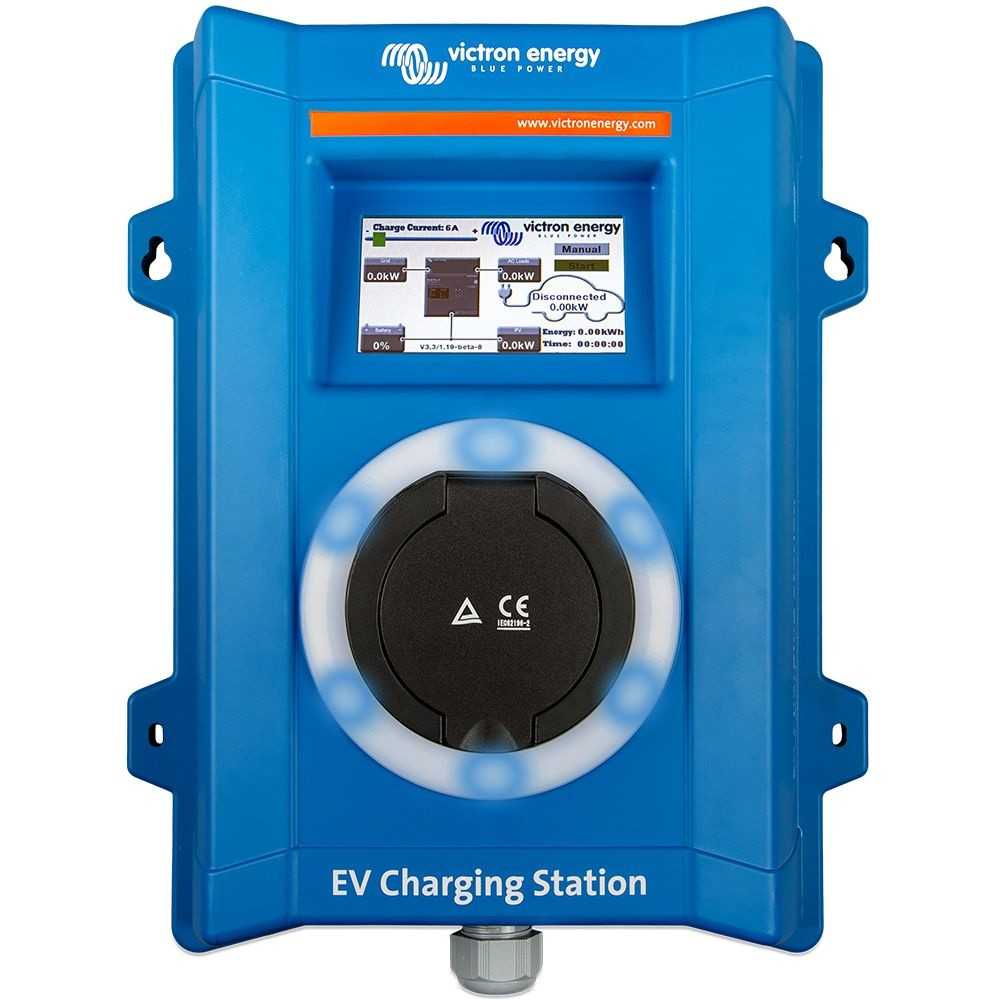

The charging station can be monitored and controlled via the integrated LCD touchscreen. For safe installation, an external residual current circuit breaker (RCD) is required (not included). A 6 mm² cable cross-section is recommended for the power supply cable, and installation should always be carried out by a qualified electrician.

Key Features
Up to 22 kW charging power
Single-phase and three-phase operation
Built-in Wi-Fi connectivity
Integrated LCD touchscreen
Programmable LED light ring for instant status indication
Configurable charging cost calculator (price per kWh)
Two operating modes available
Compatible with Victron GX devices
Integration with the Victron VRM Portal

Operating Modes
Manual Mode
Manual mode allows the charging current to be adjusted between 6 and 32 A.
Charging power can be controlled through:
the integrated LCD touchscreen using the on-screen slider;
the built-in web interface.

This mode allows the charging process to be started or stopped manually whenever a vehicle is connected to the charging station.

Automatic Mode
Automatic mode detects when surplus solar energy is available and uses only this excess energy to charge the vehicle, maximising self-consumption and reducing electricity exported to the grid.

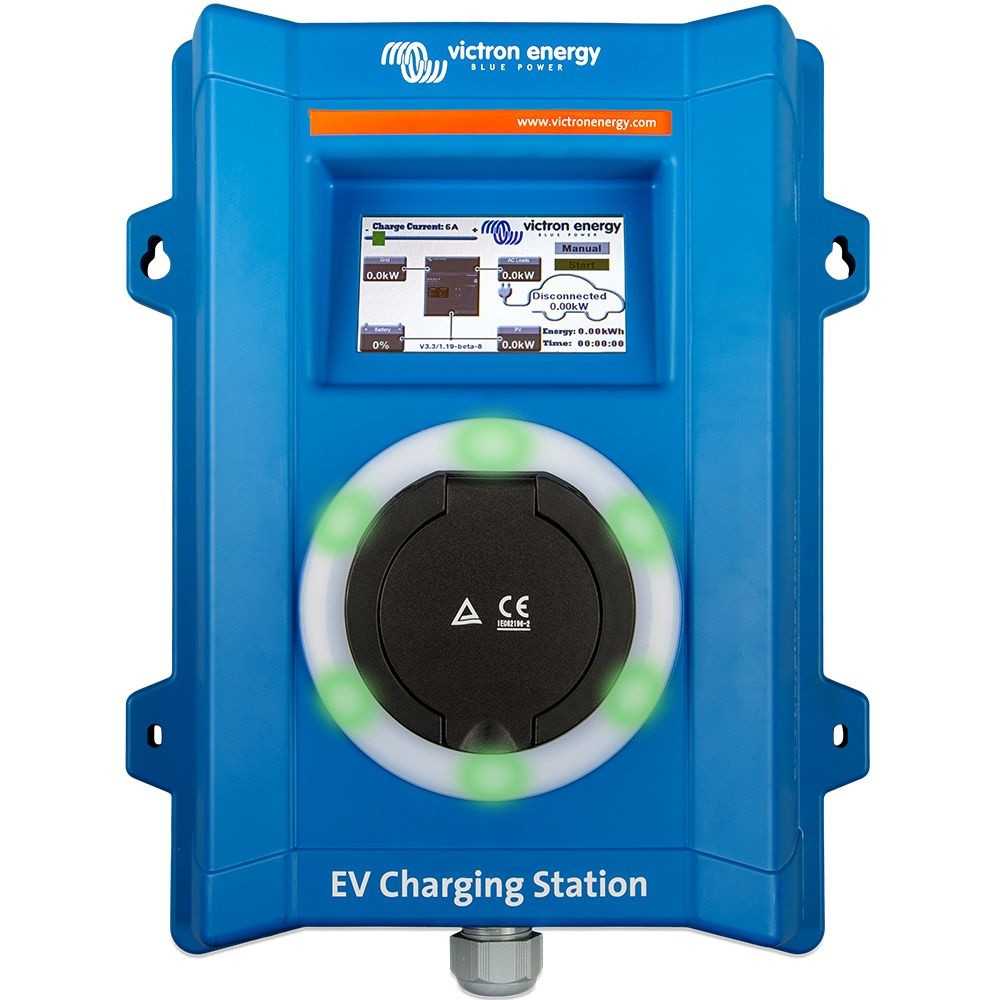

Programmable LED Light Ring
The fully programmable LED light ring surrounding the charging connector provides an instant visual indication of the charger's operating status.

Through the web interface, the light ring can be customised with different lighting effects to indicate various operating conditions, including:
Charging
Charge completed
Vehicle disconnected
Other operating states

A total of 55 different lighting effects are available, allowing the charging status to be recognised even from a distance.

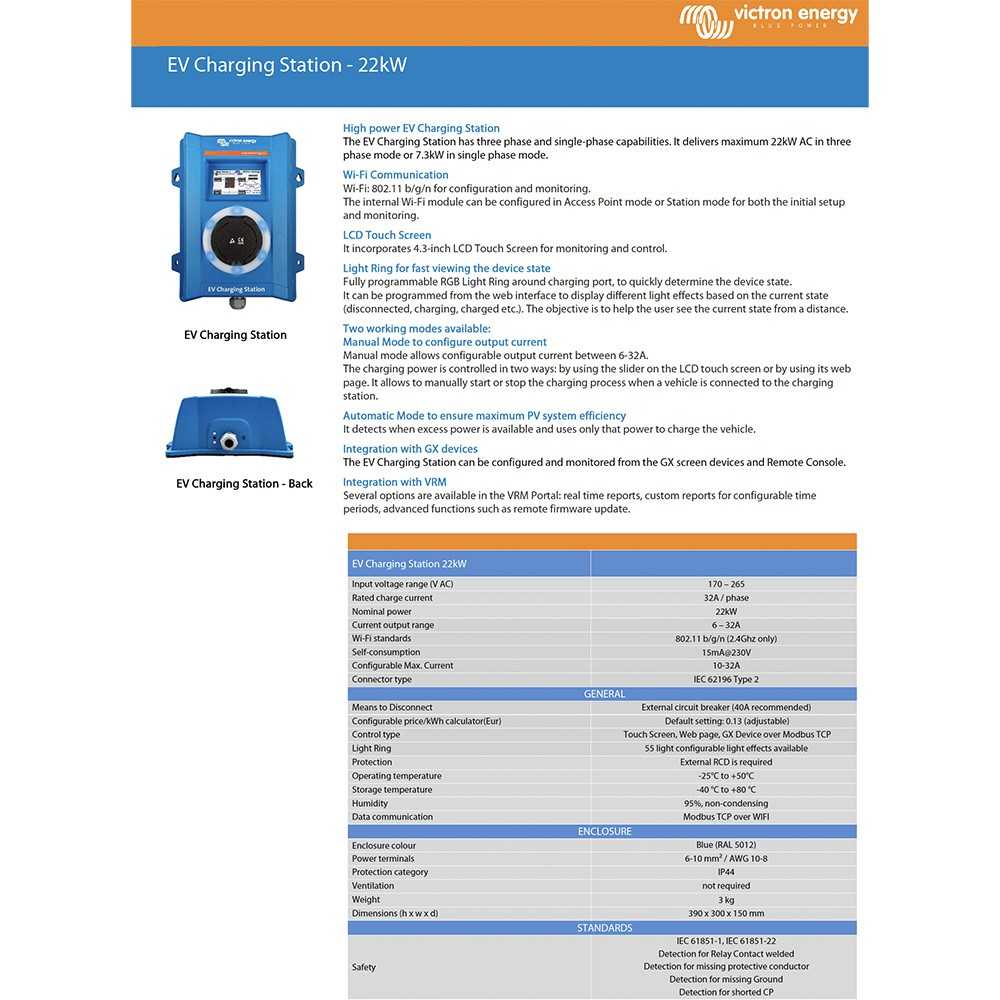

Technical Specifications
Input Voltage: 170–265 V AC
Nominal Charging Current: 32 A per phase
Maximum Charging Power: 22 kW
Adjustable Output Current: 6–32 A
Standby Power Consumption: 15 mA at 230 V
Operating Temperature: -25°C to +50°C
Protection Rating: IP44
Weight: 3 kg
Dimensions: 390 × 300 × 150 mm
