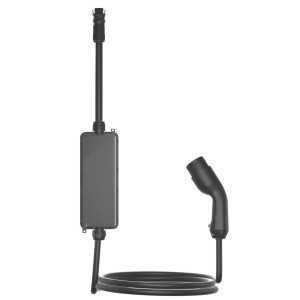

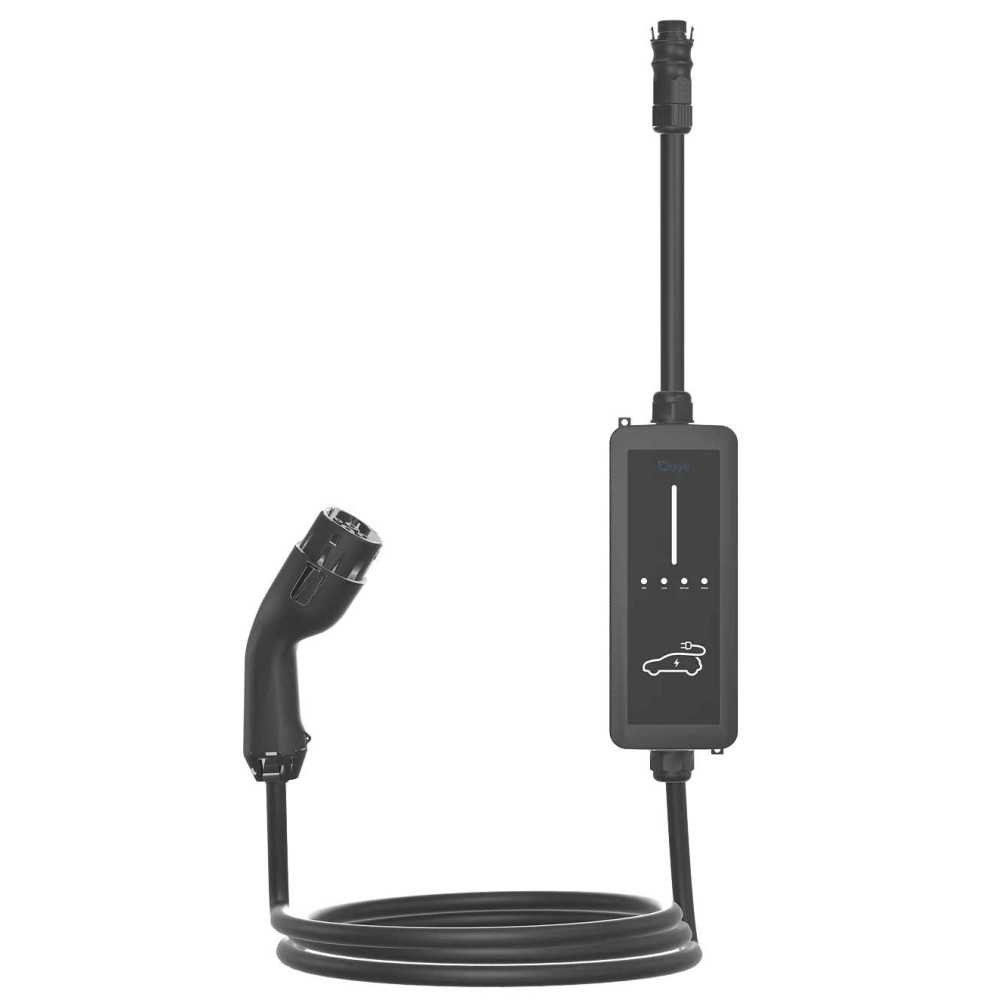

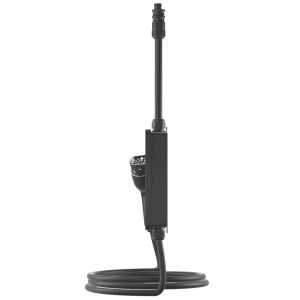

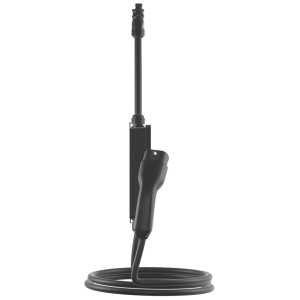

The Deye SUN-EVSE22K01-EU-AC is a smart AC charging station for electric vehicles, designed for both residential and professional applications. Compatible with single-phase and three-phase power supplies, it provides charging power up to 7 kW in single-phase and 22 kW in three-phase, with a rated current of up to 32 A. Thanks to integrated WiFi and Bluetooth connectivity, the wallbox can be managed and monitored via the Deye Cloud App, providing simple and intuitive control over the charging process.

Smart Charging with a Photovoltaic System

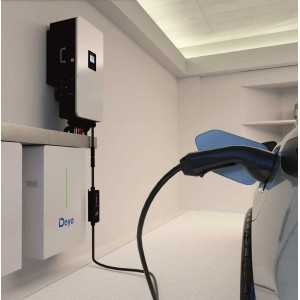

The wallbox features integrated LoRa communication for connection with compatible Deye hybrid inverters. It connects to the system on the AC side and, via LoRa communication, enables intelligent EV charging management according to photovoltaic production and available power.
For LoRa communication, the inverter must be equipped with the Deye SUN-SMART-TX01 module, where required by the specific inverter model.
Among the available operating modes, Solar Energy Only is designed to prioritise the use of energy generated by the photovoltaic system for EV charging, helping to increase solar self-consumption.
Additional functions include Plug & Play mode, scheduled charging and intelligent power management.

Safety and Installation
Designed for reliable operation even in outdoor environments, the Deye SUN-EVSE22K01-EU-AC features an IP66 protection rating.
It also incorporates multiple electrical safety systems, including protection against overvoltage, overcurrent, short circuits, DC leakage, ground faults and overheating.

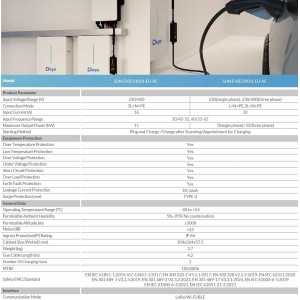

Main Features
Smart AC charging station for electric vehicles
Maximum power: 22 kW three-phase / 7 kW single-phase
Power supply: single-phase and three-phase
Rated current: 32 A
Connector: Type 2 – IEC 62196
Integrated 4.2 m charging cable
Integrated WiFi and Bluetooth
Integrated LoRa communication
Management and monitoring via Deye Cloud App
Plug & Play mode
Scheduled charging
Solar Energy Only mode with compatible Deye systems
Intelligent available power management
Protection rating: IP66
Integrated Type II SPD
Integrated 6 mA DC residual current protection
Suitable for indoor and outdoor installation
Dimensions (W × H × D): 104 × 264 × 57.5 mm
Weight: 3.7 kg
Warranty: 5 years

The Deye SUN-EVSE22K01-EU-AC provides a complete solution for users who want to integrate electric vehicle charging with a Deye photovoltaic system, helping to optimise the use of available solar energy.
