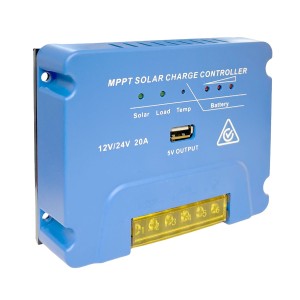

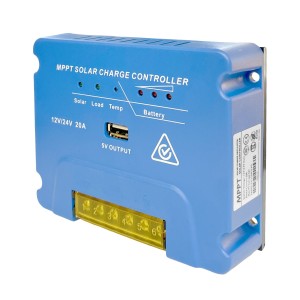

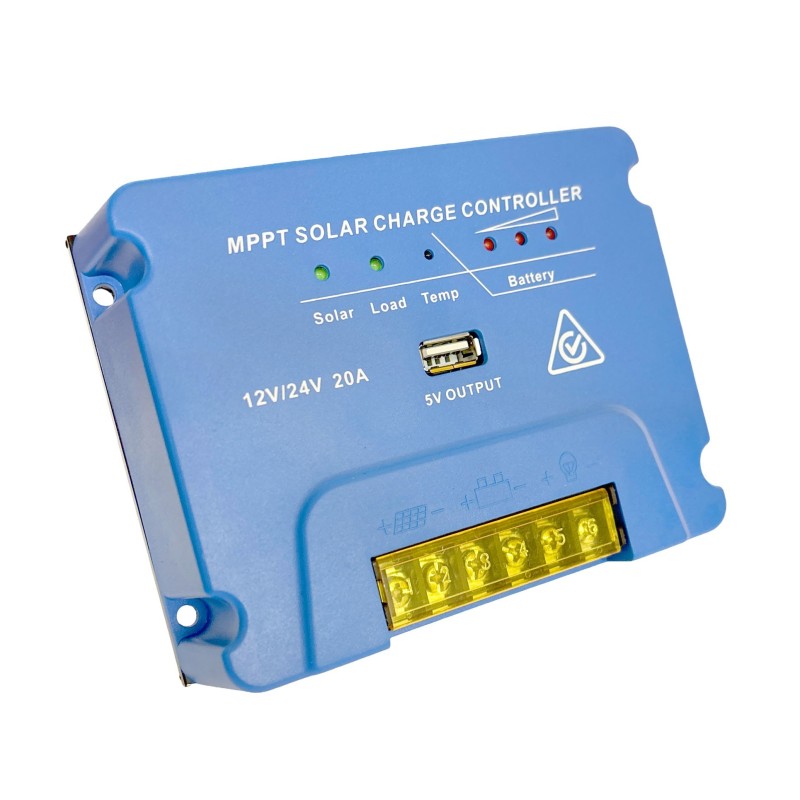

20A 12/24V MPPT Solar Charge Controller with USB output CPY-2420

20A 12/24V MPPT Solar Charge Controller

This is a 20A charge controller for 12V (260W), 24V (520W) batteries with the research of the maximum MPPT point of the PV module. You can install also PV modules for on grid applications or amorphous silicon type. Simple and intuitive, it is the complete solution for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
This solar charge regulator has a research circuit for maximum PV module power (MPPT): regardless of the battery voltage and its charge status, it makes the PV module work at its maximum power point, maximizing the energy that comes from the module and then loading into the battery.

Technical data:
- Rated Charge current: 20A;
- Rated Discharge current: 20A;
- Max input power: 12V (260W), 24V (520W);
- MPPT efficiency: 99%;
- Rated voltage: 12V/24V out work;
- Overload, short circuit protection: ≥ 1.5 rated current;
- Self-consumption: <10mA;
- Over voltage protection: 16V (12V), 32V (24V);
- Voltage of stop charging: 14.7V (12V), 29.4V (24V);
- Discharge recovery voltage: 12V, 24V;
- Over discharge voltage: 10.8V (12V), 21.6V (24V);
- USB output: 5V 1A;
- Operating temperature: -35 + 55 °C;
- Dimensions: 131x99.5x29.5 mm;
- Weight: 300 g.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
