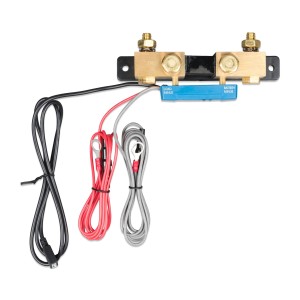

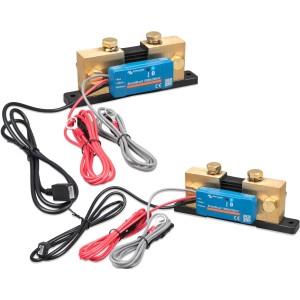

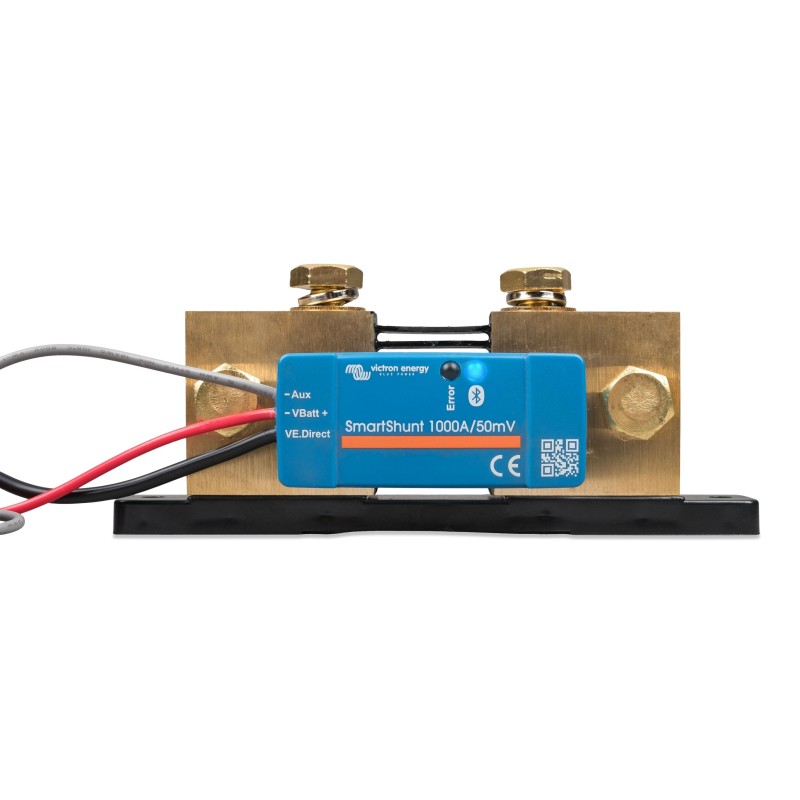

Victron SmartShunt IP65 1000A 50mV shu065150050 battery monitor

Victron SmartShunt IP65 1000A 50mV shu065150050 battery monitor

The Smart Battery Shunt
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences from the BMV-712 Battery Monitor
- Alarms not visible or audible (alarms are only visible via the VictronConnect app or a GX device).
- Without programmable relay.
- Waterproof.
- The shunt is attached to the battery monitor unit.

Technical data
-    Power supply voltage range: 6.5-70v DC
-    Current consumption: <1 mA
-    Input voltage range, additional battery: 6.5-70v DC
-    Battery capacity: 1-9999 Ah
-    Operating temperature range: -40°C - +50°C
-    Temperature measuring range: -20°C - +50°C
-    Dimensions: 68 x 168 x 75 mm
-    Protection class IP65
