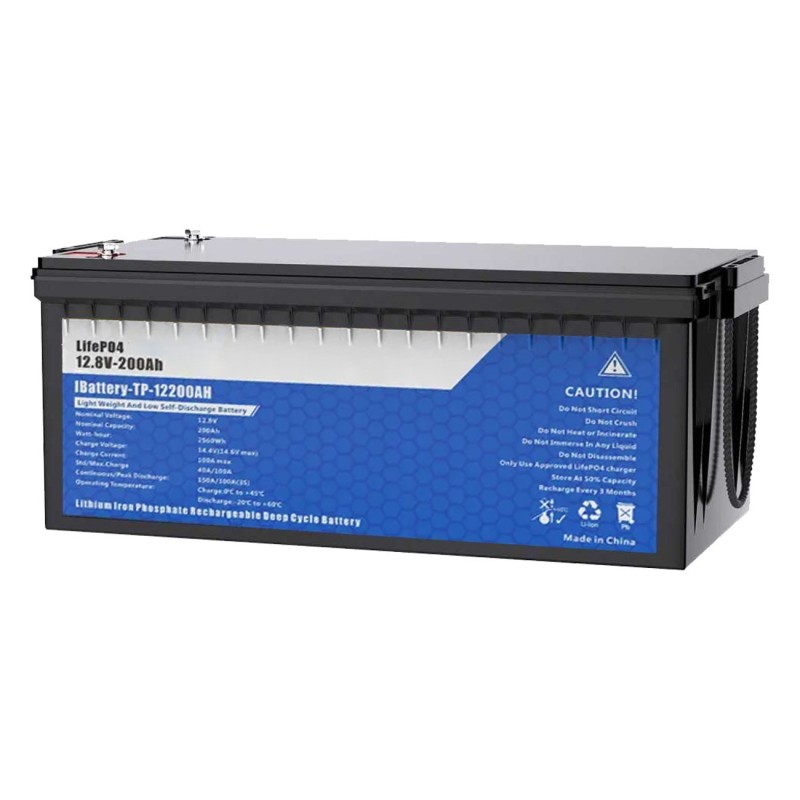

12V 200Ah LiFePO4 Battery With 100A BMS 12.8V 2560Wh
Made with the safest lithium iron phosphate battery technology, the LiFePO4 12V 200Ah Batteries offer exceptional durability and a longer life cycle. What is surprising is the possibility of carrying out over 3000 charge and discharge cycles, guaranteeing use for at least 10 years. Equipped with a battery management system (BMS), it is able to operate efficiently while ensuring safety and reliability.
Lighter, smaller, more powerful
The LiFePO4 12V 200Ah batteries are lighter, more compact, and more powerful than traditional options. Their slim design makes them easy to handle and install, while their advanced core delivers long-lasting, reliable energy. With a high capacity of 100Ah, you can enjoy greater freedom and peace of mind, without worrying about running out of power.
The importance of the battery management system (BMS)
To protect your battery pack, ensure a stable energy supply and offer you excellent energy management, our Battery Management System (BMS) is here to support you. From everyday needs to special situations, our BMS offers comprehensive protection for lithium battery packs, ensuring a stable case for your power needs.
• Integrated battery management system
• After 3000 cycles with 80% DOD, 80% capacity still remains
• Lifespan of at least 15 years without the need for maintenance
• Fully-fledged replacement for lead-acid batteries
• Eco-friendly, lead-free, acid-free
• Compatible with Victron Energy, Growatt, Green Cell, etc.
Smart long-term solution
Despite the higher price, LiFePo4 batteries are characterized by much lower operating costs, which means that the purchase pays for itself very quickly. Over its lifetime, a LiFePo4 battery costs more than 100% less than a standard AGM battery, making it a worthwhile investment and a smart long-term solution.
Electrical performance:
Battery technology: LiFePO4 (Lithium Iron Phosphate)
Nominal tension: 12.8 V
Capacity (Ah): 200 Ah
Nominal energy: 2560 Wh
Capacity: 100%
Cycle time: >3000 cycles
Lifespan: >15 years
Charge/Discharge performance:
Charging voltage: 14.4 V (maximum 14.6 V)
Maximum continuous charge/discharge current: 100 A
Peak discharge current @10S: 250 A
Performance in temperature:
Discharge Temperature: -20 ~ +60 °C
Charge Temperature: 0 ~ +45 °C
Storage Temperature: -5 ~ +35 °C
High Temperature Cut-Off: 65 °C
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Terminal pole: F12 (M8 internal thread)
Case Material: ABS
Enclosure Protection: IP65
Dimension (LxWxH): 500x240x220 mm
Weight: 23 kg.
