Deye BOS-G Battery 30kW - 6x5.12kW + HVB750V/100A + rack 13 HV Battery.
Key Features:
High-quality LiFePO4 cell chemistry for increased safety and longevity
Modular design with capacities ranging from 15.36 kWh to 61.44 kWh
Flexible system voltage options from 153.6 V to 614.4 V
Intelligent battery management system (BMS) for optimum performance and protection
Compact and lightweight design for easy installation and maintenance
10-year warranty for peace of mind
The BOS-G series uses advanced LiFePO4 cell technology, known for its superior thermal stability, high cycle life and excellent safety profile. Each battery module has a nominal capacity of 100 Ah and an energy of 5.12 kWh, allowing you to tailor your system to perfectly match your energy storage requirements.
With a recommended depth of discharge (DOD) of 90% and a cycle life of ≥6000 cycles at 25°C, the BOS-G Series ensures maximum usable energy and long-term performance. The system also features a wide operating temperature range of -20°C to 55°C, making it suitable for various environments.

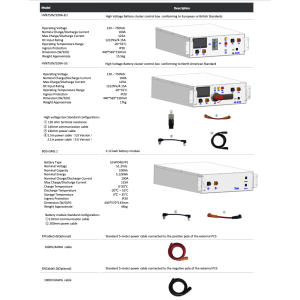

The BOS-G Series is equipped with a high voltage box (HVB750V/100A) that allows for seamless integration with your existing power system. The high voltage box supports an operating voltage range of 120-750V DC and a maximum charge/discharge current of 125A, ensuring efficient power transfer and compatibility with a wide range of inverters and chargers.
Safety is a top priority with the BOS-G Series. The system features multiple levels of protection, including overvoltage, undervoltage, overcurrent, short circuit and temperature monitoring. The IP20-rated enclosure provides protection from dust and debris, while built-in status indicators keep you informed of the system's operating status.

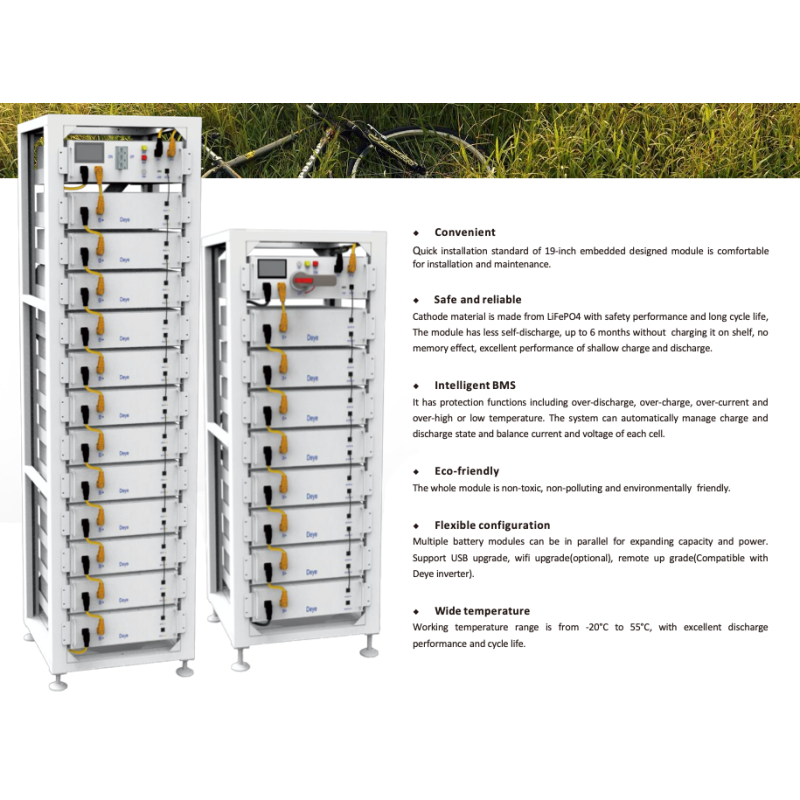

High-Voltage Capacity: Reliable backup for homes and businesses
Quick Installation: Fits standard 19-inch racks for easy setup
Safety First: LiFePO4 technology ensures safety and long life
Eco-Friendly: Non-toxic, non-polluting materials
Scalable: Expandable capacity by connecting multiple modules
Remote Upgrade: USB and Wi-Fi upgrade capabilities
Wide Range: Operates in temperatures from -20°C to 55°C
Long Life: Over 6000 cycles at 90% Depth of Discharge
