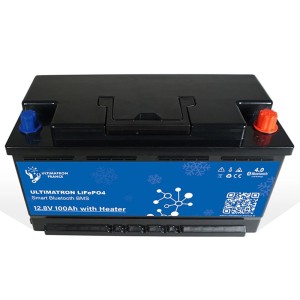

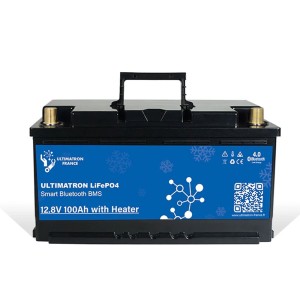

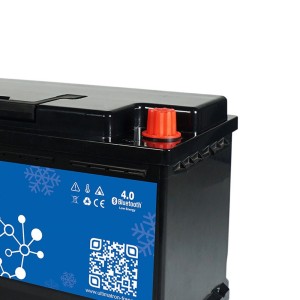

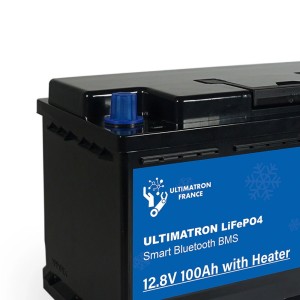

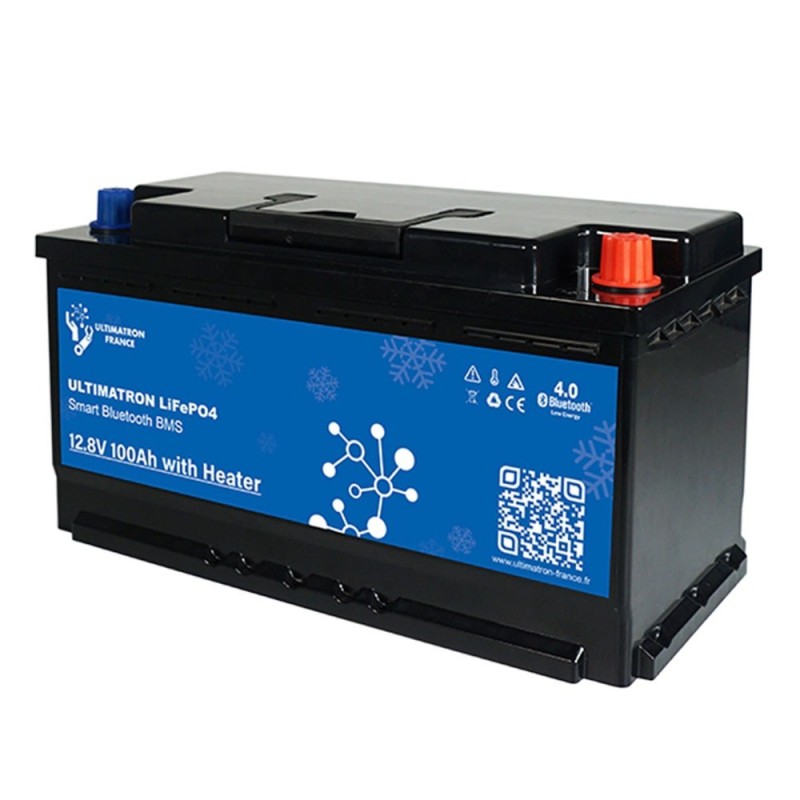

Ultimatron LiFePO4 12V 100Ah ULS-12-100H Lithium Battery BMS Smart Bluetooth Camper Van

Ultimatron ULS-12-100H LiFePO4 Lithium Battery 12.8V 100Ah with BMS Smart Bluetooth for mounting underseat of camping car

Direct shipping from the Europe Warehouse, delivery in about 10-15 days throughout Europe.

Ultimatron ULS-12-100H LiFePO4 battery is definitely the best alternative to 12.8V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.
The integrated heating function starts automatically at temperatures below 0°C when an external charging current (around 7A)is applied. The integrated heating function will not consume the energy from the battery. Integrated Heating foils, the battery can be charged at the extreme environment in -35°C.

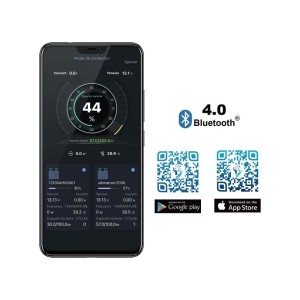

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles/wheelchairs and cleaning machines are increasingly equipped.
Series and parallel connection for 12V, 24V, 36V, 48V applications.

• Winterproof thanks to integrated heating
• Extremely powerful
• Class A battery cells
• High stability even under extreme loads
• Low and constant charge and discharge efficiency
• Integrated battery management system (BMS)
• Monitoring via Bluetooth 4.0 on smartphone or app
• Special design for under-seat
• Integrated heating mat (heating)
• 5-year manufacturer's warranty.

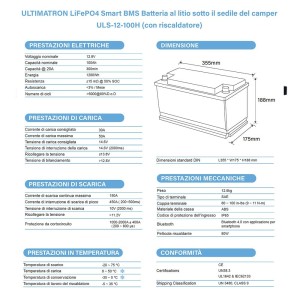

Technical features:
- Model: ULS-12-100H;
- Battery type: Lithium Iron Phosphate LiFePO4;
- Capacity: 100 Ah;
- Rated voltage: 12.8 V;
- Number of cycles: over 6000 with 80% DOD discharge;
- Nominal energy: 1280 Wh;
- Recommended Charge Voltage: 14.6 V;
- Recommended/Maximum Charge current: 30 A/50 A;
- Maximum continuous discharge current: 150 A;
- Peak discharge cut-off current: 450 A (200 ~ 500 ms);
- BMS: integrated with Bluetooth 4.0;
- Operating voltage: 10.0 - 14.6V;
- Discharge operating temperature: -20 ~ 75 °C;
- Charging operating temperature: 0 ~ 50 °C;
- Heater working temperature: -35 ~ °C 5 °C;
- Storage temperature: -5 ~ + 35 ℃;
- Degree of protection: IP65;
- Connection terminals: M8 hexagonal head screw;
- Dimensions (LxWxH): 355x175xh188 mm;
- Weight: 12.6 kg;
- Certifications: CE, UN38.3, UL 1642, IEC62133;
- Warranty: 5 years.

Conditions for series and parallel connection
The batteries must be of the same batch and of the same model. Before connecting the batteries in series or parallel, please charge them fully.

ATTENTION:
• Ultimatron LiFePO4 batteries can be connected both in series and in parallel in the maximum number of 4 units.
• Ultimatron batteries cannot be used as engine starter batteries.
If charged by alternators (campers and other vehicles) it is advisable to install a lithium battery charger.
• The BMS does not cut currents above 50A but the battery wears out above this value first.
